135-3543 - Exmark Bagger for 42" Quest Mower (SN: 402082300 - 404314158) (2018) Bagger Assembly Parts Diagram

Bagger for 42" Quest Mower

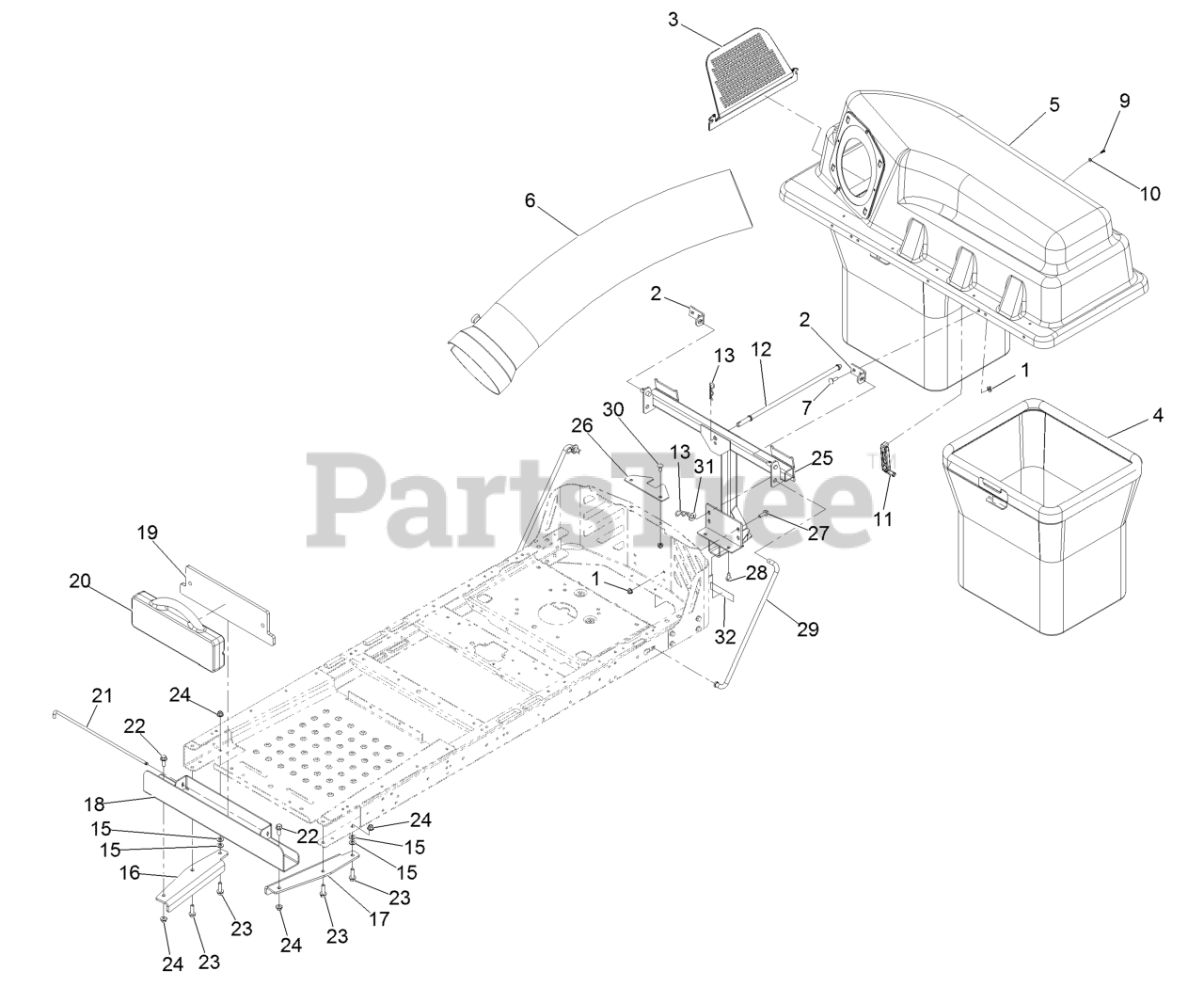

Bagger Assembly Parts Diagram

  • Title
1

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 112-3987

Bracket-Pivot, Hopper

$7.99

$

Usually ships in 3-6 days

0

3

Exmark 112-3993

Screen-Bagger

$29.99

$

In Stock, only 1 left!

0

4

Exmark 112-3994

Bag ASM

$175.99

$

In Stock, only 2 left!

0

5

Exmark 131-8654

Bagger Top ASM

$236.99

$

Usually ships in 3-6 days

0

6

Exmark 112-3995

Tube-Bagger

$206.99

$

Usually ships in 3-6 days

0

7

Exmark 3230-2

Bolt-CARR

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 132-6919

Screw-Plastite

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 3256-77

Washer-Flat

$2.49

$

In Stock, only 2 left!

0

11

Exmark 116-4992

Latch-Rubber

$49.99

$

In Stock, only 1 left!

0

12

Exmark 131-4189

Rod-Hood, Down (Hold)

$22.99

$

In Stock, only 1 left!

0

13

Exmark 3290-355

Pin-Hair

$2.49

$

In Stock, Qty 20+

0

15

Exmark 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

16

Exmark 120-5502-03

Bracket-Bagger Weight, RH

$27.99

$

Usually ships in 3-6 days

0

17

Exmark 120-5497-03

Bracket-Bagger Weight, LH

$33.99

$

Usually ships in 3-6 days

0

18

Exmark 120-5491-03

Channel-Weight, Bagger

$103.99

$

Usually ships in 3-6 days

0

$72.99

$

Usually ships in 3-6 days

0

20

Exmark 109-9742-05

Weight-35 Pound

$450.99

$

Usually ships in 3-6 days

0

21

Exmark 109-9759

Pin-Weight

$

$

Not available

22

Exmark 3234-42

Screw-HHF

$3.49

$

In Stock, Qty 20+

0

23

Exmark 119-4061

Screw-HHF

$2.49

$

In Stock, only 2 left!

0

24

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 133-4320-03

Pivot Frame ASM
(Superseded to 144-1829-03)

$270.99

$

Usually ships in 3-6 days

0

26

Exmark 131-3967-03

Bracket-Stabilizer

$6.49

$

Usually ships in 3-6 days

0

27

Exmark 3234-29

Screw-HHF

$2.99

$

In Stock, Qty 14

0

28

Exmark 32144-70

Screw-HWHTF

$2.99

$

In Stock, Qty 20+

0

29

Exmark 119-8853

Rod-Support

$22.99

$

In Stock, only 1 left!

0

30

Exmark 3230-1

Bolt-CARR

$1.99

$

In Stock, Qty 20+

0

31

Exmark 3256-26

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

32

$2.99

$

In Stock, only 3 left!

0
