135-2604 - Exmark Radius Ultra Vac Bagger (SN: 411294212 - 413950473) (Rev A) (2022) Blower Assembly (cont.) Parts Diagram

Radius Ultra Vac Bagger

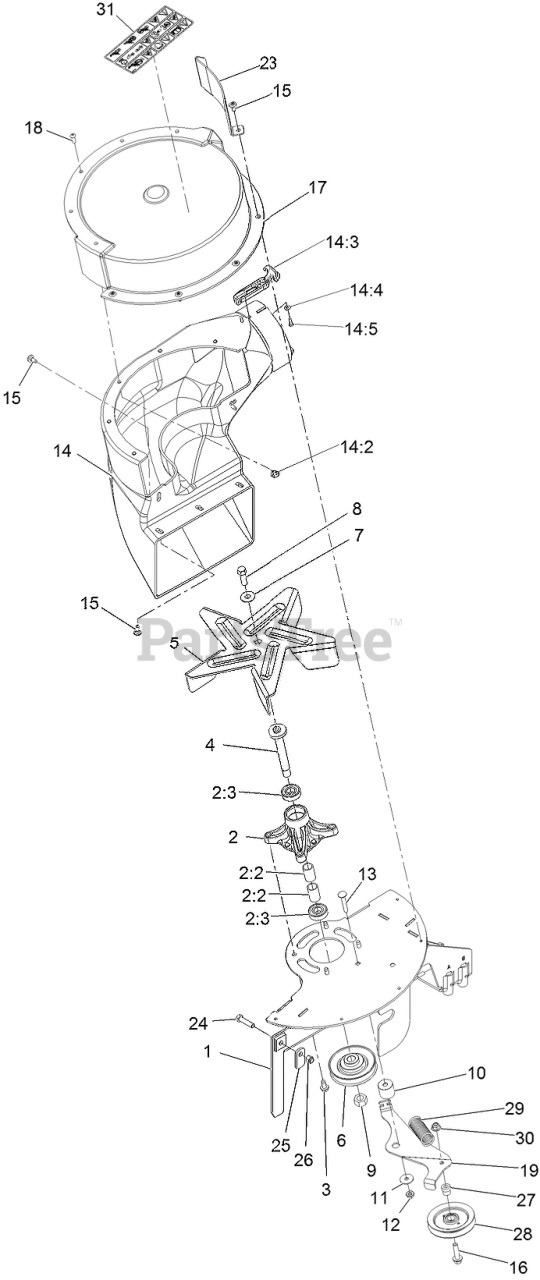

Blower Assembly (cont.) Parts Diagram

  • Title
1

Exmark 135-2701-03

WELDMENT-SUPPORT, BLOWER

$307.99

$

Usually ships in 3-6 days

0

2

Exmark 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$78.99

$

Usually ships in 3-6 days

0

2:2

$2.99

$

In Stock, Qty 15

0

2:3

Exmark 136-5441

BEARING-BALL

$7.99

$

In Stock, Qty 6

0

3

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

4

Exmark 137-7009

Shaft - Spindle

$25.99

$

Usually ships in 3-6 days

0

5

Exmark 133-4336

Fan-Blower

$

$

Currently unavailable

6

Exmark 135-3436

SHEAVE-BLOWER OFFSET

$53.99

$

Usually ships in 3-6 days

0

7

Exmark 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 108-8823

Screw-HH

$8.49

$

Usually ships in 3-6 days

0

9

Exmark 3219-16

Nut-Hex

$7.49

$

Usually ships in 3-6 days

0

10

Exmark 135-4488

SPACER-STEPPED

$23.99

$

Usually ships in 3-6 days

0

11

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

13

Exmark 127-6841

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 135-5461

ASM-Blower Chute, Plastic

$264.99

$

Usually ships in 3-6 days

0

14:2

Exmark 136-9187

Insert-T-Nut

$1.99

$

Usually ships in 3-6 days

0

14:3

Exmark 103-4080

LATCH-RUBBER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$31.99

$

In Stock, Qty 5

0

14:4

Exmark 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

14:5

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

16

Exmark 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

17

Exmark 135-5032

ASM-BLOWER COVER

$172.99

$

Usually ships in 3-6 days

0

18

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 135-3416

ARM-IDLER, BLOWER

$36.99

$

Usually ships in 3-6 days

0

23

Exmark 136-9213-03

Guard-Blower

$18.99

$

Usually ships in 3-6 days

0

24

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

0

26

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

27

Exmark 1-653367

HUB,SPACER

$23.99

$

Usually ships in 3-6 days

0

28

$53.99

$

In Stock, only 4 left!

0

29

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

30

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 135-3973

DECAL-WARNING BLOWER W/RO

$13.99

$

Usually ships in 3-6 days

0
