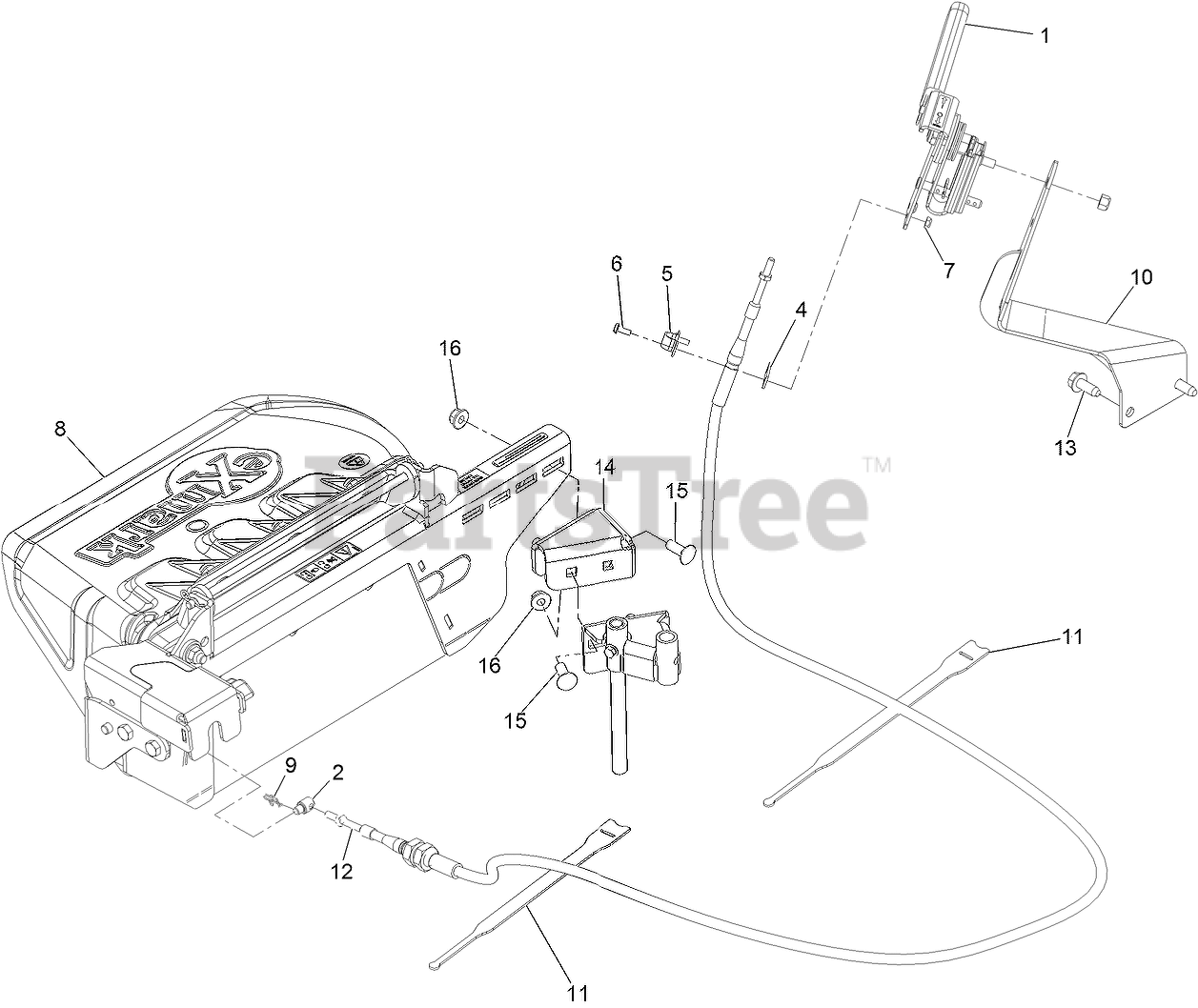

135-2532 - Exmark Hand Operator Control Discharge Kit (SN: 411294212 - 413950473) (Rev A) (2022) Main Assembly Parts Diagram

Hand Operator Control Discharge Kit

Main Assembly Parts Diagram

  • Title

1

Exmark 116-8557

ASM, HAND LEVER

$231.99

$

Usually ships in 3-6 days

0

2

Exmark 116-7868

PIVOT, CONTROL CABLE

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 116-1544

SHIM,CONTROL CABLE

$7.49

$

Usually ships in 3-6 days

0

5

Exmark 116-1545

CLAMP

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 3250-12

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

7

Exmark 3296-12

NUT-LOCK, NI
(Superseded to 3296-12)

$1.49

$

In Stock, Qty 6

0

8

Exmark 116-8556

ASM, OCD

$542.99

$

In Stock, only 1 left!

0

9

Exmark 116-6639

PIN-COTTER, LOCKING

$1.49

$

In Stock, only 4 left!

0

10

Exmark 135-4364-03

MOUNT-HANDLE OCDC

$83.99

$

Usually ships in 3-6 days

0

11

Exmark 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0

12

Exmark 116-4005

CABLE-DISCHARGE GATE

$242.99

$

In Stock, only 2 left!

0

13

Exmark 126-1696

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 5

0

14

Exmark 135-2124-01

BRACKET-OCD

$42.99

$

Usually ships in 3-6 days

0

15

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
