135-2472 - Exmark Foot Operator Control Discharge Kit (SN: 400000000 - 402082299) (2017) Main Assembly Parts Diagram

Foot Operator Control Discharge Kit

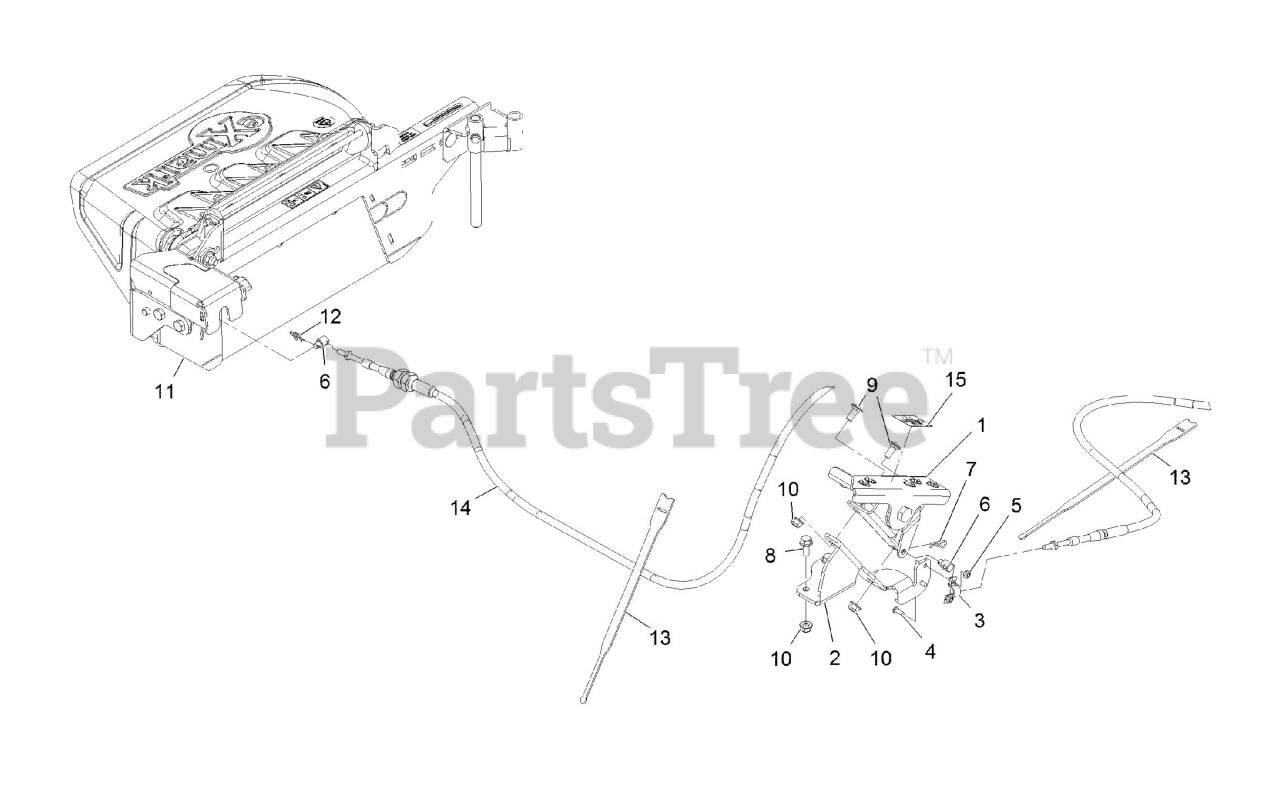

Main Assembly Parts Diagram

  • Title

1

Exmark 116-7814

ASM, PEDAL, OCD GATE

$231.99

$

Usually ships in 3-6 days

0

2

Exmark 135-1871-01

MOUNT-PEDAL, OCD

$

$

Not available

3

Exmark 116-1545

CLAMP

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 3250-12

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

5

Exmark 3296-12

NUT-LOCK, NI
(Superseded to 3296-12)

$1.49

$

In Stock, Qty 6

0

6

Exmark 116-7868

PIVOT, CONTROL CABLE

$14.99

$

Usually ships in 3-6 days

0

7

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

9

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

11

Exmark 116-8556

ASM, OCD

$542.99

$

In Stock, only 1 left!

0

12

Exmark 116-6639

PIN-COTTER, LOCKING

$1.49

$

In Stock, only 4 left!

0

13

Exmark 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0

14

Exmark 116-4005

CABLE-DISCHARGE GATE

$242.99

$

In Stock, only 2 left!

0

15

Exmark 135-3908

DECAL-OCD OPERATION

$16.99

$

Usually ships in 3-6 days

0
