135 (183-387-304) - Lawnflite Walk-Behind Mower, Electric (1993) (Target) Deck And Handle Assembly Parts Diagram

Walk-Behind Mower, Electric

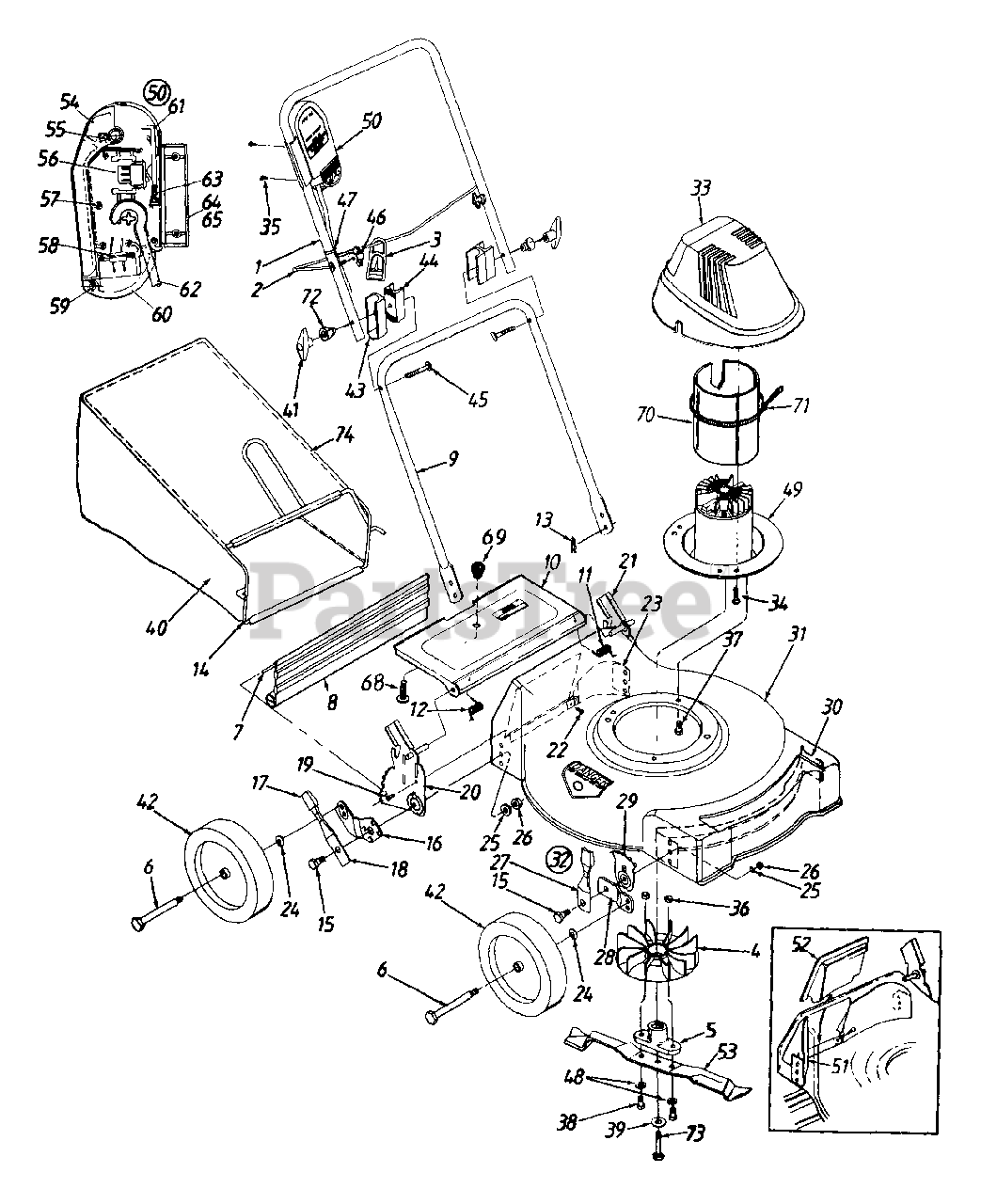

Deck And Handle Assembly Parts Diagram

  • Title

1

MTD 749-0883

Upper Handle

Variations

MTD 749-0883-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 747-0790

Cord Control Rod
(Superseded to 747-1094)

$

$

Not available

3

MTD 725-1590

Strain Relief - Cord

$

$

Not available

4

MTD 731-1270

Fan

$

$

Not available

5

MTD 748-0356

Blade Adapter

$

$

Not available

6

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

7

MTD 732-0712

Rear Flap Wire

$

$

Not available

8

MTD 731-1261

Rear Flap

$

$

Not available

9

MTD 749-0885

Lower Handle

Variations

MTD 749-0885-0637

Lower Handle - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 782-7025

Chute Door
(Superseded to 782-7025-0637)

Variations

MTD 782-7025-0637

DOOR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$

$

Not available

12

MTD 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

13

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

14

MTD 764-0326

Front Catcher Frame

Variations

MTD 764-0326-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 738-0507B

Shld. Bolt .5" Dia. x .434"

$4.49

$

In Stock, only 4 left!

0

16

MTD 14765

Pivot Bar - R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar - L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

17

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

18

MTD 732-0417A

Spring Lever

$

$

Not available

19

MTD 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

20

MTD 682-0516

Brkt. Height Adj. Comp. Ass'y.- R.H.
(Superseded to 682-0516-0637)

Variations

MTD 682-0516-0637

BRACKET-HGT ADJ-RH - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 682-0515

Brkt. Height Adj. Comp. Ass'y.- L.H.
(Superseded to 753-05994)

Variations

MTD 682-0515-0637

Handle Bracket Kit - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

22

MTD 710-1017

Torx. Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

23

MTD 782-5026

Rear Baffle
(Superseded to 782-5026-0637)

Variations

MTD 782-5026-0637

Rear Baffle - POWDER BLACK (0637)

$

$

Not available

MTD 782-5026-0638

Rear Baffle - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

24

MTD 736-0105

Bell-Wash..38" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0356

Bell-Wash..39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

26

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

27

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

28

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

29

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

30

MTD 782-5025

Front Baffle
(Superseded to 782-5025-0637)

Variations

MTD 782-5025-0637

BAFFLE-FR - POWDER BLACK (0637)

$

$

Not available

MTD 782-5025-0638

BAFFLE-FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

31

MTD 782-0054

19" Deck
(Superseded to 782-0054B)

Variations

MTD 782-0054-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-0054-0498

No Longer Available B-0498 DEC - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-0054-0629

DECK ASM-19" MULCH - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0054-0637

No Longer Available B-0637 DEC - POWDER BLACK (0637)

$

$

Not available

MTD 782-0054-0638

DECK ASM-19" MULCH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0054-0640

DECK ASM-19" MULCH - CO-OP GREEN (0640)

$

$

Not available

MTD 782-0054-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0054-0665

DECK ASM-19" MULCH - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0054-0691

DECK ASM-19" MULCH - BLACK JACK (0691)

$

$

Not available

$

$

32

MTD 14578

Height Adj. Ass'y. Comp.- R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.- L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

33

MTD 731-1263

Motor Cover

$

$

Not available

34

MTD 710-1128

Scr. #10-16 x .75" Lg.

$

$

Not available

35

MTD 710-1150

Self-Tap. Scr #7 x 1" Lg

$

$

Not available

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

37

MTD 710-1006

Hex L-Wash. TT-Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

38

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

39

MTD 736-0452

Bell-Wash..396" I.D. x 1.14"

$4.99

$

In Stock, Qty 7

0

40

MTD 764-0446

Grass Bag

$

$

Not available

41

MTD 720-0241

Plastic Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

42

MTD 734-1781

Wheel Ass'y Comp.

Note: New Part

$32.99

$

In Stock, Qty 7

0

43

MTD 731-1268

Upper Handle Insulator

$16.99

$

Usually ships in 3-6 days

0

44

MTD 731-1267

Lower Handle Insulator

$

$

Not available

45

MTD 710-0486

Carriage Bolt 5/16-18 x 3.25"
(Superseded to 710-0450)

$6.49

$

Usually ships in 3-6 days

0

46

MTD 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

47

MTD 726-0303

Cable Tie

$

$

Not available

48

MTD 736-0331

Bell-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 16

0

49

MTD 818-60013

Motor, Cord & Switch Ass'y.

$

$

Not available

50

MTD 624-0032

Cord & Switch Ass'y. Comp.

$

$

Not available

51

MTD 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Note: (Optional)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

52

MTD 782-5007

Mulching Baffle Plug
(Superseded to 782-5007C)

Note: (Optional)

Variations

MTD 782-5007-0637

Mulching Baffle Plug - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

53

MTD 742-0619

19" Blade
(Superseded to 942-0619)

Note: New Part

$

$

Not available

MTD 742-0719

19" Mulching Blade
(Superseded to 942-0719)

Note: (Optional) New Part

$34.99

$

Usually ships in 3-6 days

0

54

MTD 731-1210

Handle - Switch Actuator

$

$

Not available

55

MTD 732-0679

Spring - Switch Handle

$

$

Not available

56

MTD 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

57

MTD 710-1147

Screw #6-32 x .5" Lg.

$

$

Not available

58

MTD 729-0304

Plug Ass'y.
(Superseded to 929-0304)

$

$

Not available

59

MTD 732-0680

Retainer Plug Spring
(Superseded to 932-0680)

$

$

Not available

60

MTD 731-1211

Retainer Plug

$

$

Not available

61

MTD 731-1198

Latch

$

$

Not available

62

MTD 624-0053

Cord Ass'y.

Note: (Incl. Ref #58)

$

$

Not available

63

MTD 732-0681

Spring Latch

$

$

Not available

64

MTD 731-1208

Housing - Upper Half

$

$

Not available

65

MTD 731-1209

Housing - Lower Half

Note: (Not Shown)

$

$

Not available

68

MTD 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

69

MTD 720-0275

Knob

$

$

Not available

70

MTD 721-0311

Insulator

$

$

Not available

71

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

72

MTD 731-1388

Insulator Knob

$

$

Not available

73

MTD 710-1251

Hex Bolt 3/8-24 x 2.5" Lg.

$

$

Not available

74

MTD 764-0325

Rear Catcher Frame
(Superseded to 764-0325-0637)

Variations

MTD 764-0325-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$

$

Not available

$

$
