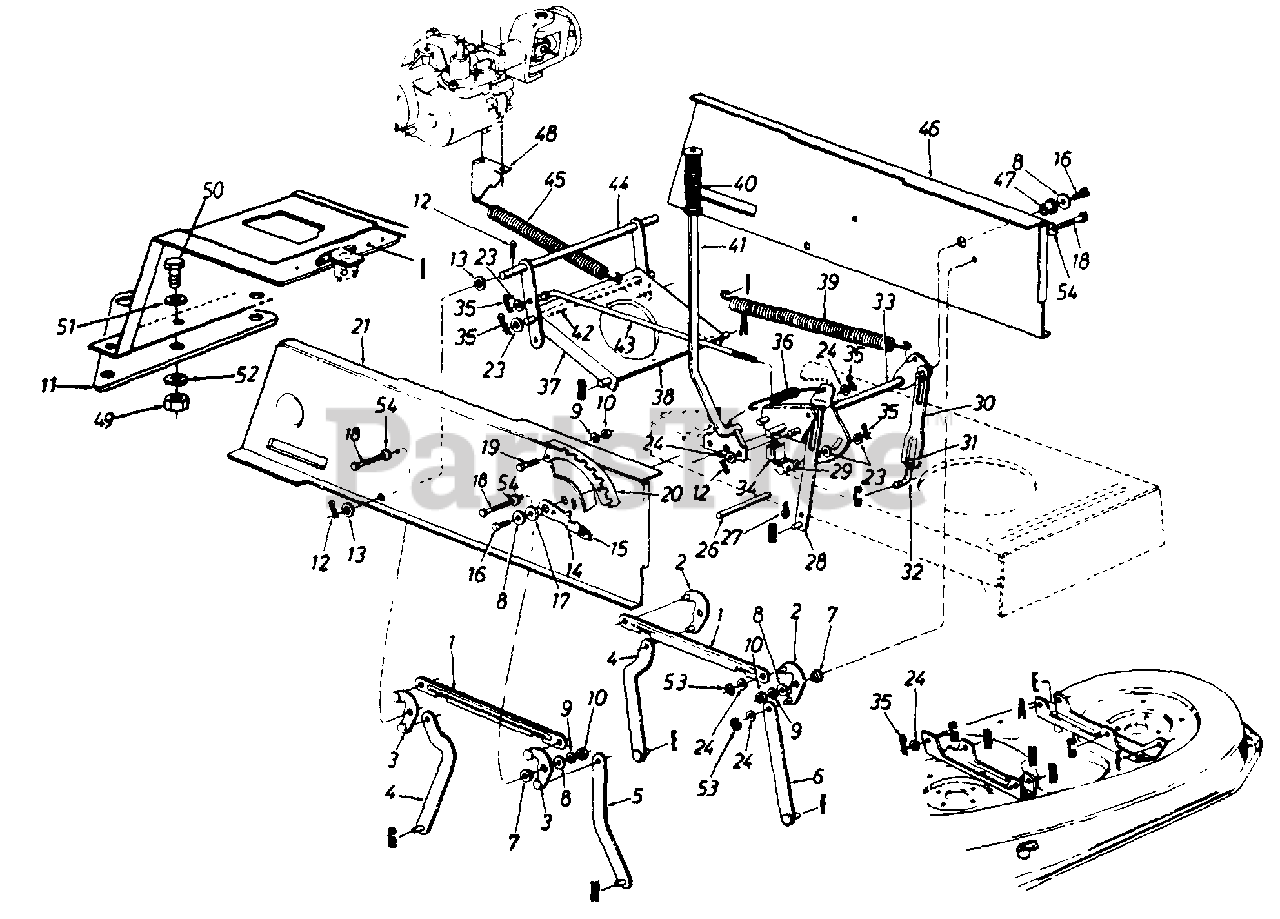

134R617G000 - MTD Lawn Tractor (1994) Deck Lift & Hanger Parts Diagram

Lawn Tractor

Deck Lift & Hanger Parts Diagram

  • Title

1

MTD 783-0103

Connecting Rod
(Superseded to 783-0103-0637)

Variations

MTD 783-0103-0637

ROD-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 683-0029

Pivot Link Ass'y.- L.H.
(Superseded to 983-0029A-0637)

$13.99

$

In Stock, only 3 left!

0

3

MTD 683-0028

Pivot Link Ass'y.- R.H.

$

$

Not available

4

MTD 17710

Deck Hanger Link Ass'y.

Variations

MTD 17710-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 14800A

Deck Hanger Link Ass'y.
(Superseded to 14800A-0637)

Variations

MTD 14800A-0637

HANGER-DECK LINK - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 14804A

Deck Hanger Link Ass'y.

$

$

Not available

7

MTD 748-0331

Shld. Spacer .318" I.D.
(Superseded to 948-0331)

$

$

Not available

8

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125"

$4.99

$

In Stock, Qty 20+

0

9

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

MTD 783-0014

Hitch Plate Extension

$

$

Not available

12

MTD 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0256

Fl-Wash. .635" I.D. x 1.0" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

14

MTD 683-0003

Height Adj. Stop Lever Ass'y.
(Superseded to 983-0003)

Note: (Incl. Ref. 15) Optional Parts

$

$

Not available

15

MTD 08540

Knob

Note: Optional Parts

$

$

Not available

16

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

17

MTD 748-0176

Flange Brg. .63" 1.D.

$9.99

$

In Stock, only 1 left!

0

18

MTD 710-1238

Hex Wash. Hd, Scr. 5/16-18 x .875" Lg.
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

20

MTD 17730

Index Brkt.
(Superseded to 783-04113P)

$25.99

$

In Stock, only 1 left!

0

21

MTD 17830A

Upper Frame - R.H.

Note: New Part

$

$

Currently unavailable

23

MTD 736-0267

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

26

MTD 738-0526

Running Board Rod

$

$

Not available

27

MTD 710-0351

Truss Mach. Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

28

MTD 14802A

Link Deck Lift Ass'y,
(Superseded to 14802A-0637)

Variations

MTD 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 711-0723A

Adj. Ferrule 3/8-24 Thd.
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

30

MTD 17712

Adj. Deck Lift Link
(Superseded to 17712-0637)

Variations

MTD 17712-0637

Deck Adjust Link - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

31

MTD 712-3066

Hex Nut 1/2-20 Thd. (Gr. 5)
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

32

MTD 711-0841

Lift Link Adjuster
(Superseded to 911-0841)

$

$

Not available

33

MTD 17825B

Lift Shaft Ass'y.

Note: New Part

$

$

Not available

34

MTD 725-1657

Safety Switch (Deck)
(Superseded to 925-1657A)

Note: New Part

$24.99

$

In Stock, only 4 left!

0

35

MTD 714-0145

Inter. Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

36

MTD 732-0648

Extension Spring

$

$

Not available

37

MTD 17636B

Stabilizer Bracket
(Superseded to 17636D-0637)

Variations

MTD 17636B-0637

Stabilizer Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 738-0670

Shaft 1/2" Dia. x 10.28" Lg.
(Superseded to 738-0670A)

$

$

Not available

39

MTD 732-0638

Extension Spring

$

$

Not available

40

MTD 720-0233

Grip (Lift Handle)
(Superseded to 920-0233)

$

$

Not available

41

MTD 17675

Deck Lift Handle Ass'y.

$

$

Not available

42

MTD 738-0669

Shaft 3/8" Dia. x 9.34" Lg.

$

$

Not available

43

MTD 747-0598

Disengagement Rod

$13.99

$

Usually ships in 3-6 days

0

44

MTD 17624

Stabilizer Shaft Ass'y.
(Superseded to 97624-0637)

$

$

Not available

45

MTD 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

46

MTD 17831A

Upper Frame - L.H.

Note: New Part

$

$

Currently unavailable

47

MTD 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

48

MTD 17128A

Spring Retainer Brkt.
(Superseded to 17128A-0637)

Variations

MTD 17128A-0637

Retainer Spring Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

49

MTD 712-3019

Hex Nut 7/16-14 Thd. (Gr. 5)

$6.99

$

In Stock, only 1 left!

0

50

MTD 710-0505

Hex Bolt 7/16-14 x 1" Lg.

$6.99

$

Usually ships in 3-6 days

0

51

MTD 736-0439

Bell-Wash. .46" I.D.

$3.49

$

Usually ships in 3-6 days

0

52

MTD 736-3015

Fl-Wash. .469" I.D. x 1.13" O.D
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

53

MTD 716-0104

"E"-Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

54

MTD 736-0425

Bell-Wash. .325" I.D.

$4.99

$

In Stock, Qty 13

0
