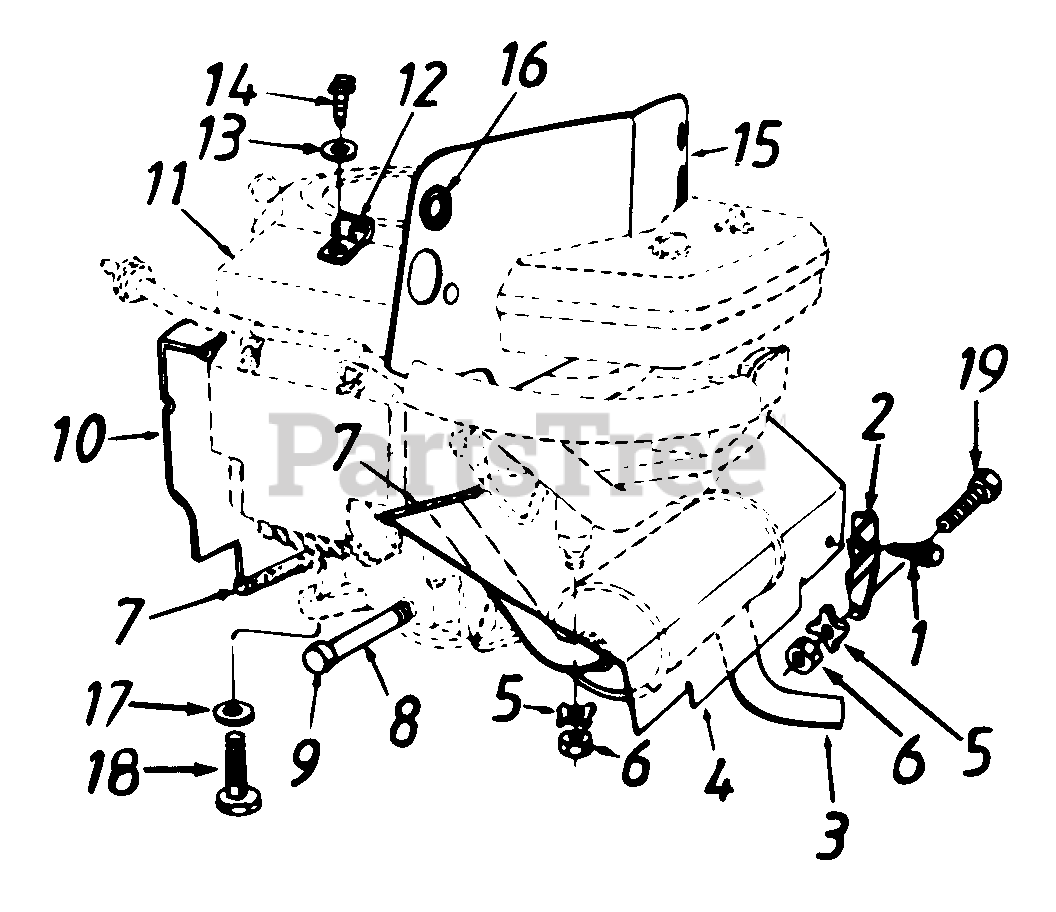

134M670G033 - MTD Lawn Tractor (1994) (Ace Hardware) Muffler Parts Diagram

Lawn Tractor

Muffler Parts Diagram

  • Title

1

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

2

MTD 17450

Muffler Heat Shield Mtg. Brkt.- R.H.

Note: (Not Shown)

$

$

Not available

MTD 17449

Muffler Heat Shield Mtg. Brkt.- L.H.

$

$

Not available

3

MTD 751-0474

Muffler

$

$

Not available

4

MTD 16934

Front Heat Shield

$

$

Not available

5

MTD 736-0170

Spec. L-Wash. 5/16 x .88"

$5.99

$

Usually ships in 3-6 days

0

6

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

MTD 731-0511-12

Trim Strip 12" Lg.

$22.99

$

Usually ships in 3-6 days

0

8

MTD 737-0164

Pipe Nipple
(Superseded to 937-0164)

$

$

Not available

9

MTD 737-0143

Oil Drain Cap

$

$

Not available

10

MTD 16804C

Rear Baffle

Note: (Styles 8 and 9)

$

$

Not available

11

Engine

$

$

Not available

12

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

13

MTD 736-3067

Fl-Wash .188" I.D. x .438"

$3.49

$

Usually ships in 3-6 days

0

14

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

15

MTD 783-0161

Heat Shield

Note: New Part (Styles 3 & 5 Only)

$

$

Not available

16

MTD 735-0328

Rubber Grommet

Note: (Used w/Ref. 15)

$

$

Currently unavailable

17

MTD 736-0247

Fl-Wash .406" I.D. x 1-1/4" O.D.

$9.49

$

In Stock, Qty 14

0

18

MTD 710-0502A

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1.5" Lg.

$6.99

$

In Stock, only 2 left!

0

19

MTD 710-1087

Hex Bolt 5/16-18 x 5/8" Lg.
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0
