134I600F000 - MTD Lawn Tractor (1994) Deck Assembly Parts Diagram

Lawn Tractor

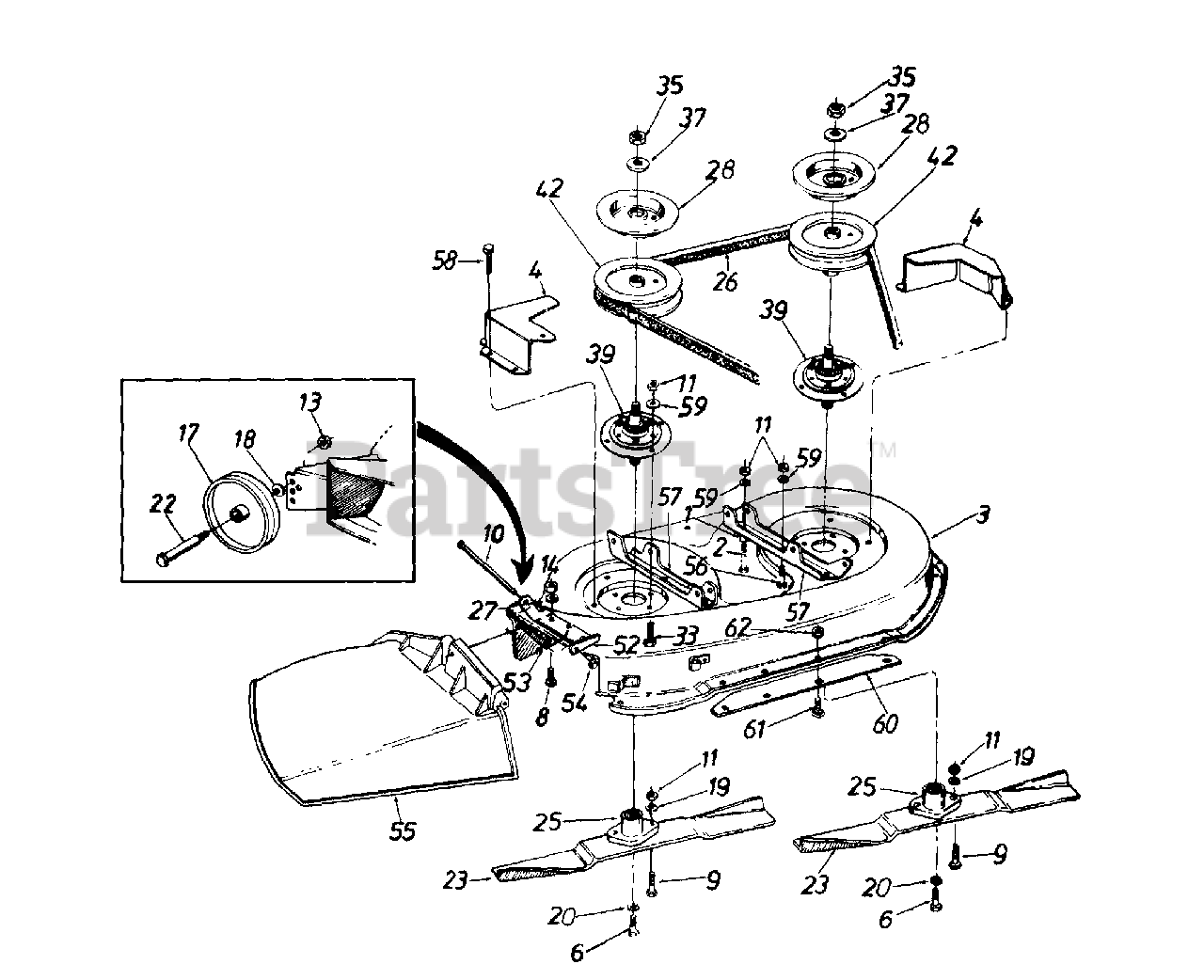

Deck Assembly Parts Diagram

  • Title

1

MTD 750-0776

Spacer .33" I.D. x .88"

$

$

Not available

2

MTD 710-0672

Hex Bolt 5/16-24 x 1.25" Lg.

$4.49

$

In Stock, Qty 18

0

3

MTD 17503B

38" Deck Ass'y. w/Deck Wheels
(Superseded to 753-04376)

Variations

MTD 17503B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17503B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 17503B-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17503B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

MTD 801-7503

38" Deck Ass'y. Comp. w/Deck Wheels
(Superseded to 753-0694)

Note: (For Service Only)

$

$

Not available

MTD 17717B

38" Deck Ass'y. w/o Deck Wheels

Variations

MTD 17717B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 17717B-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

$

$

MTD 813-06102

38" Deck Ass'y. w/o Deck Wheels
(Superseded to 753-0694)

Note: (For Service Only)

Variations

MTD 813-06102-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 813-06102-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

MTD 17665

Belt Guard Deck
(Superseded to 17665-0637)

Variations

MTD 17665-0480

Belt Guard, Black - BRILLIANT GREEN (0480)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0483

Belt Guard, Black - CHARCOAL GRAY (0483)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0498

Belt Guard, Black - OLD CUB YELLOW (0498)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0637

Belt Guard, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0638

Belt Guard, Black - MTD/TROY-BILT RED (0638)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0648

Belt Guard, Black - TECH GRAY (0648)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0650

Belt Guard, Black - RED METALLIC (0650)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0662

Belt Guard, Black - OYSTER GRAY (0662)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0665

Belt Guard, Black - YARDMAN GREEN (0665)

$48.99

$

In Stock, only 2 left!

0

$48.99

$

In Stock, only 2 left!

0

6

MTD 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

8

MTD 710-0258

Hex Bolt 1/4-20 x .62"
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$4.49

$

In Stock, Qty 5

0

10

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

11

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

13

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

Note: Optional Deck Assembly with Wheels.

$4.49

$

In Stock, only 3 left!

0

14

MTD 712-0287

Mex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

17

MTD 734-0973

Deck Wheel - 5"

$12.99

$

In Stock, Qty 20+

0

18

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 8

0

22

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

Note: Optional Deck Assembly with Wheels.

$9.49

$

In Stock, Qty 20+

0

23

MTD 742-0473A

High-Lift Blade
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 5

0

25

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

26

MTD 754-0433

V-Belt
(Superseded to 954-0329A)

$52.99

$

In Stock, only 2 left!

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 09322

Brake Disc

$

$

Not available

33

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

35

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

37

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

39

MTD 717-0906

Blade Spindle Ass'y. Comp.
(Superseded to 753-05319)

$128.99

$

In Stock, Qty 10

0

42

MTD 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

52

MTD 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

MTD 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

MTD 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

MTD 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: (Incl. Ref.10, 52, 53, 54, 55)

$81.99

$

In Stock, Qty 6

0

56

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

57

MTD 17493A

Deck Hanger Channel
(Superseded to 17493B-0637)

Variations

MTD 17493A-0637

CHANNEL-DECK HANGE - POWDER BLACK (0637)

$

$

Not available

$

$

58

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

60

MTD 17863

Skirt Ext.
(Superseded to 17863-0637)

Variations

MTD 17863-0637

Deck Skirt Ext. - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

62

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0
