134B560B054 - Mastercraft Lawn Tractor (1994) Frame/Seat/Fuel Tank/Muffler Parts Diagram

Lawn Tractor

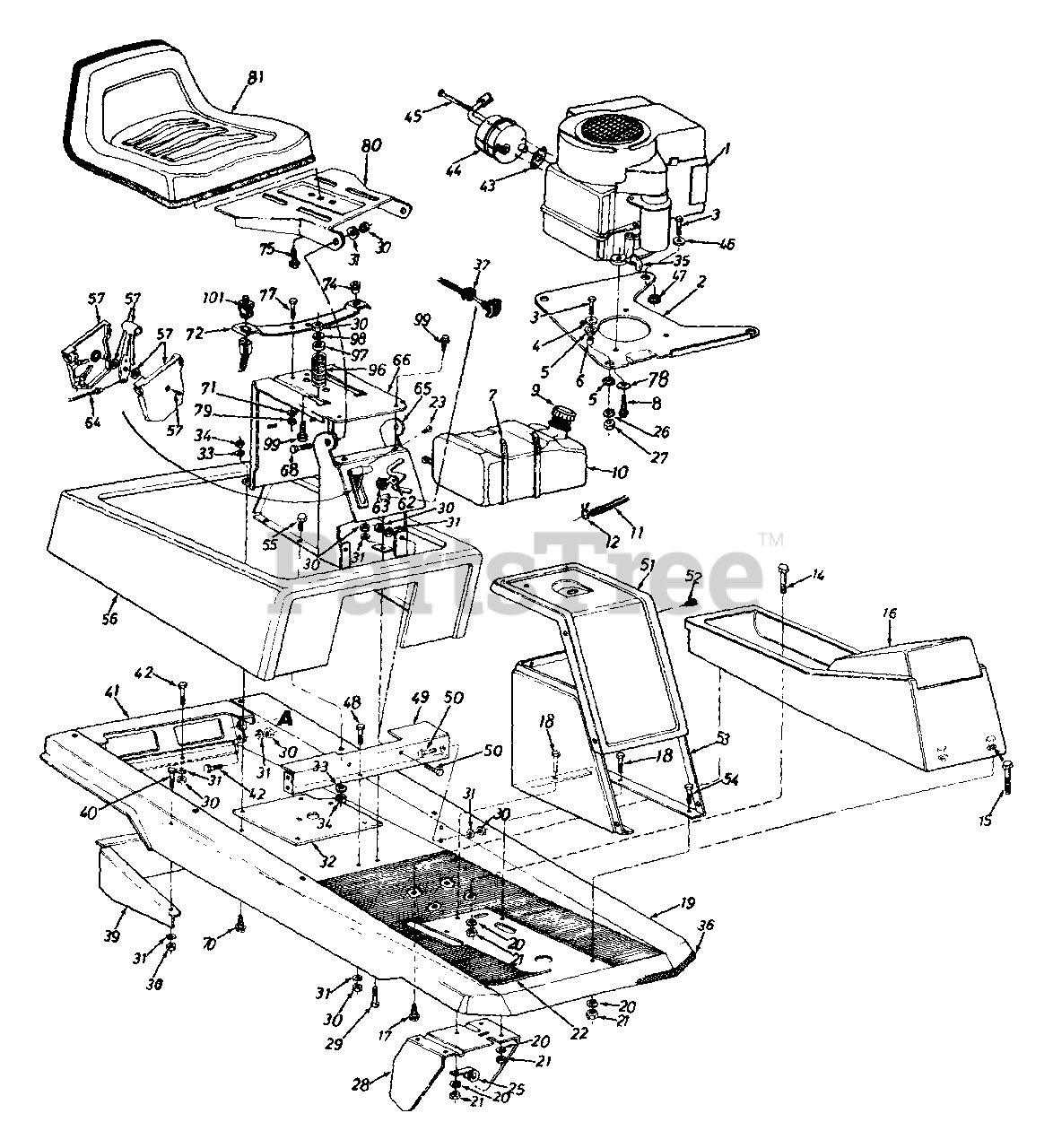

Frame/Seat/Fuel Tank/Muffler Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 15572A

Engine Mounting Plate
(Superseded to 15572A-0637)

Variations

MTD 15572A-0637

PLATE-ENGINE MTG - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 16

0

4

MTD 736-0231

Fl-Wash. .330" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

5

MTD 722-0153

Engine Mounting Grommet

$3.49

$

In Stock, Qty 20+

0

6

MTD 750-0539

Spacer .315" I.D. x .50" O.D. x .520" Lg.
(Superseded to 950-0539)

$

$

Not available

7

MTD 726-0209

Cable Tie 30.6 Lg.
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

8

MTD 710-0502A

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

9

MTD 751-3071

Gas Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

10

MTD 751-0368A

Fuel Tank
(Superseded to 751-0368C)

$

$

Not available

11

MTD 751-0535-26

Fuel Line - 26" Lg.
(Superseded to 751-10349-28)

$41.99

$

In Stock, only 1 left!

0

12

MTD 726-0205

Hose Clamp - 1/2" O.D. Tube

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

Note: For model 561

$5.49

$

In Stock, Qty 20+

0

15

MTD 710-0116

Hex Bolt 5/16-18 x 2" Lg."
(Superseded to 710-3103)

Note: For model 561

$4.49

$

In Stock, Qty 20+

0

16

MTD 731-0712A

Front Console

Note: For model 561

$

$

Not available

17

MTD 710-0906

Plastite Scr. 5/16 x 1.25" Lg.
(Superseded to 710-0323)

Note: For model 561

$4.99

$

In Stock, only 2 left!

0

18

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

Note: For model 561

$4.49

$

In Stock, Qty 20+

0

19

MTD 17672A

Main Frame

$

$

Currently unavailable

20

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 735-0220A

Floor Mat

$

$

Not available

23

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, Qty 12

0

25

MTD 726-0175

Clamp

$

$

Not available

26

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

28

MTD 17677

Clutch-Brake Pedal Ass'y.

$

$

Not available

29

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 783-0005

Variable Speed Mounting Plate

Variations

MTD 783-0005-0637

No Longer Available PLATE-V/S - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

34

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

35

MTD 737-0125

90ø Elbow Male To Female

$

$

Not available

36

MTD 731-0511-57

Trim Strip

$73.99

$

Usually ships in 3-6 days

0

37

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

39

MTD 15552

Transaxle Support Ass'y.

Variations

MTD 15552-0637

No Longer Available SUPPORT AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

41

MTD 15571

Rear Frame Panel

Variations

MTD 15571-0498

No Longer Available PANEL-FRAM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15571-0629

No Longer Available PANEL-FRAM - SILVER FLAKE (0629)

$

$

Not available

MTD 15571-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 15571-0638

No Longer Available PANEL-FRAM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

42

MTD 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)

$

$

Not available

43

MTD 721-0207

Exhaust Gasket (8 H.P. B&S)
(Superseded to BS-692237)

$5.49

$

In Stock, only 2 left!

0

MTD 721-0208

Exhaust Gasket (10, 11 & 12 H.P. B&S)
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

44

MTD 751-0412

Muffler Ass'y. (8 H.P. B&S)

$

$

Not available

MTD 751-0425

Spark Arrester 8 H.P. Muffler (B&S)

Note: (Optional)

$

$

Not available

MTD 751-0413

Muffler Ass'y. (10, 11 & 12 H.P. B&S)

$

$

Not available

MTD 751-0426

Spark Arrester 10, 11 & 12 H.P. Muffler (B&S)
(Superseded to 951-0544)

Note: (Optional)

$

$

Not available

MTD 751-0604

Muffler Ass'y. (8 H.P. Tecumseh)

$

$

Not available

MTD 751-0605

Spark Arrester (8 H.P. Tecumseh)

Note: (Optional)

$

$

Currently unavailable

45

MTD 738-0635

Shld. Bolt (8 H.P. B&S)
(Superseded to 938-0635)

$

$

Not available

MTD 738-0636

Shld. Bolt (10, 11 & 12 H.P. B&S)
(Superseded to 938-0636)

$

$

Not available

MTD 738-0905

Shld. Bolt (8 H.P. Tecumseh)
(Superseded to TC-650729)

$1.99

$

In Stock, only 4 left!

0

46

MTD 736-0343

Fl-Wash. .330" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

47

MTD 736-0392

Flange Wash. .320" I.D. x .750" O.D.

$

$

Not available

48

UNKNOWN

$

$

Not available

49

MTD 15604

Seat Support & Frame Brkt.

$

$

Not available

50

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

51

MTD 15554

Steering Housing Cover

Note: For model 560

Variations

MTD 15554-0483

No Longer Available COVER-STEE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 15554-0629

No Longer Available COVER-STEE - SILVER FLAKE (0629)

$

$

Not available

MTD 15554-0637

No Longer Available COVER-STEE - POWDER BLACK (0637)

$

$

Not available

MTD 15554-0638

No Longer Available COVER-STEE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

52

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg

Note: For model 560

$4.49

$

Usually ships in 3-6 days

0

53

MTD 16403

Steering Shaft Housing

Note: For model 560

Variations

MTD 16403-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 16403-0637

No Longer Available HOUSING-ST - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

Note: For model 560

$3.99

$

In Stock, Qty 20+

0

55

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

56

MTD 683-0044

Engine Cover Ass'y.

Note: New Part

Variations

MTD 683-0044-0483

No Longer Available COVER ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 683-0044-0629

No Longer Available COVER ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 683-0044-0638

No Longer Available COVER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0044-0650

No Longer Available COVER ASM - RED METALLIC (0650)

$

$

Not available

$

$

57

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

62

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

63

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

64

MTD 746-0503

Throttle Control Wire 35" Lg.
(Superseded to 946-0503)

$

$

Not available

MTD 746-0891

Throttle Control Wire 30.5" Lg.
(Superseded to 946-0891)

$

$

Not available

65

MTD 16483A

Front Seat Bracket

Variations

MTD 16483A-0637

No Longer Available BRACKET-SE - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 15606A

Rear Seat Bracket

Variations

MTD 15606A-0637

Rear Seat Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

68

MTD 738-0296

Shld. Bolt .437" Dia. x .268" Lg.

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-0855

Hex Tap Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

71

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

72

MTD 732-0632

Seat Spring

$

$

Not available

74

MTD 731-0555A

Grommet

$

$

Not available

75

MTD 710-0623

Hex Wash. Hd. Tap Scr. 3/8-16 x 3/4" Lg.

$4.49

$

In Stock, Qty 20+

0

77

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

78

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

79

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

80

MTD 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

81

MTD 757-0345

Seat Ass'y. Comp.
(Superseded to 957-0378)

$

$

Not available

96

MTD 732-0633

Compression Spring 2.7" Lg.
(Superseded to 932-0633)

$

$

Not available

97

MTD 722-0160

Bushing

$

$

Not available

98

MTD 736-0159

Fl-Wash. .344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

99

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

101

MTD 725-1441

Seat Switch

$

$

Not available
