1345 SWE (31AE993J100) - Cub Cadet 45" Snow Thrower (2002) Handle Assembly Parts Diagram

45" Snow Thrower

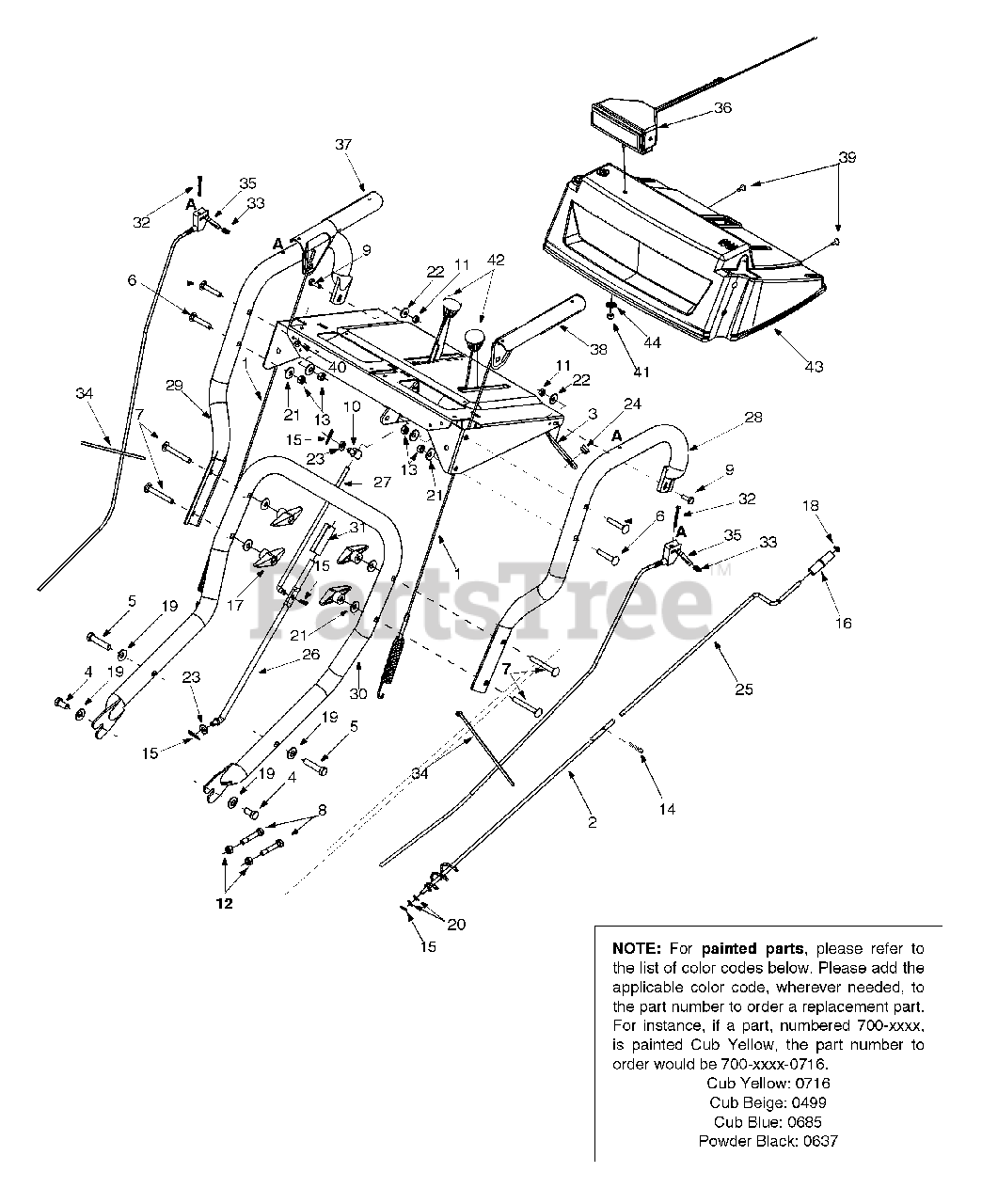

Handle Assembly Parts Diagram

  • Title
1

Cub Cadet 646-0012

Cable Assembly: Auger/Drive

$36.99

$

In Stock, only 1 left!

0

2

Cub Cadet 684-0053B

Chute Crank Assembly
(Superseded to 684-0053B-0637)

Variations

Cub Cadet 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 705-5266

Chute Crank Bracket
(Superseded to 705-5266-0637)

Variations

Cub Cadet 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0216

Hex Screw 3/8-16 x .75"

$4.49

$

In Stock, Qty 15

0

5

Cub Cadet 710-0347

Hex Screw 3/8-16 x 1.75"

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0458

Carriage Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet 710-0572

Carriage Bolt 5/16-18 x 2.5"

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0891

Shear Bolt 5/16-18 x 1.75"

$7.49

$

In Stock, Qty 16

0

9

Cub Cadet 710-3015

Hex Screw 1/4-20 x .75"

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

11

Cub Cadet 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

13

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

15

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

$6.99

$

In Stock, Qty 9

0

18

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 747-0624

Chute Crank
(Superseded to 747-0624-0637)

Variations

Cub Cadet 747-0624-0637

Crank Chute - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 747-0983

Lower Shift Rod
(Superseded to 747-0983A)

$45.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 747-0997

Upper Shift Rod

$69.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 749-0989A

Upper Handle LH

Variations

Cub Cadet 749-0989A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$91.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 749-0990A

Upper Handle RH

Variations

Cub Cadet 749-0990A-0637

HANDLE-UPPER RT - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0638

HANDLE-UPPER RT - MTD/TROY-BILT RED (0638)

$94.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0650

HANDLE-UPPER RT - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0665

HANDLE-UPPER RT - YARDMAN GREEN (0665)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0691

HANDLE-UPPER RT - BLACK JACK (0691)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 749-0991

Lower Handle

Variations

Cub Cadet 749-0991-0637

Lower Handle - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0638

HANDLE-LOWER - MTD/TROY-BILT RED (0638)

$68.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0650

HANDLE-LOWER - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0665

HANDLE-LOWER - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0691

HANDLE-LOWER - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-4033

HANDLE-LOWER - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 750-0963

Clutch Rod Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

32

Cub Cadet 710-1625

Oval C-Sunk Screw

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 712-0127

Flat Weld Nut

$3.49

$

In Stock, Qty 13

0

34

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 746-0950

Trigger Control
(Superseded to 746-0950A)

$22.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 625-0007

Light Assembly
(Superseded to 625-0007AP)

$

$

Not available

Cub Cadet 725-1658

Halogen Lamp
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

Cub Cadet 725-1672

Lens Assembly
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 705-5218

Handle Engagement RH

$37.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 705-5219

Handle Engagement LH

$37.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-1003

Special B Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

40

Cub Cadet 712-0271

Hex Sems Nut

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

43

Cub Cadet 731-0061

Handle Panel

$

$

Not available

44

Cub Cadet 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 777D04549

Label: Housing Two-Stage

$

$

Not available

Cub Cadet 777D04570

Label: Handle Panel

$

$

Not available

Cub Cadet 777D04572

Label: Engine 13 HP

$

$

Not available

Cub Cadet 777D04573

Label: Housing 1345

$

$

Not available

Cub Cadet 777I20420

Label:Panel Steering R

$

$

Not available

Cub Cadet 777I20751

Label: Panel Steering L

$

$

Not available

Cub Cadet 777S30511

Label: Danger Chute
(Superseded to 777S30524)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30514

Label: Danger Housing

$

$

Not available
