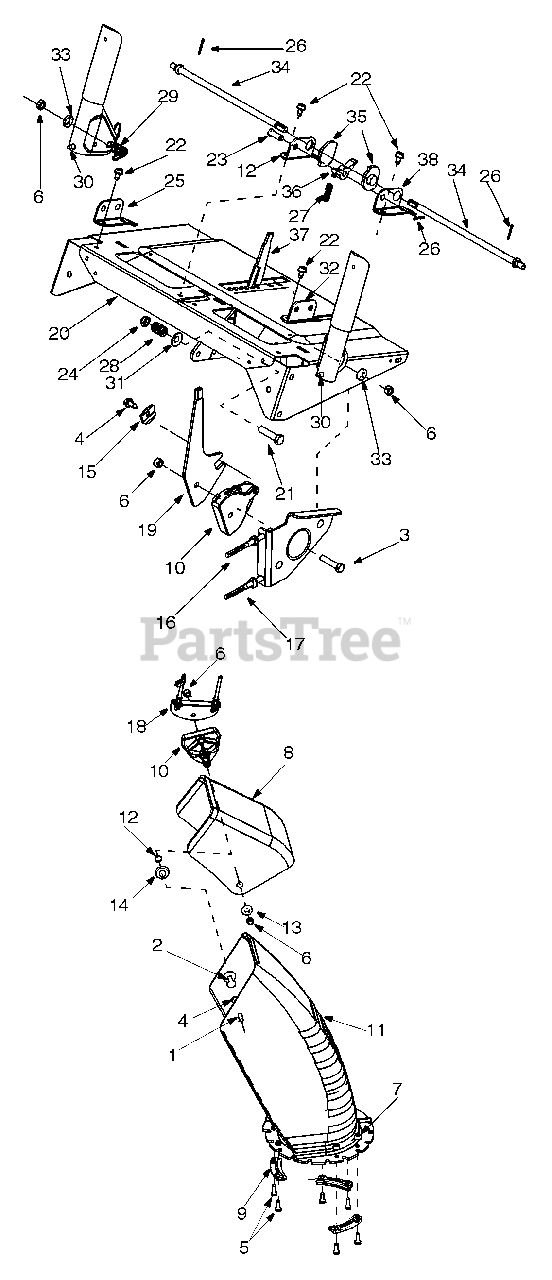

1345 SWE (31AE993J100) - Cub Cadet 45" Snow Thrower (2002) Control & Chutes Parts Diagram

45" Snow Thrower

Control & Chutes Parts Diagram

  • Title

1

Cub Cadet 710-0276

Carriage Screw

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0458

Carriage Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

3

Cub Cadet 710-0805

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0896

Hex AB Screw 1/4-14 x .625"

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3015

Hex Screw 1/4-20 x .75"

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3027

Hex Flange Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 731-0846C

Upper Chute

$52.99

$

In Stock, only 4 left!

0

9

Cub Cadet 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 731-1313C

Cable Guide: Chute Tilt

$11.99

$

In Stock, Qty 20+

0

11

Cub Cadet 731-0903D

Lower Chute
(Superseded to 731-0903E)

$43.99

$

In Stock, Qty 20+

0

12

Cub Cadet 784-5680

Handle Suppt. Bracket 5/8 RH
(Superseded to 784-5680-0637)

Variations

Cub Cadet 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0231

Flat Washer

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0506

Special Washer
(Superseded to 736-0506A)

$

$

Not available

16

Cub Cadet 746-0902

Chute Control Cable
(Superseded to 946-0902)

$49.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 746-0903

Chute Cable w/Clip
(Superseded to 946-0903)

$53.99

$

In Stock, only 1 left!

0

18

Cub Cadet 784-5594

Cable Bracket

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

Cub Cadet 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 684-0102

Handle Panel Assembly w/ Tilt
(Superseded to 684-0102A)

Variations

Cub Cadet 684-0102-0498

USE 684-0102A-0498 PANEL ASM: - OLD CUB YELLOW (0498)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0638

USE 684-0102A-0638 PANEL ASM: - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0650

USE 684-0102A-0650 PANEL ASM: - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0662

USE 684-0102A-0662 PANEL ASM: - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0665

USE 684-0102A-0665 PANEL ASM: - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0689

USE 684-0102A-0689 PANEL ASM: - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0716

USE 684-0102A-0716 PANEL ASM: - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0721

USE 684-0102A-4044 PANEL ASM: - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0459A

Hex Bolt 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

22

Cub Cadet 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-0116

Jam Nut

$4.99

$

In Stock, Qty 6

0

25

Cub Cadet 784-5682

Handle Suppt. Bracket 3/8 RH
(Superseded to 784-5682-0637)

Variations

Cub Cadet 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 732-0145

Spring

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-0193

Spring

$4.99

$

In Stock, Qty 6

0

29

Cub Cadet 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

30

Cub Cadet 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

31

Cub Cadet 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 784-5681

Handle Suppt. Bracket 3/8 LH

Variations

Cub Cadet 784-5681-0637

USE 784-5681 BRACKET-HANDLE S - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-0509

Special Washer

$6.99

$

In Stock, only 1 left!

0

34

Cub Cadet 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 748-0362

Cam: Handle Lock

$7.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 748-0363

Pawl: Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

Cub Cadet 784-5619A-0637

USE 753-05395 KIT-SHIFT HANDL - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 784-5679

Handle Suppt. Bracket 5/8 LH
(Superseded to 784-5679-0637)

Variations

Cub Cadet 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0
