1345 SWE (31AE993J100) - Cub Cadet 45" Snow Thrower (2002) Axle & Frame Support Bracket (S/N XXXXX - XXXXX) Parts Diagram

45" Snow Thrower

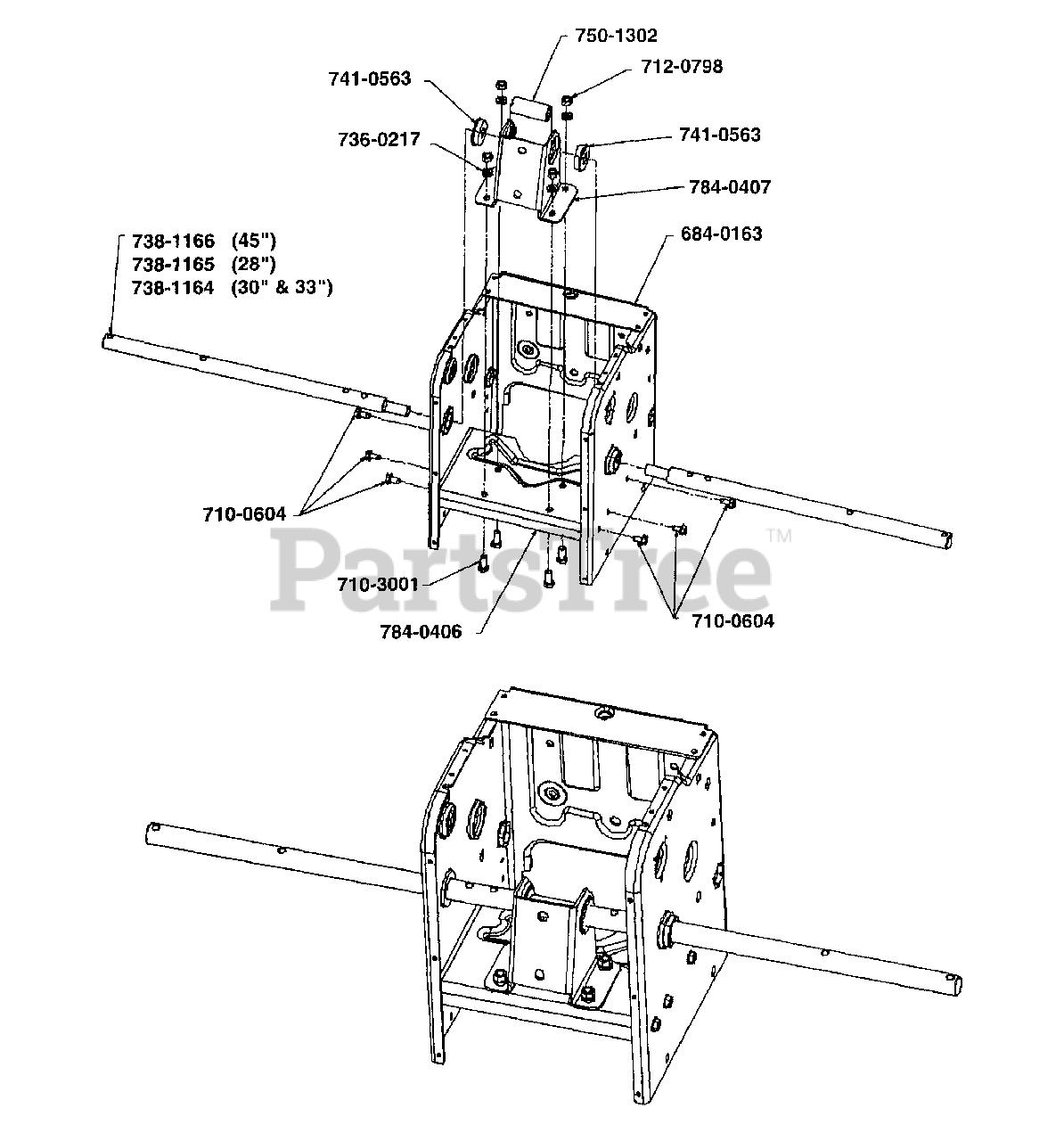

Axle & Frame Support Bracket (S/N XXXXX - XXXXX) Parts Diagram

  • Title

684-0163

Cub Cadet 684-0163

Trans. Frame

Variations

Cub Cadet 684-0163-0637

FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0163-0662

FRAME ASM-TRANS - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0163-0665

FRAME ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0163-0716

FRAME ASSEMBLY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

710-0604

Cub Cadet 710-0604

Screw
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

710-3001

Cub Cadet 710-3001

Bolt

$7.49

$

In Stock, Qty 9

0

712-0798

Cub Cadet 712-0798

Nut

$4.49

$

In Stock, only 2 left!

0

736-0217

Cub Cadet 736-0217

Lock Washer

$4.49

$

In Stock, Qty 9

0

738-1164

Cub Cadet 738-1164

Axle, 30" & 33" Housing
(Superseded to 738-1164A)

$74.99

$

Usually ships in 3-6 days

0

738-1165

Cub Cadet 738-1165

Axle, 28" Housing

$

$

Currently unavailable

738-1166

Cub Cadet 738-1166

Axle, 45" Housing
(Superseded to 738-1166A)

$160.99

$

Usually ships in 3-6 days

0

750-1302

Cub Cadet 750-1302

Spacer
(Superseded to 750-1302B)

$47.99

$

In Stock, only 1 left!

0

741-0563

Cub Cadet 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

784-0406

Cub Cadet 784-0406

Frame Support Bracket
(Superseded to 784-0406A-0637)

Variations

Cub Cadet 784-0406-0637

USE 784-0406A-0637 BRACKET-SU - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

784-0407

Cub Cadet 784-0407

Axle Support Bracket
(Superseded to 784-0407-0637)

Variations

Cub Cadet 784-0407-0637

BRACKET-SUPPORT AXLE - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0
