1345 SWE (31AE993J100) - Cub Cadet 45" Snow Thrower (2001) Blower Housing Parts Diagram

45" Snow Thrower

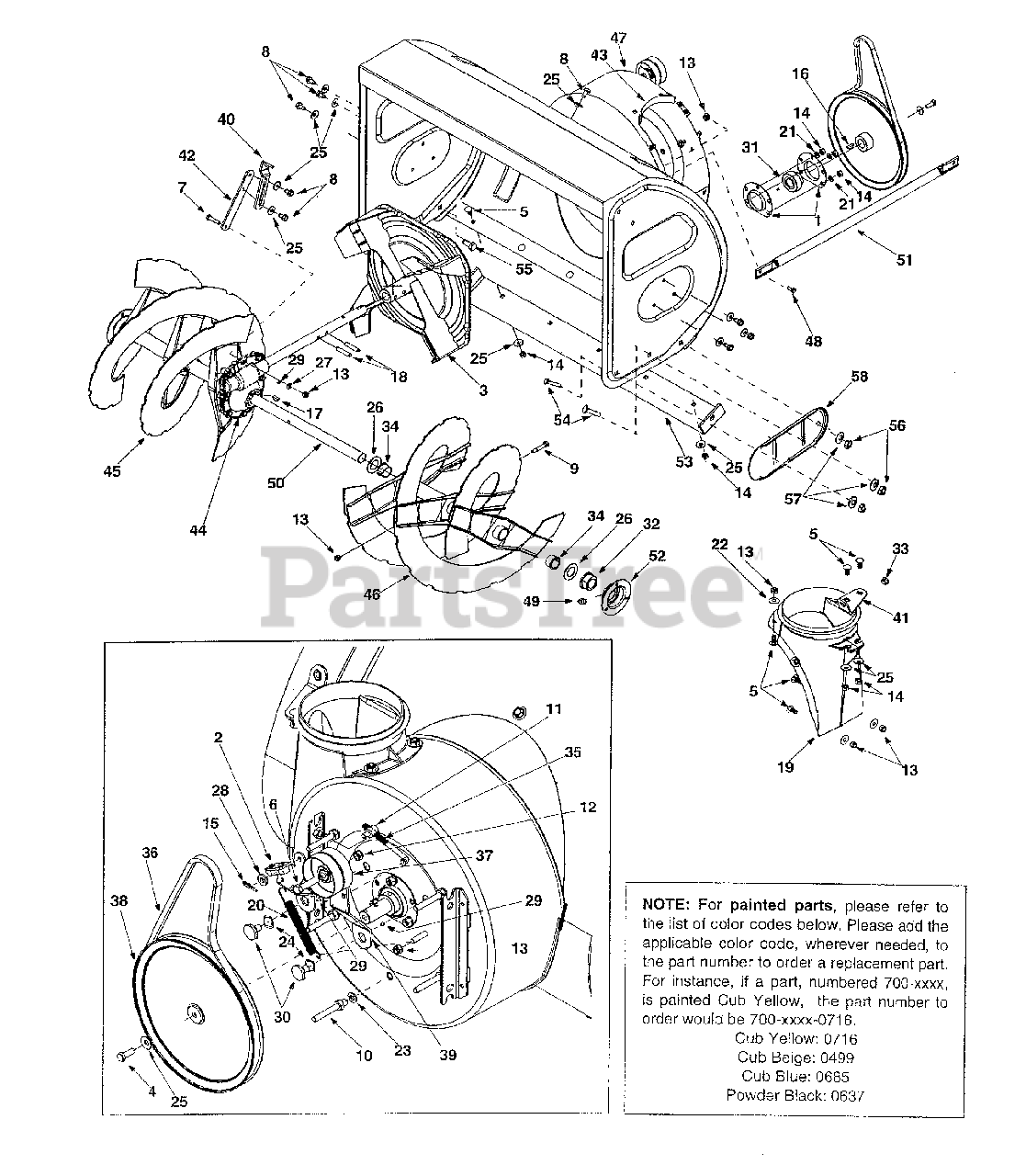

Blower Housing Parts Diagram

  • Title

1

Cub Cadet 05244A

Bearing Housing
(Superseded to 05244B)

$23.99

$

In Stock, only 2 left!

0

2

Cub Cadet 618-0281A

Bracket Assembly: Auger Break
(Superseded to 918-0281A)

$64.99

$

In Stock, only 4 left!

0

3

Cub Cadet 684-0090A

Impeller Assembly: 16"
(Superseded to 684-0090B-0637)

Variations

Cub Cadet 684-0090A-0637

USE 684-0090B-0637 IMPELLER A - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 710-0371

Hex Lock Bolt 5/16-18 x .875"
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

5

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .750"

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0459A

Hex Screw, Special 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-0528

Hex Screw 5/16-18 x 1.25"

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0604

Self-Tapp. Screw 5/16-18 x .625"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0891

Shear Bolt 5/16-18 x 1.75"

$7.49

$

In Stock, Qty 16

0

10

Cub Cadet 711-0640

Stud

$7.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

12

Cub Cadet 712-0116

Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0126

Key

$4.99

$

In Stock, Qty 16

0

17

Cub Cadet 714-0135

Key

$4.99

$

In Stock, only 2 left!

0

18

Cub Cadet 715-0118

Spiral Pin

$12.99

$

In Stock, Qty 7

0

19

Cub Cadet 731-1696

Chute Adapter
(Superseded to 731-1696B)

$91.99

$

In Stock, Qty 12

0

20

Cub Cadet 732-0858

Extension Spring

$24.99

$

In Stock, Qty 6

0

21

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0174

Wave Washer

$6.99

$

In Stock, Qty 12

0

25

Cub Cadet 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0250

Flat Washer

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0271

Spring Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

28

Cub Cadet 736-3008

Flat Washer
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 737-3007

Grease

$

$

Currently unavailable

30

Cub Cadet 738-0281

Shoulder Screw

$10.99

$

In Stock, Qty 7

0

31

Cub Cadet 741-0185

Self-Aligning Bearing
(Superseded to 941-0185)

$66.99

$

In Stock, only 1 left!

0

32

Cub Cadet 741-0192

Flange Bearing w/ Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

33

Cub Cadet 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 741-0494

Flange Bushing

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 747-0980

Idler Rod: Auger
(Superseded to 747-0980A)

$47.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 754-0222

V-Belt
(Superseded to 954-0222A)

$40.99

$

In Stock, Qty 11

0

37

Cub Cadet 756-0178

Flat Idler

$20.99

$

In Stock, Qty 6

0

38

Cub Cadet 756-0243

Pulley

$94.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 784-0385A

Idler Bracket: Auger
(Superseded to 784-0385D)

Variations

Cub Cadet 784-0385A-0637

Idler Auger Bracket - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

$29.99

$

In Stock, only 1 left!

0

40

Cub Cadet 784-5076

Support Bracket
(Superseded to 784-5076-0637)

Variations

Cub Cadet 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 784-5123

Chute Crank Bracket
(Superseded to 784-5123-0637)

Variations

Cub Cadet 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

42

Cub Cadet 784-5710

Support Plate
(Superseded to 784-5710-0637)

Variations

Cub Cadet 784-5710-0637

PLATE-SUPPORT - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 784-5711

Chute Bracket
(Superseded to 784-5711-0637)

Variations

Cub Cadet 784-5711-0498

Chute Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5711-0637

Chute Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

44

Cub Cadet 618-0436

Gear Assembly: Auger w/ Grease Fitting

$710.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 684-0072

Spiral Assembly RH
(Superseded to 684-04196-0637)

Variations

Cub Cadet 684-0072-0498

Spiral Assembly, RH 45" - OLD CUB YELLOW (0498)

$291.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0072-0716

Spiral Assembly, RH 45" - CUB YELLOW-99 (0716)

$291.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0072-0637

USE 684-04196-0637 SPIRAL ASM - POWDER BLACK (0637)

$291.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0072-0650

USE 684-04196-0650 SPIRAL ASM - RED METALLIC (0650)

$291.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0072-0662

USE 684-04196-0662 SPIRAL ASM - OYSTER GRAY (0662)

$291.99

$

Usually ships in 3-6 days

0

$291.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 684-0073

Spiral Assembly LH
(Superseded to 684-04197)

Variations

Cub Cadet 684-0073-0498

Spiral Assembly, LH 45" - OLD CUB YELLOW (0498)

$284.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0073-0716

Spiral Assembly, LH 45" - CUB YELLOW-99 (0716)

$284.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0073-0637

USE 684-04197-0637 SPIRAL ASM - POWDER BLACK (0637)

$284.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0073-0650

USE 684-04197-0650 SPIRAL ASM - RED METALLIC (0650)

$284.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0073-0662

USE 684-04197-0662 SPIRAL ASM - OYSTER GRAY (0662)

$284.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 684-0155

Auger Housing Assembly
(Superseded to 684-0155A)

Variations

Cub Cadet 684-0155-0498

USE 684-0155A-0716 HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0155-0662

USE 684-0155A-0662 HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0155-0665

45" HOUSING ASSEMBLY (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0155-0716

USE 684-0155A-0716 HOUSING AS - CUB YELLOW-99 (0716)

$

$

Not available

$

$

48

Cub Cadet 710-3008

Hex Screw 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 738-0492

Spiral Axle

$205.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 749-1117

Support Tube

Variations

Cub Cadet 749-1117-0637

TUBE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-1117-0716

TUBE-SUPPORT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

52

Cub Cadet 784-0315

Bearing Housing
(Superseded to 784-0315A-0637)

Variations

Cub Cadet 784-0315-0637

Housing Bearing - POWDER BLACK (0637)

$

$

Not available

$

$

53

Cub Cadet 784-5696

Shave Plate
(Superseded to 790-00280-0637)

Variations

Cub Cadet 784-5696-0498

Shave Plate, 45" Black - OLD CUB YELLOW (0498)

$60.99

$

In Stock, only 4 left!

0

Cub Cadet 784-5696-0637

Shave Plate, 45" Black - POWDER BLACK (0637)

$60.99

$

In Stock, only 4 left!

0

Cub Cadet 784-5696-0650

Shave Plate, 45" Black - RED METALLIC (0650)

$60.99

$

In Stock, only 4 left!

0

Cub Cadet 784-5696-0716

Shave Plate, 45" Black - CUB YELLOW-99 (0716)

$60.99

$

In Stock, only 4 left!

0

$60.99

$

In Stock, only 4 left!

0

54

Cub Cadet 710-0389

Carriage Screw

$4.49

$

In Stock, Qty 10

0

55

Cub Cadet 710-3168

Carriage Bolt

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

57

Cub Cadet 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 784-5697

Slide Shoe

Variations

Cub Cadet 784-5697-0498

Snow Skid Shoe, Yellow - OLD CUB YELLOW (0498)

$44.99

$

In Stock, only 4 left!

0

Cub Cadet 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$44.99

$

In Stock, only 4 left!

0

Cub Cadet 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$44.99

$

In Stock, Qty 7

0

Cub Cadet 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$44.99

$

In Stock, only 4 left!

0

Cub Cadet 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$44.99

$

In Stock, only 4 left!

0

Cub Cadet 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$44.99

$

In Stock, only 4 left!

0

Cub Cadet 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$44.99

$

In Stock, only 4 left!

0

Cub Cadet 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$44.99

$

In Stock, only 4 left!

0

Cub Cadet 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$44.99

$

In Stock, only 4 left!

0

$45.99

$

Usually ships in 3-6 days

0
