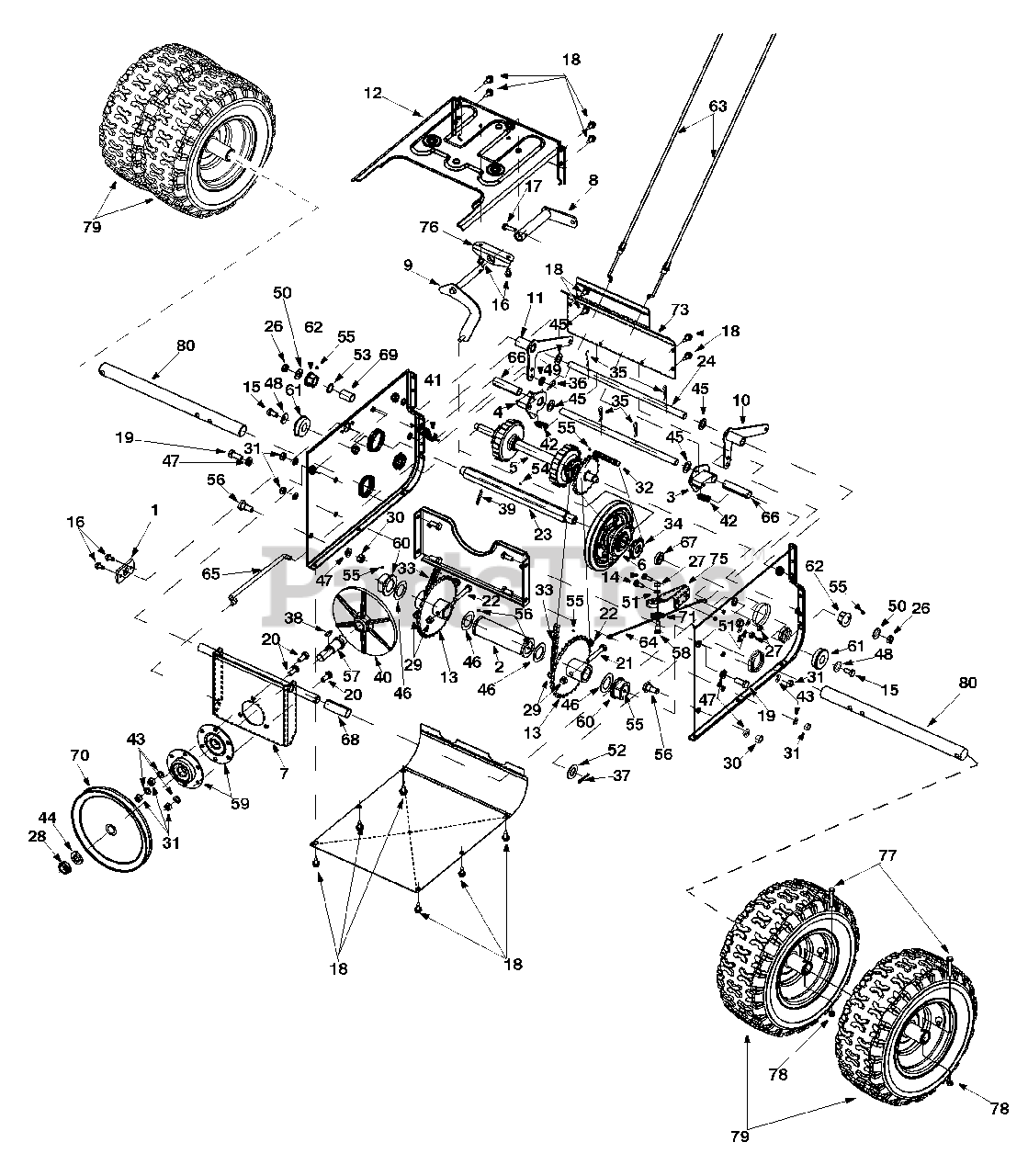

1345 SWE (31AE993J100) - Cub Cadet 45" Snow Thrower (2000) Frame/Drive/Wheels Parts Diagram

45" Snow Thrower

Frame/Drive/Wheels Parts Diagram

  • Title

1

Cub Cadet 05523

Support Bracket: Pivot

$

$

Not available

2

Cub Cadet 618-0278

Bush Assembly
(Superseded to 918-0278)

$

$

Not available

3

Cub Cadet 618-0279

Dogg Assembly LH
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-0280

Dogg Assembly RH
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 618-0282B

Shift Assembly
(Superseded to 918-0282E)

$559.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 618-0296A

Wheel Bearing Assembly
(Superseded to 918-0296B)

$207.99

$

Usually ships in 3-6 days

0

Cub Cadet 718-0494

Wheel, Friction
(Superseded to 918-0296B)

$207.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 684-0115

Support Bracket Assembly
(Superseded to 684-0115-0637)

Variations

Cub Cadet 684-0115-0637

SUPPORT ASSY-FRICT - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 684-0116

Shift Arm Assembly

Variations

Cub Cadet 684-0116-0637

ARM ASSEMBLY-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 684-0117

Shift Rod Assembly

$91.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 684-0118

Auger Actuator Bracket Assy.
(Superseded to 684-0118B-0637)

$

$

Not available

11

Cub Cadet 684-0119

Drive Actuator Bracket Assy.
(Superseded to 684-0119B-0637)

Variations

Cub Cadet 684-0119-0637

USE 684-0119B-0637 BRACKET AU - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 684-0120-0498

Frame Assembly

$

$

Not available

13

Cub Cadet 684-0122

Sprocket Assembly

$238.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0195

Hex Screw 1/4-28 x .625"
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-0538

Hex Screw 5/16-18 x .625"

$4.49

$

In Stock, Qty 9

0

16

Cub Cadet 710-0599

TT Screw 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0788

TT Screw 1/4-20 x 1"

$7.49

$

In Stock, only 4 left!

0

18

Cub Cadet 710-1652

TT Screw 1/4-20 x .625"

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3001

Hex Screw 3/8-16 x .880"

$7.49

$

In Stock, Qty 9

0

20

Cub Cadet 710-3008

Hex Screw 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3103

Hex Screw 5/16-18 x 2"

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 710-3180

Hex Screw 5/16-18 x 1.75"

$5.49

$

In Stock, Qty 15

0

23

Cub Cadet 711-1191

Hex Shaft: Drive

$

$

Not available

24

Cub Cadet 711-1193

Actuator Shaft

$

$

Not available

?25

Cub Cadet 711-1194

Actuator Drive Shaft

$

$

Not available

26

Cub Cadet 712-0116

Lock Nut

$4.99

$

In Stock, Qty 6

0

27

Cub Cadet 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-0221

Jam Lock Nut

$

$

Not available

29

Cub Cadet 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 713-0284

Chain

$24.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 713-0286

Chain

$66.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 713-0413

Sprocket

$12.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

36

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 714-0115

Cotter Pin

$3.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 714-0388

Key
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

39

Cub Cadet 715-0249

Roll Pin
(Superseded to 915-0249)

$6.99

$

In Stock, only 2 left!

0

40

Cub Cadet 717-0302

Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

41

Cub Cadet 732-0121

Extension Spring
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

42

Cub Cadet 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

43

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0158

Lock Washer 5/8

$4.49

$

In Stock, only 1 left!

0

45

Cub Cadet 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

46

Cub Cadet 736-0163

Flat Washer

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0217

Lock Washer

$4.49

$

In Stock, Qty 9

0

48

Cub Cadet 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

52

Cub Cadet 736-0623

Flat Washer
(Superseded to 736-0187)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0639

Flat Washer

$

$

Not available

54

Cub Cadet 737-0170

Lubricant

$

$

Currently unavailable

55

Cub Cadet 737-3007

Grease

$

$

Currently unavailable

56

Cub Cadet 738-0143

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 738-0279

Spindle: Drive Plate

$57.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 738-0924

Shoulder Screw 1/4-28 x .375"
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

59

Cub Cadet 741-0163A

Bearing Housing Assembly

$48.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 741-0192

Flange Bearing
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

61

Cub Cadet 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

62

Cub Cadet 741-1111

Hex Flange Bearing

$9.99

$

In Stock, only 3 left!

0

63

Cub Cadet 746-0949

Steer Cable
(Superseded to 746-0949A)

$52.99

$

In Stock, only 1 left!

0

64

Cub Cadet 746-0951

Idler Cable: Auger
(Superseded to 946-0951A)

$45.99

$

In Stock, only 4 left!

0

65

Cub Cadet 747-0973

Clutch Rod: Drive

$48.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 750-0903

Split Spacer
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 750-0997

Spacer
(Superseded to 950-0997)

$6.99

$

In Stock, only 4 left!

0

68

Cub Cadet 750-1097

Split Spacer

$

$

Not available

69

Cub Cadet 750-1196

Spacer

$

$

Not available

70

Cub Cadet 756-0344

Drive Pulley

$81.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 756-0625

Roller Cable

$9.49

$

In Stock, Qty 16

0

?72

Cub Cadet 784-0377

Frame Support Bracket
(Superseded to 784-0377-0637)

Variations

Cub Cadet 784-0377-0637

SUPPORT-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

73

Cub Cadet 784-0379

Frame Cover: Upper

Variations

Cub Cadet 784-0379-0498

USE 790-00257-0716 COVER:UPPE - OLD CUB YELLOW (0498)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0379-0638

USE 790-00257-0638 COVER:UPPE - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0379-0716

USE 790-00257-0716 COVER:UPPE - CUB YELLOW-99 (0716)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0379-0650

USE 790-00257-0650 COVER:UPPE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-0379-0662

UPPER FRAME COVER - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0379-0665

UPPER FRAME COVER - YARDMAN GREEN (0665)

$

$

Not available

$13.99

$

Usually ships in 3-6 days

0

?74

Cub Cadet 784-0380

Frame Cover: Lower

Variations

Cub Cadet 784-0380-0498

USE 784-0380-0637 COVER-LOWER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0380-0637

COVER-LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0380-0638

USE 784-0380-0637 COVER-LOWER - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0380-0650

USE 784-0380-0637 COVER-LOWER - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-0380-0662

USE 784-0380-0637 COVER-LOWER - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0380-0665

USE 784-0380-0637 COVER-LOWER - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-0380-0716

USE 784-0380-0637 COVER-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

75

Cub Cadet 784-0384

Auger Cable Bracket
(Superseded to 784-0384-0637)

Variations

Cub Cadet 784-0384-0637

GUIDE-AUGER CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

76

Cub Cadet 784-5590

Bracket: Shift - Frame

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 710-3103

Hex Screw 5/16-18 x 2"

$4.49

$

In Stock, only 4 left!

0

78

Cub Cadet 712-0429

Lock Nut

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 734-1593

Wheel
(Superseded to 734-1593A)

Variations

Cub Cadet 734-1593-0911

USE 734-1593A-0911 WHEEL-COMP - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 734-1593-0931

WHEEL ASSEMBLY - Carlisle Beige (0931)

$

$

Not available

Cub Cadet 734-1593-0941

USE 734-1593A-0941 WHEEL-COMP - Carlisle Yellow (0941)

$

$

Not available

$225.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 738-1137

Axle: Wheel

$

$

Not available
