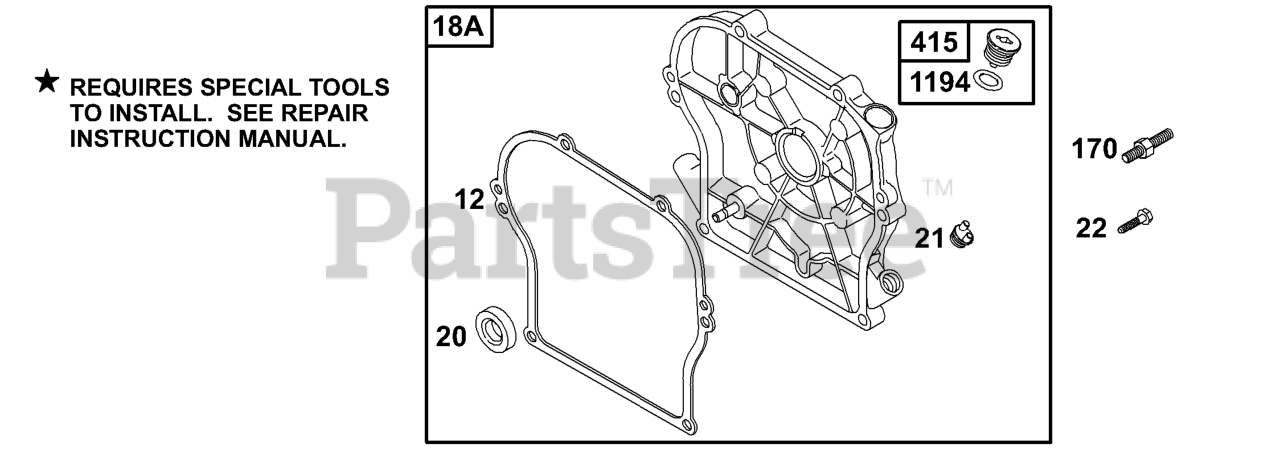

134202-0114-02 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Parts Diagram

Horizontal Engine

Crankcase Cover/Sump Parts Diagram

  • Title
12

Briggs & Stratton 692213

Gasket-Crankcase

Note: (.015" Thick)

$3.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 270125

Gasket-Crankcase

Note: (.005" Thick)

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270126

Gasket-Crankcase

Note: (.009" Thick)

$8.49

$

In Stock, only 2 left!

0

18A

Briggs & Stratton 694350

Cover-Crankcase

$149.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 294606S

Seal-Oil

Note: (PTO Side) (PTO Side)

$9.49

$

In Stock, Qty 11

0

21

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691129

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, Qty 6

0

170

Briggs & Stratton 691120

Stud

Note: (Crankcase Cover/Sump)

$12.99

$

Usually ships in 2-12 days

0

$10.99

$

Usually ships in 2-12 days

0

1194

Briggs & Stratton 691876

Seal-O Ring

Note: (Plug)

$5.49

$

In Stock, Qty 11

0
