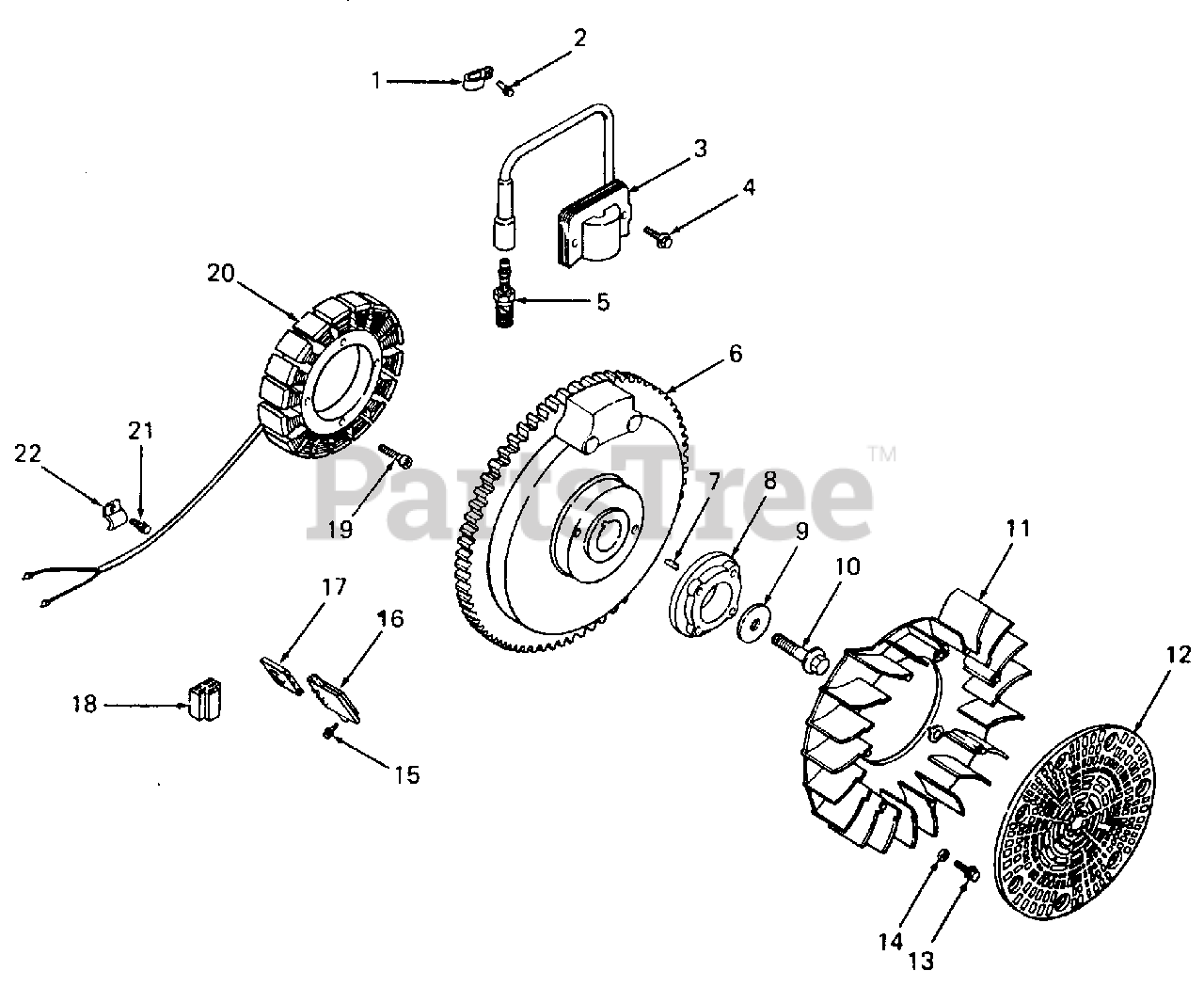

1340 (141-631-100) - Cub Cadet Garden Tractor Ignition Parts Diagram

Garden Tractor

Ignition Parts Diagram

  • Title

1

Cub Cadet KH-X-728-1

Clip, Kill Lead

$

$

Not available

2

Cub Cadet KH-SM-0545010

Screw, Lead Clip, M5 X 0.8 X 10
(Superseded to KH-M-0545010)

$

$

Not available

3

Cub Cadet KH-12-584-01

Module, Ignition
(Superseded to KH-12-584-04)

$32.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-SM-0545020

Screw, Ignition Module, M5 X 0.8 X 20

$

$

Not available

5

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-12-025-07

Flywheel

$

$

Not available

7

Cub Cadet KH-X-42-15

Key

$

$

Not available

8

Cub Cadet KH-12-109-04

Cup, Drive

$

$

Currently unavailable

9

Cub Cadet KH-52-468-15

Washer, Flywheel, 1-3/8 OD
(Superseded to KH-12-468-03)

$

$

Not available

10

Cub Cadet KH-SM-1040045

Screw, Flywheel, M10 X 1.5 X 45.8

$

$

Not available

11

Cub Cadet KH-12-157-01

Fan
(Superseded to KH-12-157-03-S)

$

$

Not available

12

Cub Cadet KH-12-162-05

Screen, Grass

$

$

Not available

13

Cub Cadet KH-SM-0639016

Screw, Fan, M6 X 1.0 X 16
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-12-112-01

Spacer, Fan
(Superseded to KH-25-086-47)

$

$

Not available

15

Cub Cadet KH-SM-0639016

Screw, Rectifier-Regulator, M6 X 1.0 X 16
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-41-403-09

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$

$

Not available

17

Cub Cadet KH-236602

Connector, Rectifier-Regulator (3 Contact)
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-48-155-01

Connector (5 Contact)

$

$

Not available

19

Cub Cadet KH-SM-0544025

Screw, Stator Mounting, M5 X 0.8 X 25

$

$

Not available

20

Cub Cadet KH-41-085-07

Stator, 15 Amp
(Superseded to KH-237878)

$

$

Not available

21

Cub Cadet KH-SM-0545010

Screw, Stator Harness Clip, M5 X 0.8 X 10
(Superseded to KH-M-0545010)

$

$

Not available

22

Cub Cadet KH-12-154-02

Clip, Stator Harness

$

$

Not available

Cub Cadet KH-12-518-01

Lead, White, Ground to Kill

Note: (9-1/2"-18 gauge-fully insulated push-on tab & uninsulated push-on tab term

$

$

Not available

Cub Cadet KH-25-518-08

Lead, Black, Rectifier to Connector

Note: (11"-14 gauge-uninsulated push-on tab terminals)

$

$

Not available
