1340 (141-631-100) - Cub Cadet Garden Tractor Engine Mounting Parts Diagram

Garden Tractor

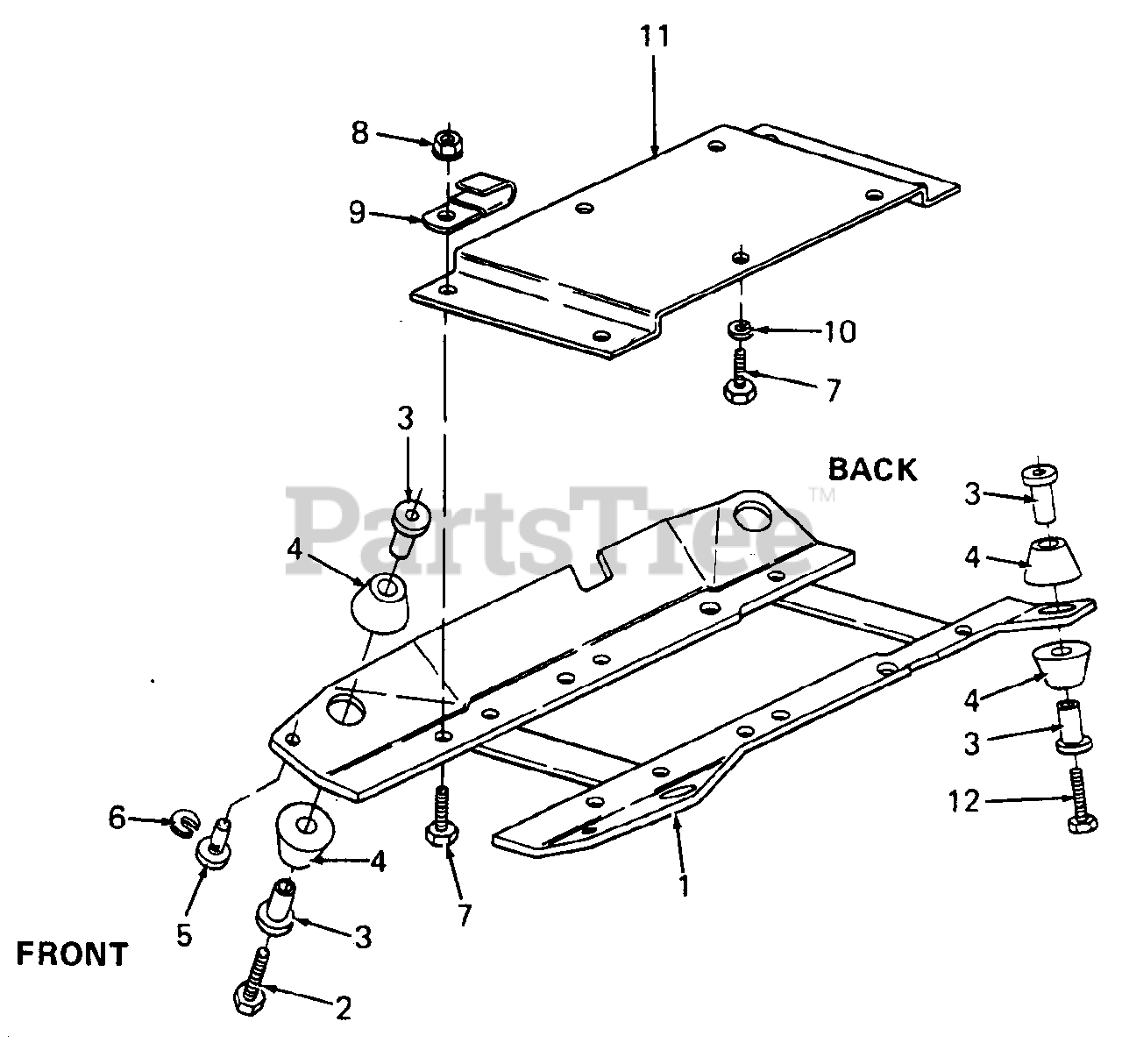

Engine Mounting Parts Diagram

  • Title

1

Cub Cadet 703-0559

Cradle, Engine Mount

$

$

Not available

2

Cub Cadet 710-3222

Screw, Pan Hd Mach, 3/8-16 X 2.5 Lg GR2

$

$

Not available

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 722-3003

Insert, Rubber Mount

$

$

Not available

4

Cub Cadet 722-3002

Mount, Rubber

$

$

Currently unavailable

5

Cub Cadet 722-3004

Bumper, Snubbing
(Superseded to IH-61510-C1)

$27.99

$

In Stock, only 3 left!

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 19

0

6

Cub Cadet 703-0044

Shim, Snubbing Mount

$

$

Not available

7

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3005

Nut, Hex Flange Lock

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 703-1987

Plate, Engine Mtg

Variations

Cub Cadet 703-1987-0637

ENGINE PLATE MTG - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2.25 Lg GR5

$6.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0
