1340 (140-631-100) - Cub Cadet Garden Tractor PTO Clutch Parts Diagram

Garden Tractor

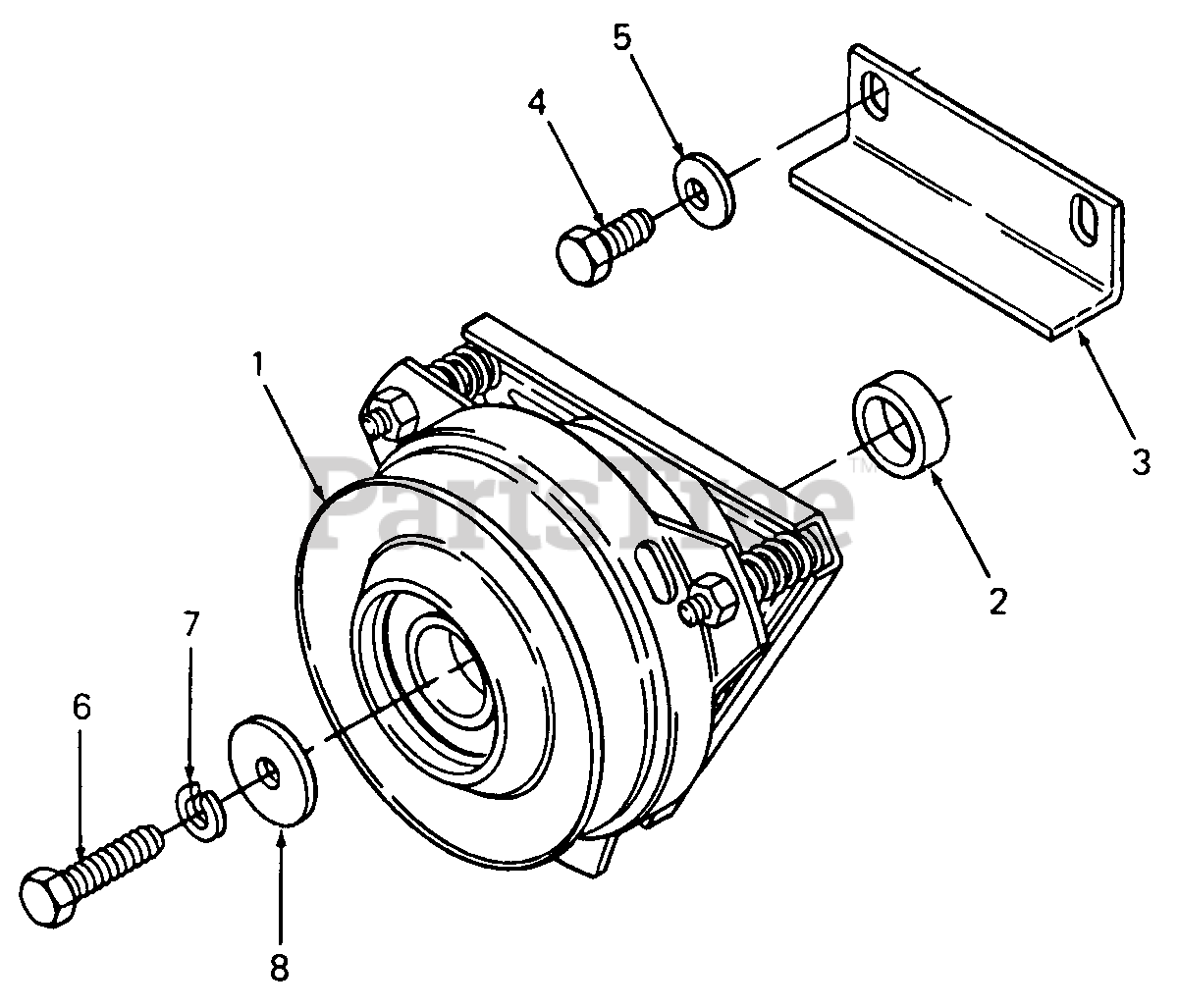

PTO Clutch Parts Diagram

  • Title
1

Cub Cadet 717-3035

Clutch, PTO
(Superseded to 717-3467)

Note: (For Component Parts see PTO Clutch Breakdown)

$830.99

$

In Stock, only 1 left!

0

2

Cub Cadet 711-3301

Spacer, 1.0 X 1.37 X .47 Lg

$

$

Not available

3

Cub Cadet 703-1986

Bracket, Torque
(Superseded to 703-1986A-0637)

$

$

Not available

4

Cub Cadet 710-3030

Screw, Hex Cap, 7/16-14 X .75 Lg GR5

$

$

Not available

5

Cub Cadet 736-0407

Washer, Bell, .45 X 1.0 X .062 Thk

$3.99

$

In Stock, Qty 11

0

6

Cub Cadet 710-0757

Screw, Hex Cap, 7/16-20 X 1.5 Lg GR5

$9.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 5

0

8

Cub Cadet 736-3017

Washer, Flat, .47 X 1.5 X .225 Thk

$10.99

$

In Stock, only 4 left!

0
