1340 (140-631-100) - Cub Cadet Garden Tractor Engine Controls Parts Diagram

Garden Tractor

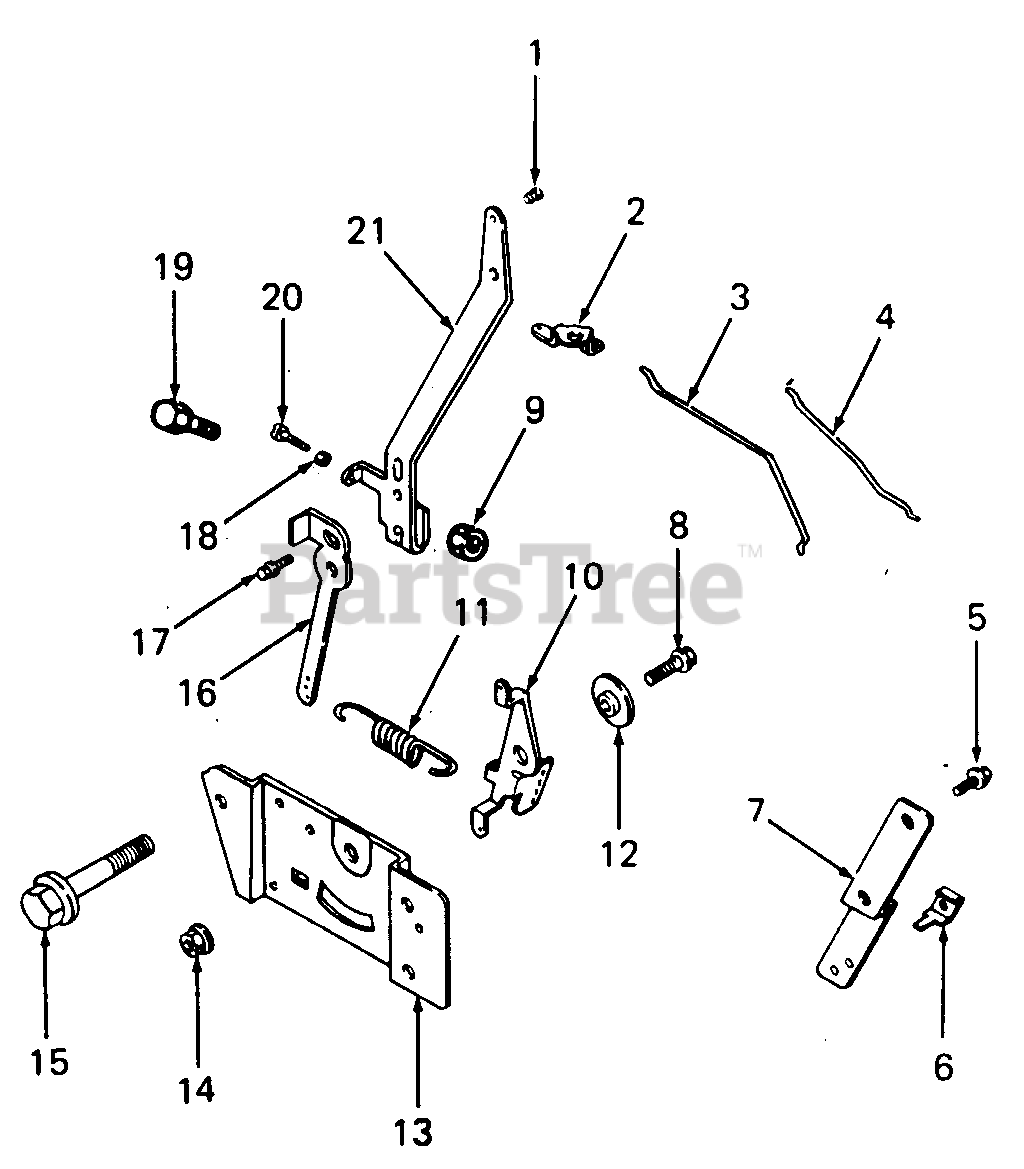

Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-12-090-14

Lever, Choke

$

$

Not available

3

Cub Cadet KH-12-079-05

Linkage, Choke
(Superseded to KH-12-079-08)

$

$

Not available

4

Cub Cadet KH-12-079-04

Linkage, Throttle

$

$

Not available

5

Cub Cadet KH-SM-0545010

Screw, Choke Lever, M5 X 0.8 X 10
(Superseded to KH-M-0545010)

$

$

Not available

6

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet KH-12-126-15

Bracket, Choke Mount

$

$

Not available

8

Cub Cadet KH-SM-0545016

Screw, M8 X 0.8 X 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

9

Cub Cadet KH-SM-0641060

Nut, Governor Arm, M6 X 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 6

0

10

Cub Cadet KH-12-090-13

Lever, Throttle

$

$

Not available

11

Cub Cadet KH-12-089-17

Spring, Governor

$

$

Not available

12

Cub Cadet KH-12-112-07

Spacer, Shoulder

$

$

Not available

13

Cub Cadet KH-12-146-05

Plate, Control

$

$

Not available

14

Cub Cadet KH-M-0541050

Nut

$

$

Not available

15

Cub Cadet KH-SM-0645020

Screw, Hex Hd, M6 X 1.0 X 20
(Superseded to KH-25-086-396-S)

$2.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-12-090-12

Lever, Governor

$

$

Currently unavailable

17

Cub Cadet KH-SM-0545010

Screw, Governor Lock
(Superseded to KH-M-0545010)

$

$

Not available

18

Cub Cadet KH-SM-0446030

Nut, Hex
(Superseded to KH-M-446030-S)

$2.49

$

In Stock, only 4 left!

0

19

Cub Cadet KH-SM-0642025

Screw, Governor Lock, M6 X 1.0 X 25
(Superseded to KH-M-642025-S)

$2.49

$

In Stock, only 1 left!

0

20

Cub Cadet KH-M-0401025

Screw, Governor Adj

$

$

Currently unavailable

21

Cub Cadet KH-12-090-11

Lever, Governor
(Superseded to KH-12-090-40-S)

$48.99

$

Usually ships in 2-5 days

0
