133Z619G019 - Turf Power Lawn Tractor (1993) (Agway) Electrical/Switches Parts Diagram

Lawn Tractor

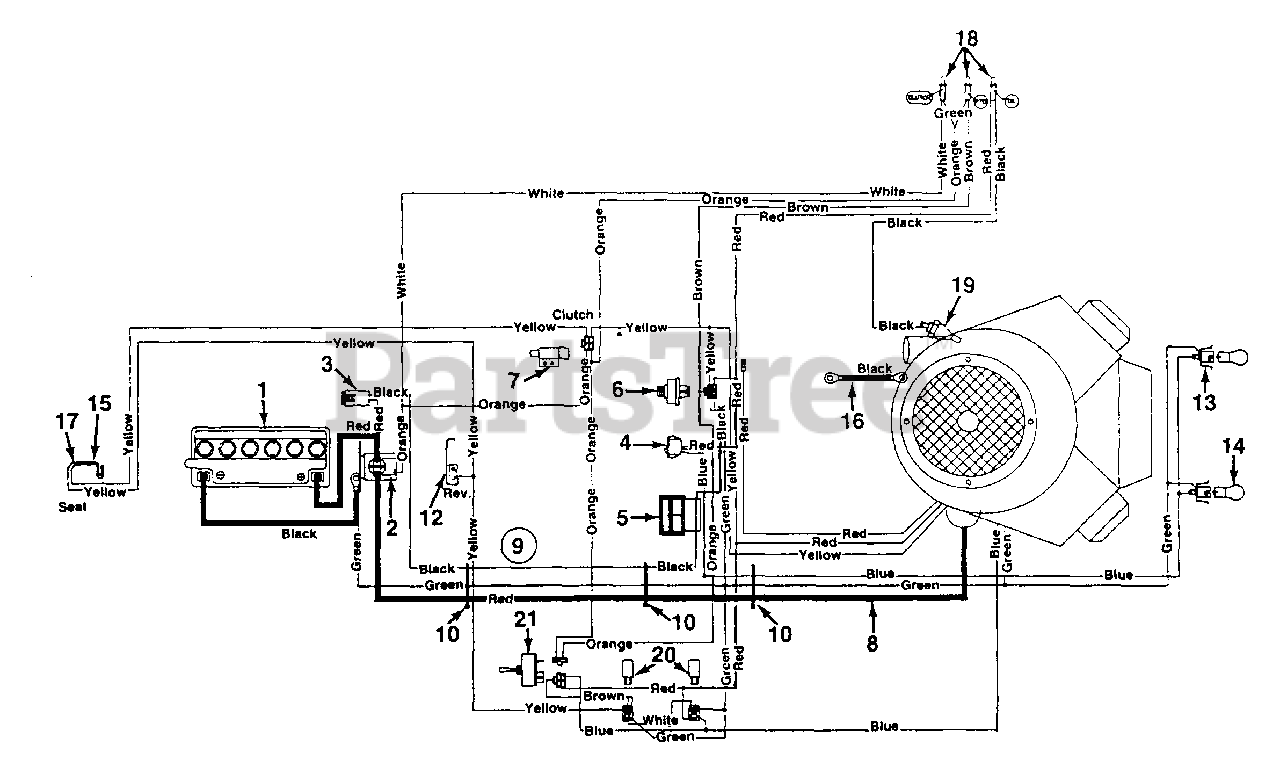

Electrical/Switches Parts Diagram

  • Title

1

MTD 725-1635

Battery
(Superseded to 753-0608)

$

$

Not available

2

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

3

MTD 725-1381

Fuse 20 Amps
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

6

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

7

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

8

MTD 725-1081

Electric Wire 30" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

9

MTD 629-0101

Wire Harness

Note: New Part

$

$

Not available

10

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

12

MTD 725-1643

Safety Switch (Reverse)

$10.99

$

In Stock, only 1 left!

0

13

MTD 725-1650

Socket
(Superseded to 925-1650)

$

$

Not available

14

MTD 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

15

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

16

MTD 725-0980

Ground Wire 7.5" Lg.

$

$

Not available

17

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

18

MTD 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 2 left!

0

19

MTD 751-0537

Oil Switch

$

$

Not available

20

MTD 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

21

MTD 725-0893

PTO Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0
