133M617G000 - MTD Lawn Tractor (1993) Hood Assembly Parts Diagram

Lawn Tractor

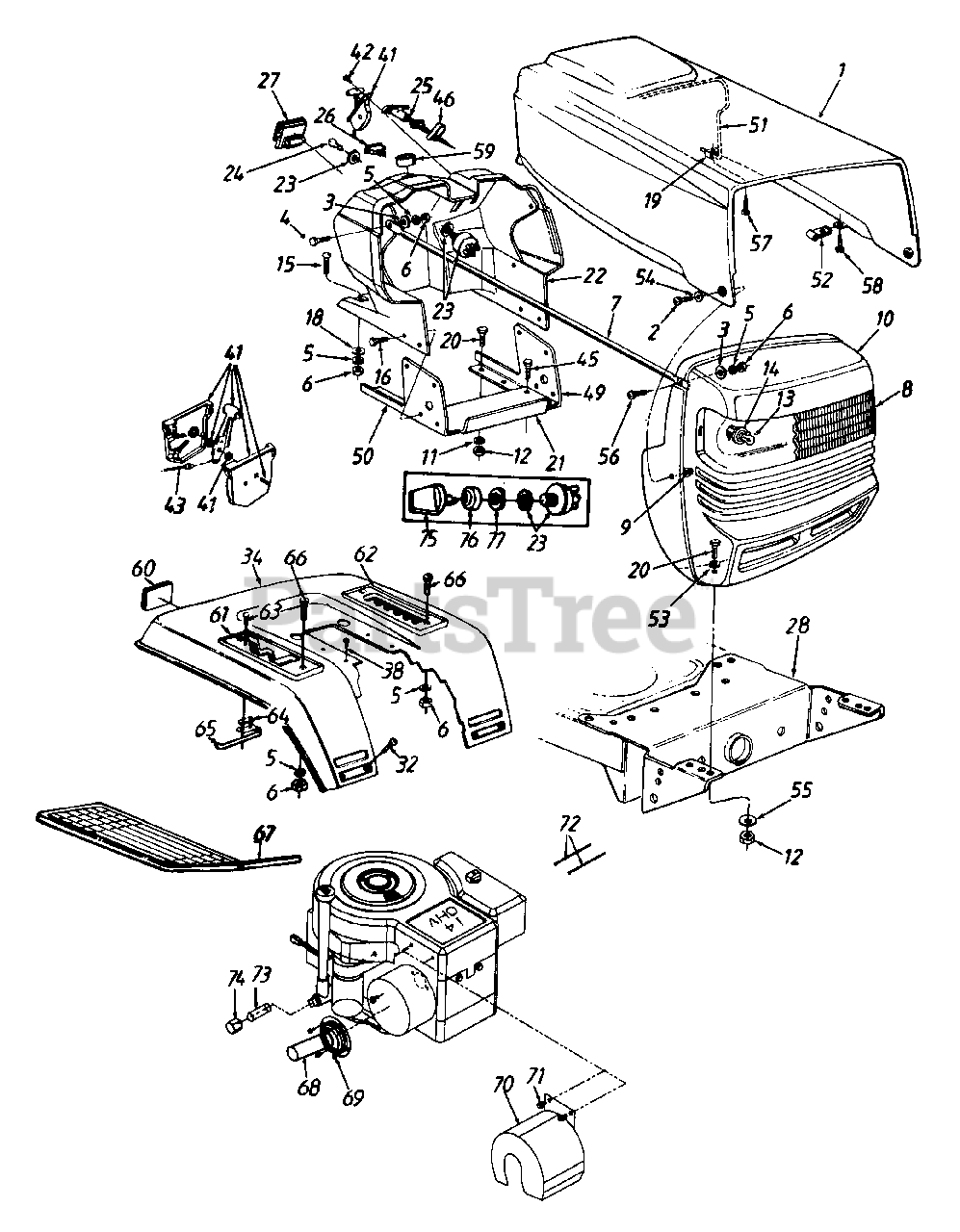

Hood Assembly Parts Diagram

  • Title

1

MTD 783-0020

Hood

Variations

MTD 783-0020-0480

No Longer Available HOOD - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0020-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0020-0498

No Longer Available HOOD - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0020-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

MTD 783-0020-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0020-0638

HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0020-0648

No Longer Available HOOD - TECH GRAY (0648)

$

$

Not available

MTD 783-0020-0660

No Longer Available HOOD - TEAL (0660)

$

$

Not available

MTD 783-0020-0663

No Longer Available HOOD - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0020-0665

No Longer Available HOOD - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0020-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0020-0677

No Longer Available HOOD - GRASS GREEN (0677)

$

$

Not available

MTD 783-0020-0685

No Longer Available HOOD - CUB BLUE (0685)

$

$

Not available

MTD 783-0020-0688

No Longer Available HOOD - SPRING GREEN (0688)

$

$

Not available

MTD 783-0020-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0020-0692

No Longer Available HOOD - AGWAY BLUE (0692)

$

$

Not available

$

$

2

MTD 738-0724

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

3

MTD 736-0342

Fl-Wash. .28" I.D. x .75" O.D.

$7.49

$

Usually ships in 3-6 days

0

4

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 749-0916

Grille Support Rod

Variations

MTD 749-0916-0483

No Longer Available ROD-GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 749-0916-0498

No Longer Available ROD-GRILLE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-0916-0499

No Longer Available ROD-GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 749-0916-0637

No Longer Available ROD-GRILLE - POWDER BLACK (0637)

$

$

Not available

MTD 749-0916-0638

No Longer Available ROD-GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

8

MTD 731-1362

Headlight Lens
(Superseded to 931-1362)

$

$

Not available

9

MTD 712-0380

Flange L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

10

MTD 783-0018

Grille

Note: New Part

Variations

MTD 783-0018-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0018-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0018-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0018-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0018-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0018-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 783-0018-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0018-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

$

$

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

14

MTD 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

15

MTD 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

16

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, only 3 left!

0

19

MTD 726-0130

Speed Nut #10-24 Thd.
(Superseded to 926-0130)

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 17633A

Gas Tank Support Brkt.

Variations

MTD 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 731-1348

Dash
(Superseded to 931-1348)

Note: New Part

$

$

Not available

23

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

24

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

MTD 746-0616A

Choke Control
(Superseded to 946-0616A)

Note: New Part

$26.99

$

In Stock, Qty 5

0

MTD 746-0614A

Choke Control (Twin Cylinder Engine)

$24.99

$

In Stock, only 1 left!

0

26

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

28

MTD 783-0041

Pivot Bar Brkt.
(Superseded to 783-0041C)

Note: New Part

Variations

MTD 783-0041-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

MTD 783-0041-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

MTD 783-0041-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0041-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0041-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0041-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

32

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

MTD 17326B

Fender

Variations

MTD 17326B-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17326B-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17326B-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17326B-0640

No Longer Available FENDER-RR - CO-OP GREEN (0640)

$

$

Not available

MTD 17326B-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17326B-0650

No Longer Available FENDER-RR - RED METALLIC (0650)

$

$

Not available

MTD 17326B-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

MTD 17326B-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

MTD 17326B-0667

No Longer Available FENDER-RR - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

38

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

43

MTD 746-0501

Throttle Control Wire

Note: Used w/Single Cylinder Engine Only.

$17.99

$

In Stock, only 1 left!

0

MTD 746-0634

Throttle Control Wire (Twin Cylinder Engine)
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

45

MTD 710-0603

Hex Wash. Hd. 8-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

46

MTD 17782

Choke Retainer

$

$

Not available

49

MTD 783-0035A

Dash Reinforcement Brkt.- L.H.

Note: New Part

Variations

MTD 783-0035A-0637

No Longer Available BRACKET-DA - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 783-0036A

Dash Reinforcement Brkt.- R.H.

Note: New Part

Variations

MTD 783-0036A-0637

No Longer Available BRACKET-DA - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 732-0714

Hood Spring

$

$

Not available

52

MTD 726-0139

Speed Nut #10-16 Thd.

$6.99

$

In Stock, only 1 left!

0

53

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, only 3 left!

0

54

MTD 736-0413

Spr. Wash. .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

55

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

56

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

57

MTD 710-3009

Pan Hd. Scr. #10-24 x .75" Lg.

$7.49

$

Usually ships in 3-6 days

0

58

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" L.g.

$4.49

$

In Stock, only 2 left!

0

59

MTD 731-1367

Steering Column Brg.

$

$

Not available

60

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: Optional Parts

$17.99

$

In Stock, only 2 left!

0

61

MTD 731-1147

Forward/Reverse Index Brkt.
(Superseded to 931-1147)

$28.99

$

Usually ships in 3-6 days

0

62

MTD 731-1069

7-Speed Index Brkt.
(Superseded to 931-1746)

$

$

Not available

63

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 15

0

64

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

65

MTD 725-1643

Reverse Safety Switch

$10.99

$

In Stock, only 1 left!

0

66

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

67

MTD 731-0909

Foot Pad - L.H.

Note: Optional Parts

$

$

Not available

MTD 731-0910

Foot Pad - R.H.
(Superseded to 735-0689A)

Note: Optional Parts

$

$

Not available

68

MTD 651-0002

Exhaust Pipe Ass'y.

$

$

Not available

69

MTD 710-0148

Hex Wash. Hd. F-Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

70

MTD 683-0043

Heat Shield Ass'y.

$

$

Not available

71

MTD 710-0599

Hex Wash. Hd. Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

72

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

73

MTD 737-0199

Pipe Nipple 3/8-18 NPT x 2" Lg.
(Superseded to 937-0199)

$

$

Not available

74

MTD 737-0143

Cap - Oil Drain

$

$

Not available

75

MTD 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

76

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

77

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

Muffler (Single Cylinder Engines)

$

$

Not available

MTD 751-0302

10, 11, 11.5, 12 & 12.5 H.P. B&S 12 H.P.
(Superseded to 951-0302)

$

$

Not available

MTD 712-0250

Conduit L-Nut

$

$

Not available

MTD 721-0208

Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

MTD 751-0443A

Tecumseh
(Superseded to 951-0443A)

$

$

Not available

MTD 738-0636

Shoulder Bolts
(Superseded to 938-0636)

$

$

Not available
