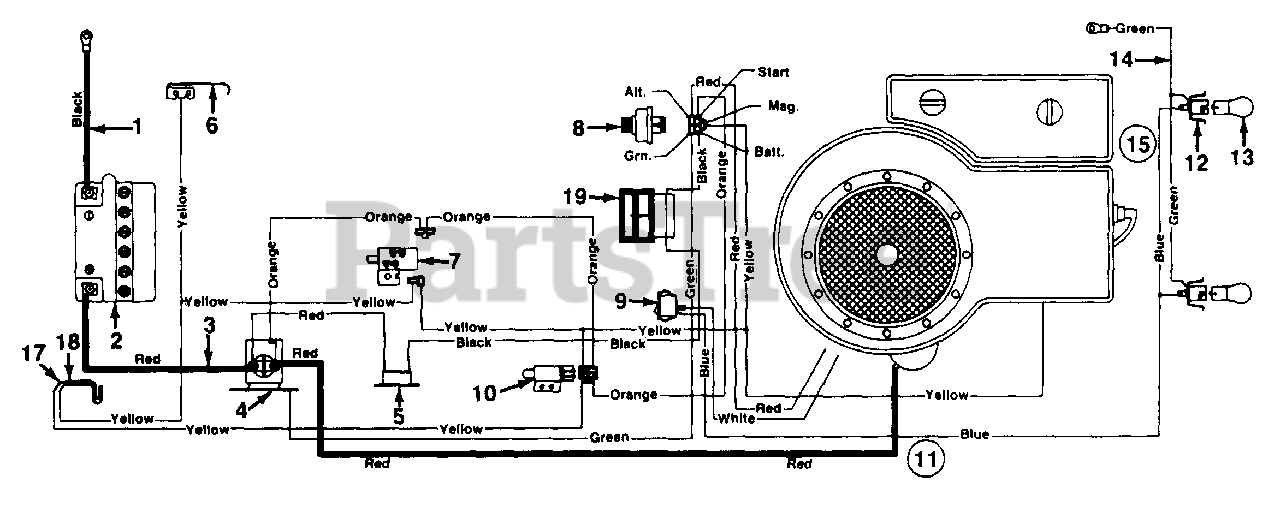

133E452F000 - MTD Lawn Tractor (1993) Electrical/Switches Parts Diagram

Lawn Tractor

Electrical/Switches Parts Diagram

  • Title

1

MTD 725-0976A

Ground Wire

$

$

Not available

2

MTD 725-1633

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

3

MTD 725-1351

Electric Wire - 8.0" Lg.

$

$

Not available

MTD 725-0926

Electric Wire

Note: (Style 1)

$

$

Not available

4

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

5

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

6

MTD 732-0758

Spring Switch (Reverse)
(Superseded to 753-0580)

$

$

Not available

7

MTD 725-0819A

Safety Switch (Deck)
(Superseded to 925-0819A)

$30.99

$

Usually ships in 3-6 days

0

8

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

9

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

10

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

11

MTD 629-0031

Harness (B&S)

$

$

Not available

MTD 629-0032

Harness (Tec.)

$

$

Not available

12

MTD 725-1649

Socket (Sq. Headlights)
(Superseded to 925-1649A)

Note: Style 0, 1

$11.99

$

In Stock, Qty 20+

0

MTD 725-1650

Socket (Sq. Headlights)
(Superseded to 925-1650)

Note: Style 2, 5

$

$

Not available

13

MTD 725-0963

Bulb (Sq. Headlights)
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

14

MTD 725-0916A

Ground Wire

$

$

Not available

15

MTD 629-0084

Headlight Harness (Tec.)

$

$

Not available

MTD 629-0051

Headlight Harness (B&S)

$

$

Not available

?16

MTD 725-0222

Headlight (Round)
(Superseded to 925-0222)

Note: Not Shown)

$58.99

$

In Stock, only 4 left!

0

17

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

18

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

19

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: (Optional)

$31.99

$

In Stock, Qty 6

0
