13387E (1694859) - Snapper 38" Snow Thrower, 13hp (2006) Traction Drive Group Parts Diagram

38" Snow Thrower, 13hp

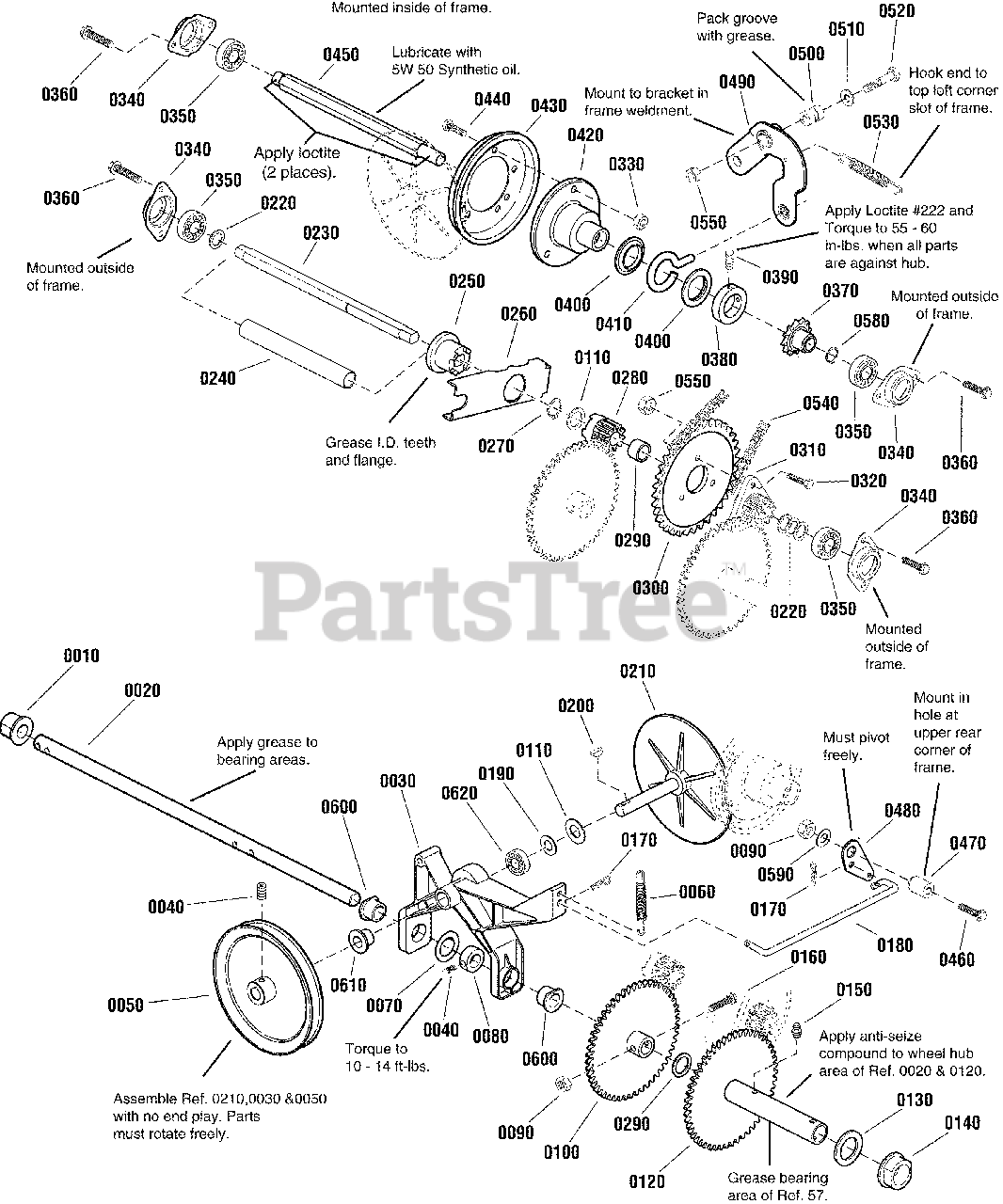

Traction Drive Group Parts Diagram

  • Title

0010

Snapper 1666001SM

BUSHING, 377/100 ID x 1-13/100 OD x 1 LG, Powdered Metal

$6.99

$

In Stock, only 4 left!

0

0020

Snapper 1720299SM

AXLE, Round

$69.99

$

Usually ships in 2-12 days

0

0030

Snapper 1670849SM

ARM, Pivot with Bushings & Bearings
(Superseded to 1755734YP)

$231.99

$

Usually ships in 2-12 days

0

0040

Snapper 1928721SM

SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8

$4.99

$

In Stock, only 3 left!

0

0050

Snapper 1672595SM

PULLEY AND HUB ASSEMBLY
(Superseded to 703147)

$50.99

$

Usually ships in 2-12 days

0

0060

Snapper 1725666SM

SPRING, Extension
(Superseded to 703148)

$5.99

$

Usually ships in 2-12 days

0

0070

Snapper 1919394SM

WASHER
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

0080

Snapper 1729254SM

COLLAR, Set
(Superseded to 703150)

$

$

Not available

0090

Snapper 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0100

Snapper 1720300SM

GEAR AND HUB ASSEMBLY, RH

$286.99

$

Usually ships in 2-12 days

0

0110

Snapper 1960114SM

WASHER, 3/4
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 1730228SM

GEAR AND HUB ASSEMBLY, with Bushings
(Superseded to 1755727YP)

$164.99

$

Usually ships in 2-12 days

0

0130

Snapper 2860169SM

WASHER, 1-47/250

$6.99

$

Usually ships in 2-12 days

0

0140

Snapper 1720305SM

BUSHING, 1-27/200 ID x 1-157/250 OD x 3/4 LG

$16.99

$

In Stock, Qty 8

0

0150

Snapper 2812808SM

FITTING, Lube 1/4-28, Tappered with Check Ball

$4.49

$

In Stock, Qty 20+

0

0160

Snapper 1930570SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G8

$4.49

$

Usually ships in 2-12 days

0

0170

Snapper 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0180

Snapper 1726467SM

ROD, Pivot, 9-15/100 LG

$

$

Not available

0190

Snapper 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0200

Snapper 2818312SM

KEY, Woodruff, 47/250 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

0210

Snapper 1719879SM

DRIVE DISC w/SPINDLE

$90.99

$

In Stock, Qty 6

0

0220

Snapper 2860164SM

WASHER, 5/8

$4.49

$

In Stock, only 3 left!

0

0230

Snapper 1718752SM

JACKSHAFT, Double D

$70.99

$

Usually ships in 2-12 days

0

0240

Snapper 1720298SM

SPRING, Complete

$7.99

$

Usually ships in 2-12 days

0

0250

Snapper 1718689SM

CLUTCH, Sliding, 1/5LG, Powdered Metal

$18.99

$

In Stock, only 1 left!

0

0260

Snapper 1720078ASM

ARM, Clutch
(Superseded to 1720078BMYP)

$23.99

$

Usually ships in 2-12 days

0

0270

Snapper 2827732SM

RING, Retaining Extension
(Superseded to 703979)

$4.49

$

In Stock, Qty 10

0

0280

Snapper 1718688SM

GEAR, Stationary Clutch

$15.99

$

In Stock, only 1 left!

0

0290

Snapper 1679556SM

SPACER, Heat Treated, 31/100 LG
(Superseded to 703154)

$23.99

$

In Stock, only 2 left!

0

0300

Snapper 1667330SM

SPROCKET

$29.99

$

Usually ships in 2-12 days

0

0310

Snapper 1718687SM

GEAR, Double D

$26.99

$

Usually ships in 2-12 days

0

0320

Snapper 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0330

Snapper 1960684SM

NUT, Hex Keps, 5/16-18, Conical Washer
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0340

Snapper 1667341SM

RETAINER, Bearing
(Superseded to 703155)

$5.99

$

In Stock, Qty 15

0

0350

Snapper 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0360

Snapper 1930601SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0370

Snapper 1726931SM

SPROCKET, 10 Tooth

$15.99

$

In Stock, only 1 left!

0

0380

Snapper 1667335SM

COLLAR, Set

$22.99

$

In Stock, only 3 left!

0

0390

Snapper 1724333SM

SCREW, Set Square Head Cup Point, 1/4-20 x 1/2
(Superseded to 703139)

$3.49

$

In Stock, only 2 left!

0

0400

Snapper 1678956SM

COLLAR, Thrust

$5.49

$

In Stock, Qty 5

0

0410

Snapper 1666207SM

PIN, Loop

$12.99

$

In Stock, only 4 left!

0

0420

Snapper 1665995SM

HUB, Friction Disc

$97.99

$

In Stock, only 1 left!

0

0430

Snapper 1725428SM

DISC, Friction with Insert

$46.99

$

In Stock, Qty 20+

0

0440

Snapper 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4 G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0450

Snapper 1736100SM

SHAFT, Hex

$28.99

$

In Stock, only 1 left!

0

0460

Snapper 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0470

Snapper 1666106SM

BUSHING, 11/32 ID x 3/4 OD x 1-3/50 LG
(Superseded to 703121)

$10.99

$

In Stock, only 1 left!

0

0480

Snapper 1700473SM

BELLCRANK

$6.49

$

Usually ships in 2-12 days

0

0490

Snapper 1669256SM

ARM ASSEMBLY, Shift w/Bushing

$33.99

$

Usually ships in 2-12 days

0

0500

Snapper 1666114SM

BUSHING, 19/50 ID x 3/4 OD x 1-3/100 LG
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

0510

Snapper 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0520

Snapper 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0530

Snapper 1668255SM

SPRING, Extension
(Superseded to 703157)

$4.49

$

In Stock, Qty 10

0

0540

Snapper 1666980SM

CHAIN, Roller

$34.99

$

Usually ships in 2-12 days

0

0550

Snapper 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0580

Snapper 1736222YP

RING, Retaining External #87

$4.99

$

In Stock, only 1 left!

0

0590

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0600

Snapper 1666425SM

BUSHING, 3/4 ID x 1 OD x 3/4 LG, Powdered Metal

$20.99

$

In Stock, Qty 20+

0

0610

Snapper 1666855SM

BUSHING, 5/8 ID x 13/16 OD x 3/4 LG, Powdered Metal

$11.99

$

In Stock, Qty 7

0

0620

Snapper 1665521SM

BEARING, Ball

$16.99

$

In Stock, only 2 left!

0
