13387E (1694859) - Snapper 38" Snow Thrower, 13hp (2006) Engine and Frame Group Parts Diagram

38" Snow Thrower, 13hp

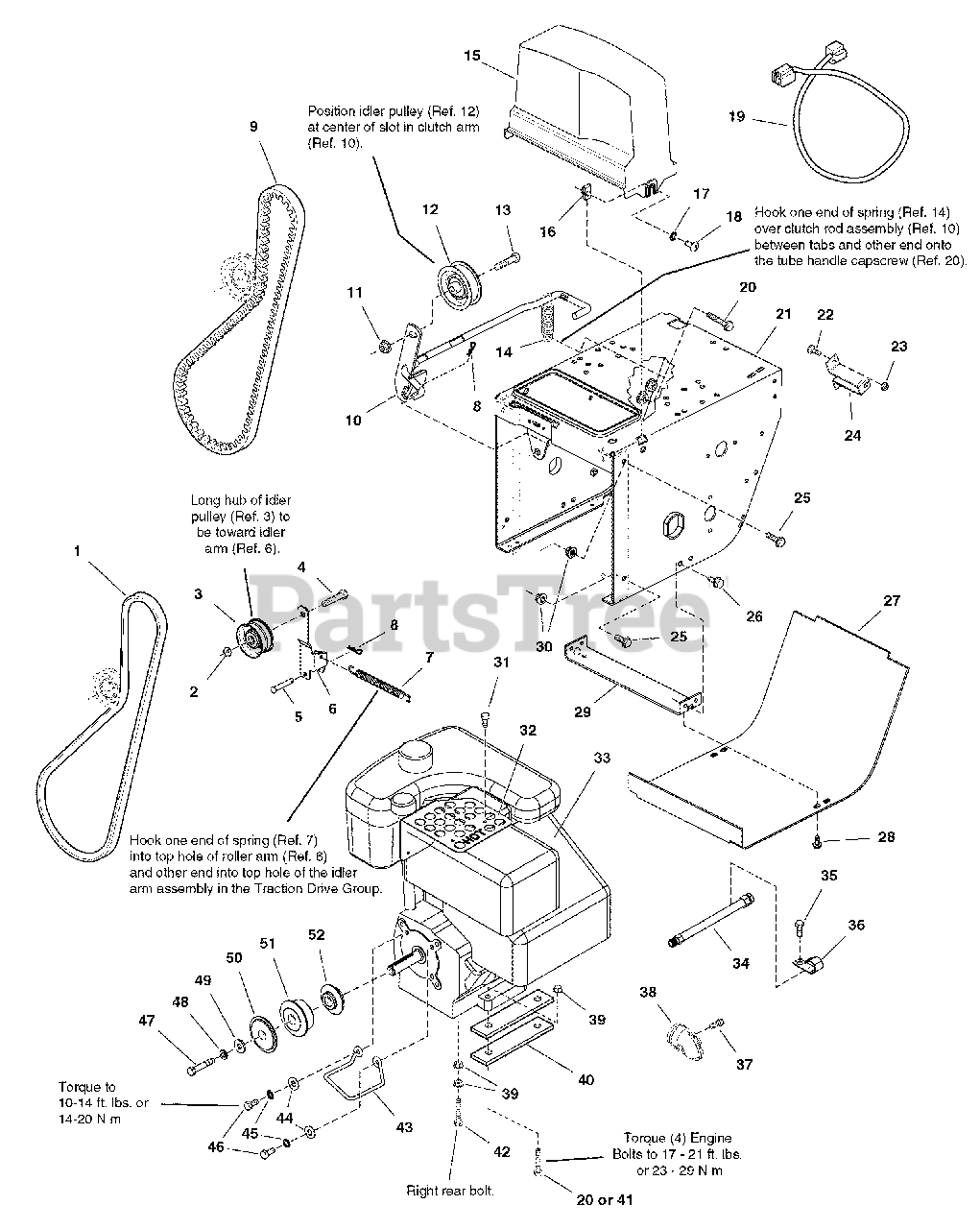

Engine and Frame Group Parts Diagram

  • Title

1

Snapper 1700415SM

V-BELT, 3L (Used on all models Except 1694859 models)

$24.99

$

In Stock, Qty 6

0

1

Snapper 1672732SM

V-BELT, 3L (Used Only on 1694859 models)

$20.99

$

In Stock, Qty 15

0

2

Snapper 1928731SM

NUT, Hex, Toplock, Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

3

Snapper 1668477SM

PULLEY, Idler

$23.99

$

In Stock, Qty 20+

0

4

Snapper 1960647SM

SCREW, Hex Head, 3/8-16 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 1665994SM

PIN, Flat Head Drilled
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

6

Snapper 1703046ASM

ARM, Idler, 5-3/4 LG

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 1727149SM

SPRING, Extension
(Superseded to 703146)

$

$

Not available

8

Snapper 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

9

Snapper 1725416SM

V-BELT, HA (Used on all models Except 1694859 models)

$29.99

$

Usually ships in 2-12 days

0

9

Snapper 1666655SM

V-BELT, HA (Used Only on 1694859 models)

$29.99

$

In Stock, Qty 7

0

10

Snapper 1727058ASM

ROD AND ARM ASSEMBLY, Clutch, Brake
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

11

Snapper 1928352SM

NUT, Hex Flange, 3/8-16 Whiz Lock Large
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

12

Snapper 1726348SM

PULLEY, Idler

$24.99

$

In Stock, only 4 left!

0

13

Snapper 2860709SM

CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 1-3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 2159106SM

SPRING, Extension, 4-1/4 Long
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

15

Snapper 1725287SM

COVER, Belt
(Superseded to 706414)

$

$

Not available

16

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

17

Snapper 2820426SM

LOCKWASHER, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

18

Snapper 1918249SM

SCREW, Truss head Slotted, 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 1724064SM

CORD, Electric Extension

$40.99

$

Usually ships in 2-12 days

0

20

Snapper 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5 (Quantity 3 used on 1694853 models)
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

21

Snapper 1726568D

FRAME ASSEMBLY, Chain/Tube Handles

$

$

Not available

22

Snapper 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4 G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

23

Snapper 1960685SM

NUT, Hex KEPS, 1/4-20, Conical Washer
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

24

Snapper 1720404ASM

SUPPORT, Clutch Cable, 16GA
(Superseded to 1720404BMYP)

$12.99

$

Usually ships in 2-12 days

0

25

Snapper 1930591SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

26

Snapper 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 1726870DSM

COVER, Bottom Frame, 20GA

$80.99

$

Usually ships in 2-12 days

0

28

Snapper 1925003SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

29

Snapper 1727004ASM

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$14.99

$

Usually ships in 2-12 days

0

30

Snapper 1927557SM

NUT, Hex Flange, 5/16-18, Whiz Lock Large

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 1929477SM

SCREW, Hex Washer Head Taptite, #10-24 x 1/2

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 1725664ASM

GUARD, Muffler, 18GA

$25.99

$

Usually ships in 2-12 days

0

33

ENGINE, 9.5HP Briggs & Stratton Electric Start Engine Model: 20A414 Engine Type: 0111E1

$

$

Not available

33

ENGINE, 10.5HP Briggs & Stratton Electric Start

Note: Engine Model: 20E214 Engine Type: 0110E1 (CE/Export)

$

$

Not available

33

ENGINE, 11.5HP Briggs & Stratton Electric Start Engine Model: 21C214 Engine Type: 0110E1

$

$

Not available

33

ENGINE, 13HP Briggs & Stratton Electric Start Engine Model: 21A414 Engine Type: 0112E1

$

$

Not available

34

Snapper 1726942SM

HOSE, Oil Drain, w/Fittings

$28.99

$

Usually ships in 2-12 days

0

35

Snapper 1664847SM

CAPSCREW, Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 1727068SM

CLIP, "J"

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 1727033SM

SCREW, Muffler Deflector

$3.49

$

Usually ships in 2-12 days

0

38

Snapper 1727032SM

DEFLECTOR, Rain Guard, B&S Snow Muffler

$12.99

$

Usually ships in 2-12 days

0

39

Snapper 1931277SM

NUT, Hex Flange, 5/16-18, Whiz Lock Small (Quantity 4 used only on 1694853 models)
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

40

Snapper 1725326ASM

SUPPORT, Engine Riser, 3/8" Thick, 1-1/4 x 4-31/50 (Used on all models Except 1694853 models)

$12.99

$

Usually ships in 2-12 days

0

41

Snapper 1935159SM

CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 2-1/4 (Used on all models Except 1694853 models)

$2.49

$

Usually ships in 2-12 days

0

42

Snapper 2860551SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 2-1/2 (Used on all models Except 1694853 models)

$4.99

$

Usually ships in 2-12 days

0

42

Snapper 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

43

Snapper 1727785SM

STOP, Belt

$19.99

$

Usually ships in 2-12 days

0

44

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

45

Snapper 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

46

Snapper 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4 G5

$3.99

$

Usually ships in 2-12 days

0

47

Snapper 1922128SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/2 G8

$4.49

$

Usually ships in 2-12 days

0

48

Snapper 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

49

Snapper 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

50

Snapper 1726867SM

PULLEY, Engine Outside, Powdered Metal

$39.99

$

Usually ships in 2-12 days

0

51

Snapper 1726866SM

PULLEY, Engine Middle, Powdered Metal

$52.99

$

Usually ships in 2-12 days

0

52

Snapper 1726865SM

PULLEY, Half Powdered Metal

$42.99

$

Usually ships in 2-12 days

0
