13387E (1694859) - Snapper 38" Snow Thrower, 13hp (2006) Auger and Impeller Group Parts Diagram

38" Snow Thrower, 13hp

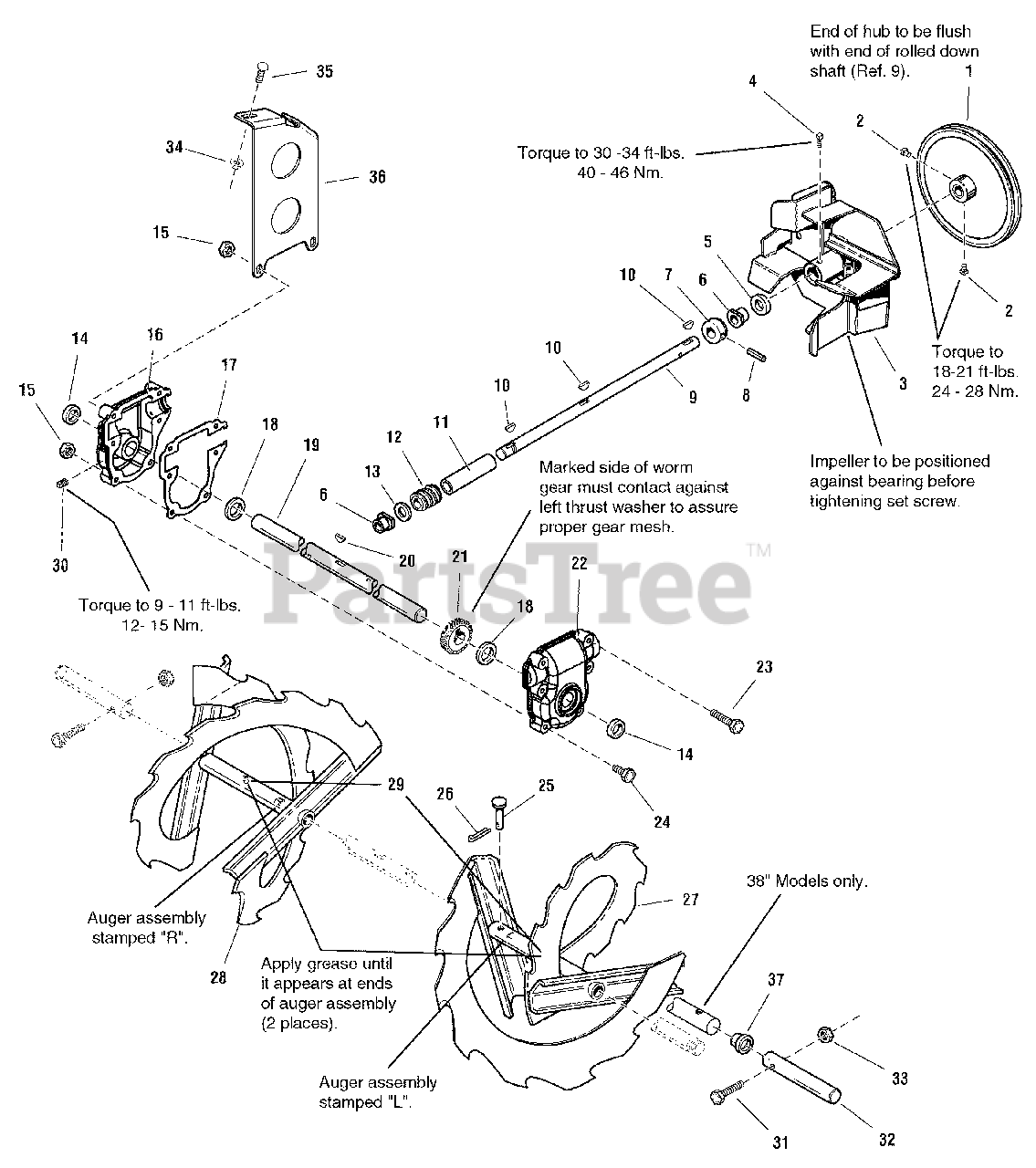

Auger and Impeller Group Parts Diagram

  • Title

1

Snapper 1679293SM

PULLEY, w/Hub

$120.99

$

Usually ships in 2-12 days

0

2

Snapper 1928721SM

SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8

$4.99

$

In Stock, Qty 5

0

3

Snapper 1612187ASM

IMPELLER ASSEMBLY
(Superseded to 1612187BMYP)

$201.99

$

In Stock, only 3 left!

0

4

Snapper 1960474SM

SCREW, Set Square Head Cup Point, 3/8-16 x 1/2 G8

$5.99

$

In Stock, Qty 7

0

5

Snapper 1612093SM

SEAL, Oil 1/4" Thick

$10.99

$

In Stock, Qty 20+

0

6

Snapper 1612149SM

BUSHING, 377/500 ID x 1-1/10 OD x 1-1/100 LG Powerdered Metal

$51.99

$

In Stock, Qty 7

0

7

Snapper 1612127SM

COLLAR, Thrust 3/4 LG

$30.99

$

In Stock, only 2 left!

0

8

Snapper 2836098SM

PIN, Drive Lock Type A 3/16 x 1-1/2

$18.99

$

In Stock, Qty 6

0

9

Snapper 1612129SM

SHAFT, Worm 18-1/10 LG

$

$

Not available

10

Snapper 2818312SM

KEY, Woodruff, 47/250 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 1612111SM

TUBE, 9/10 OD 39/50 ID, 7-1/2 LG

$21.99

$

In Stock, only 4 left!

0

12

Snapper 1612142SM

GEAR, Worm 1-3/8 LG
(Superseded to 706853)

$

$

Not available

13

Snapper 2168111SM

WASHER, Thrust

$6.99

$

Usually ships in 2-12 days

0

14

Snapper 2118118SM

SEAL, Oil, 1/4" Thick

$10.99

$

In Stock, Qty 20+

0

15

Snapper 1930642SM

NUT, Hex Flange, 1/4-20 Toplock Small (Uses Quantity of 6 on 28 adn 38 in. Models)
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

16

Snapper 1612137SM

CASE, Gear R.H.
(Superseded to 1687728)

$567.99

$

Usually ships in 2-12 days

0

17

Snapper 1612124SM

GASKET, Gear Case

$17.99

$

In Stock, Qty 12

0

18

Snapper 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

19

Snapper 1731916SM

SHAFT, 16 LG Auger 3 Holes

$106.99

$

Usually ships in 2-12 days

0

20

Snapper 2830246SM

KEY, Woodruff 1/4 x 3/4
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

21

Snapper 1612141SM

GEAR, Worm 7/8 LG
(Superseded to 706853)

$

$

Not available

22

Snapper 1612136SM

CASE, Gear L.H.

$68.99

$

Usually ships in 2-12 days

0

23

Snapper 1923282SM

CAPSCREW, Hex Head, 1/4-20 x 2-1/2 G5 (Used on 32 and 38 in. Modles)
(Superseded to 703821)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 1960346SM

CAPSCREW, Hex Head, 1/4-20 x 2-1/4 G5 (Uses Quantity of 6 on 28 and 38 in. Models)

$4.99

$

Usually ships in 2-12 days

0

25

Snapper 1668344SM

PIN, Flat Head Drilled
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 1918447SM

PIN, Cotter 47/50 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 1718782ASM

AUGER ASSEMBLY, L.H. 9-1/2 LG (Used on 24 in. Models)

$165.99

$

Usually ships in 2-12 days

0

27

Snapper 1718784ASM

AUGER ASSEMBLY, L.H. 11-1/2 LG (Used on 28 in. Models)

$171.99

$

Usually ships in 2-12 days

0

27

Snapper 1718786ASM

AUGER ASSEMBLY, L.H. 13-1/2 LG (Used on 32 in. Models)

$170.99

$

Usually ships in 2-12 days

0

27

Snapper 1723945ASM

AUGER ASSEMBLY, L.H. 15-9/10 LG (without Burshing) (Used on 38 in. Models)

$230.99

$

Usually ships in 2-12 days

0

27

Snapper 1731322ASM

AUGER ASSEMBLY, L.H. 15-9/10 LG (Includes Ref. No. 37) (Used on 38 in. Models)

$179.99

$

Usually ships in 2-12 days

0

28

Snapper 1718783ASM

AUGER ASSEMBLY, R.H. 9-1/2 LG (Used on 24 in. Models)
(Superseded to 1734674BMYP)

$207.99

$

Usually ships in 2-12 days

0

28

Snapper 1718785ASM

AUGER ASSEMBLY, R.H. 11-1/2 LG (Used on 28 in. Models)

$

$

Not available

28

Snapper 1718787ASM

AUGER ASSEMBLY, R.H. 13-1/2 LG (Used on 32 in. Models)

$170.99

$

Usually ships in 2-12 days

0

28

Snapper 1723944ASM

AUGER ASSEMBLY, R.H. 15-9/10 LG (without Bushing) (Used on 38 in. Models)

$285.99

$

Usually ships in 2-12 days

0

28

Snapper 1731321ASM

AUGER ASSEMBLY, R.H. 15-9/10 LG (Includes Ref. No. 37) (Used on 38 in. Models)

$

$

Not available

29

Snapper 2821133SM

FITTING, Lube 1/4 Drive, No Check Ball
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

30

Snapper 1668971SM

FITTING, Pipe Plug, Square Head

$4.49

$

Usually ships in 2-12 days

0

31

Snapper 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5 (Used on 38 in. Models)
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 1723931SM

SHAFT, E-Coat, 5 LG (Used on 38 in. Models)

$24.99

$

Usually ships in 2-12 days

0

33

Snapper 1920397SM

NUT, Hex Lock ESNA Light, 1/4-20NC-3B (Used on 38 in. Models)
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 1931277SM

NUT, Hex Flange, 5/16-18, Whiz Lock Small (Used on 32 and 38 in. Models)
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

35

Snapper 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5 (Used on 32 and 38 in. Models)
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

36

Snapper 1723922ASM

SUPPORT, Gear Box 10GA (Used on 38 in. Models)

$34.99

$

Usually ships in 2-12 days

0

37

Snapper 1709894SM

BUSHING, Plastic (Used on 38 in. Models)

$5.49

$

In Stock, only 1 left!

0
