1338 PE (1695790) - John Deere 38" Snow Thrower (2010) Discharge Chute Group Parts Diagram

38" Snow Thrower

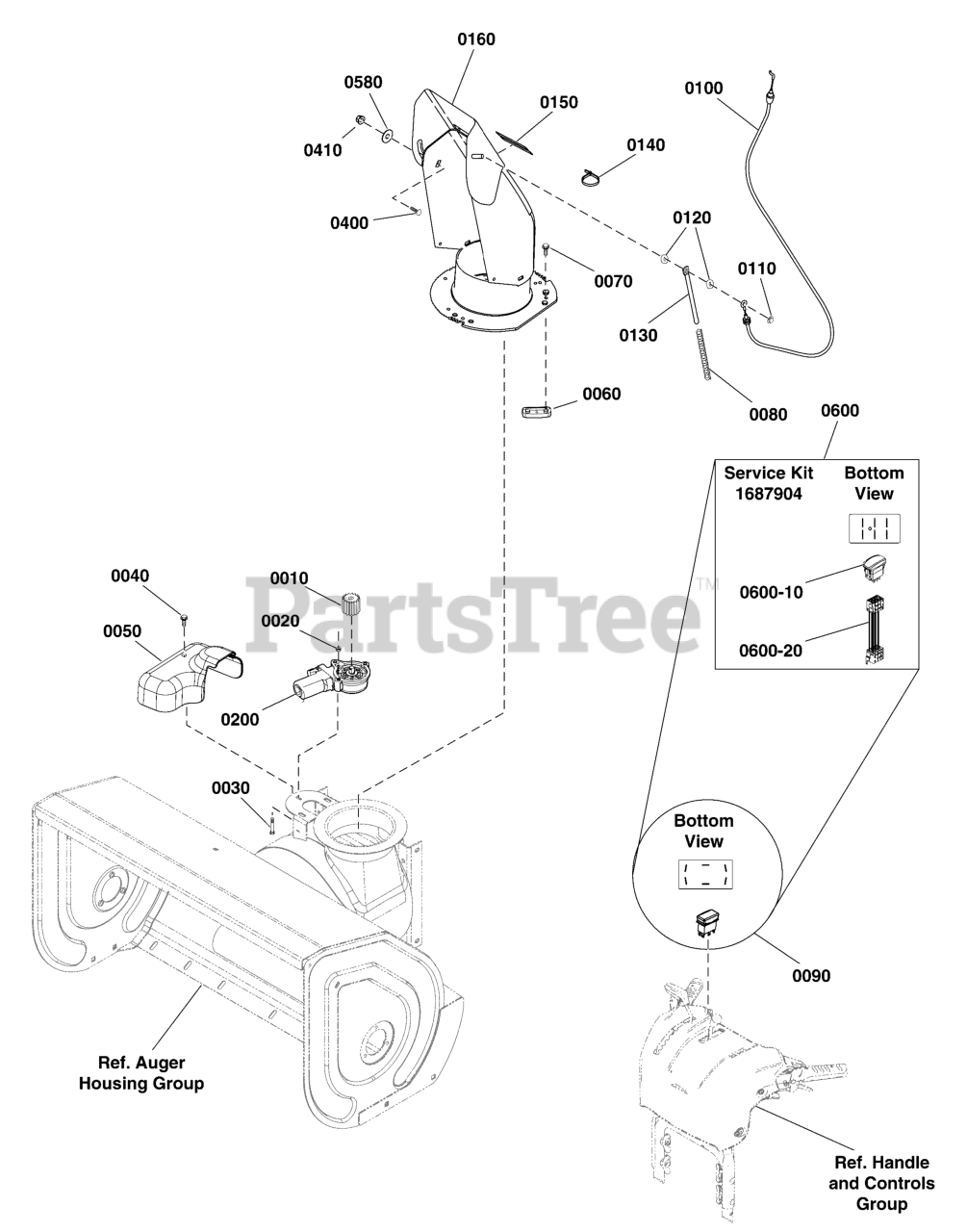

Discharge Chute Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION

$17.99

$

In Stock, only 4 left!

0

0020

Murray 1960745SM

NUT, Hex Flange, Whiz Lock, #10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0030

Murray 2860604SM

SCREW, Hex Washer Head Slot,#10C x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 1927428SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1733934ASM

COVER, Gear

$

$

Not available

0060

Murray 1666613SM

HOLD DOWN

$3.49

$

In Stock, Qty 20+

0

0070

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

0080

Murray 1734647SM

SPRING, Compression
(Superseded to 703135)

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 1737378YP

SWITCH, Rocker, Chute Rotation
(Superseded to 1687904)

$82.99

$

In Stock, Qty 15

0

0100

Murray 1732971SM

CABLE, Deflector Control
(Superseded to 1750623YP)

$49.99

$

In Stock, Qty 6

0

0110

Murray 1932718SM

NUT, Push 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

0120

Murray 1666697SM

SPACER, 5/16 ID x 1/2 OD x 1/4"

$6.49

$

In Stock, only 2 left!

0

0130

Murray 1734708ASM

ROD, Spring Guide

$13.99

$

Usually ships in 2-12 days

0

0140

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0150

Murray 1739354YP

DECAL, Strip for Chute Hinge

$21.99

$

Usually ships in 2-12 days

0

0160

Murray 1736419FYP

CHUTE

$319.99

$

Usually ships in 2-12 days

0

0170

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0180

Murray 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, only 2 left!

0

0190

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0200

Murray 1728965SM

MOTOR, Spout Rotator

$176.99

$

In Stock, Qty 8

0
