1337 PW - Husqvarna Pressure Washer (2003-03) Main Unit Parts Diagram

Pressure Washer

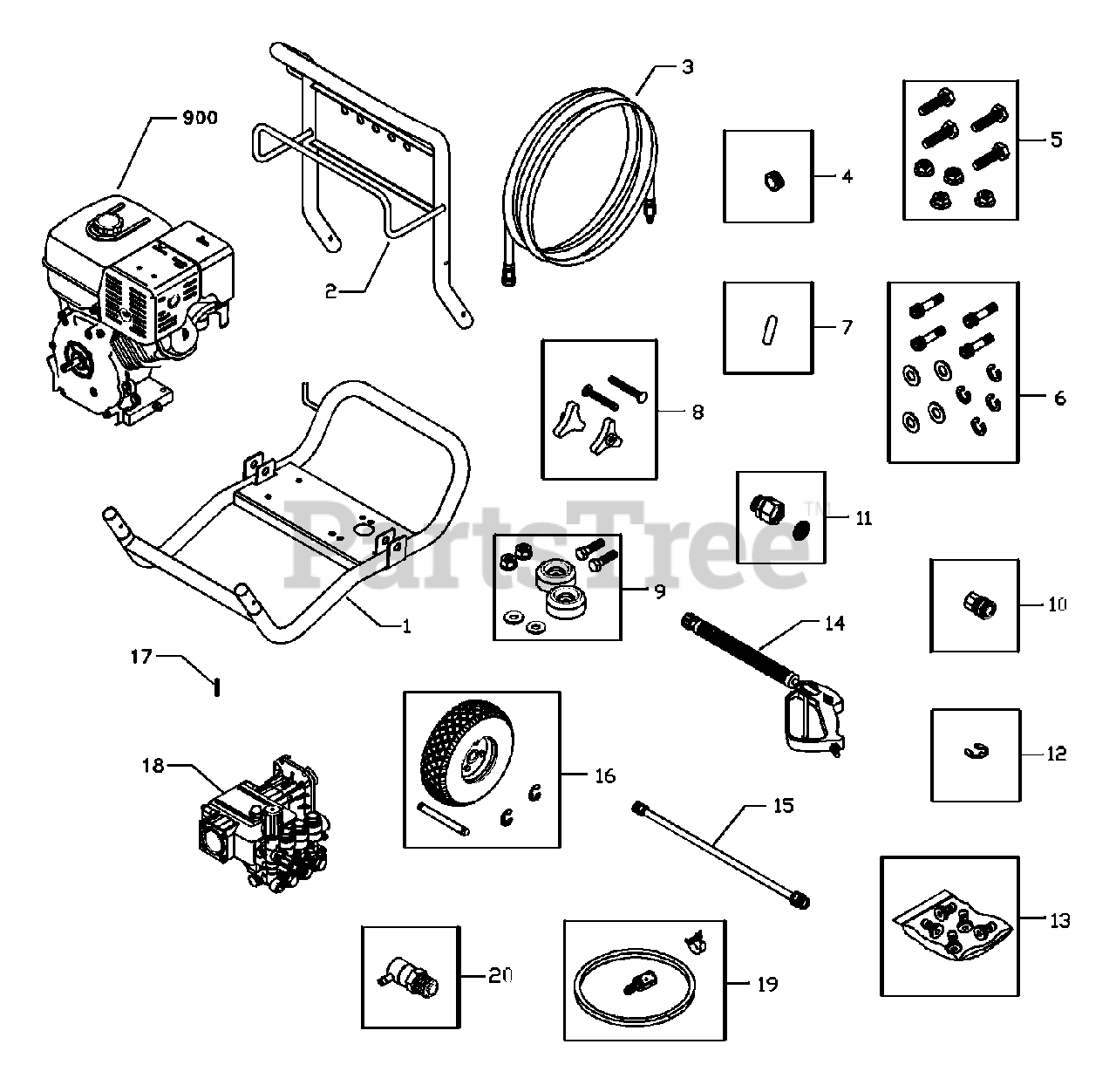

Main Unit Parts Diagram

  • Title

1

Husqvarna B191938GS

BASE

$

$

Currently unavailable

2

Husqvarna B191942GS

HANDLE

$

$

Currently unavailable

3

Husqvarna B4805GS

HOSE

$

$

Currently unavailable

4

Husqvarna 30809GS

GROMMET

$

$

Currently unavailable

5

Husqvarna 192886GS

KIT, Engine Mounting Hardware

$

$

Currently unavailable

6

Husqvarna 193003GS

KIT, Pump Mounting Hardware

$

$

Currently unavailable

7

Husqvarna B2516GS

VINYL CAP

$

$

Currently unavailable

8

Husqvarna B2203GS

KIT, Handle Fastening

$

$

Currently unavailable

9

Husqvarna 192310GS

KIT, Vibration Mount

$

$

Currently unavailable

10

Husqvarna 95458GS

QUICK CONNECT

$

$

Currently unavailable

11

Husqvarna 192135GS

KIT, Garden Hose Inlet

$

$

Currently unavailable

12

Husqvarna 191265GS

E-RING

$

$

Currently unavailable

13

Husqvarna B4847GS

KIT, Spray Tips

$

$

Currently unavailable

14

Husqvarna B1436BGS

GUN

$

$

Currently unavailable

15

Husqvarna 190779GS

EXTENSION

$

$

Currently unavailable

16

Husqvarna 192317GS

KIT, Wheel

$

$

Currently unavailable

17

Husqvarna 63281GS

KEY

$

$

Currently unavailable

18

Husqvarna 192193GS

ASSY, Pump

Note: Complete Pump available from Cat Pumps only.; (See "Pump & Unloader")

$

$

Currently unavailable

18

Husqvarna 192194GS

ASSY, Unloader

Note: Complete Pump available from Cat Pumps only.; (See "Pump & Unloader")

$

$

Currently unavailable

19

Husqvarna 192796GS

KIT, Chemical Hose/Filter

$

$

Currently unavailable

20

Husqvarna B1544GS

VALVE, Thermal Relief

$

$

Currently unavailable

900

Husqvarna ~NSP

ENGINE

$

$

Currently unavailable

Husqvarna 193017GS

MANUAL, Owner's

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 192894GS

KIT, Decals

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna BB3061BGS

OIL, Engine

Note: Not Illustrated

$

$

Currently unavailable
