1336G - MTD Pro Walk-Behind Mower (2001) Vari-Touch Drive Assembly Parts Diagram

Pro Walk-Behind Mower

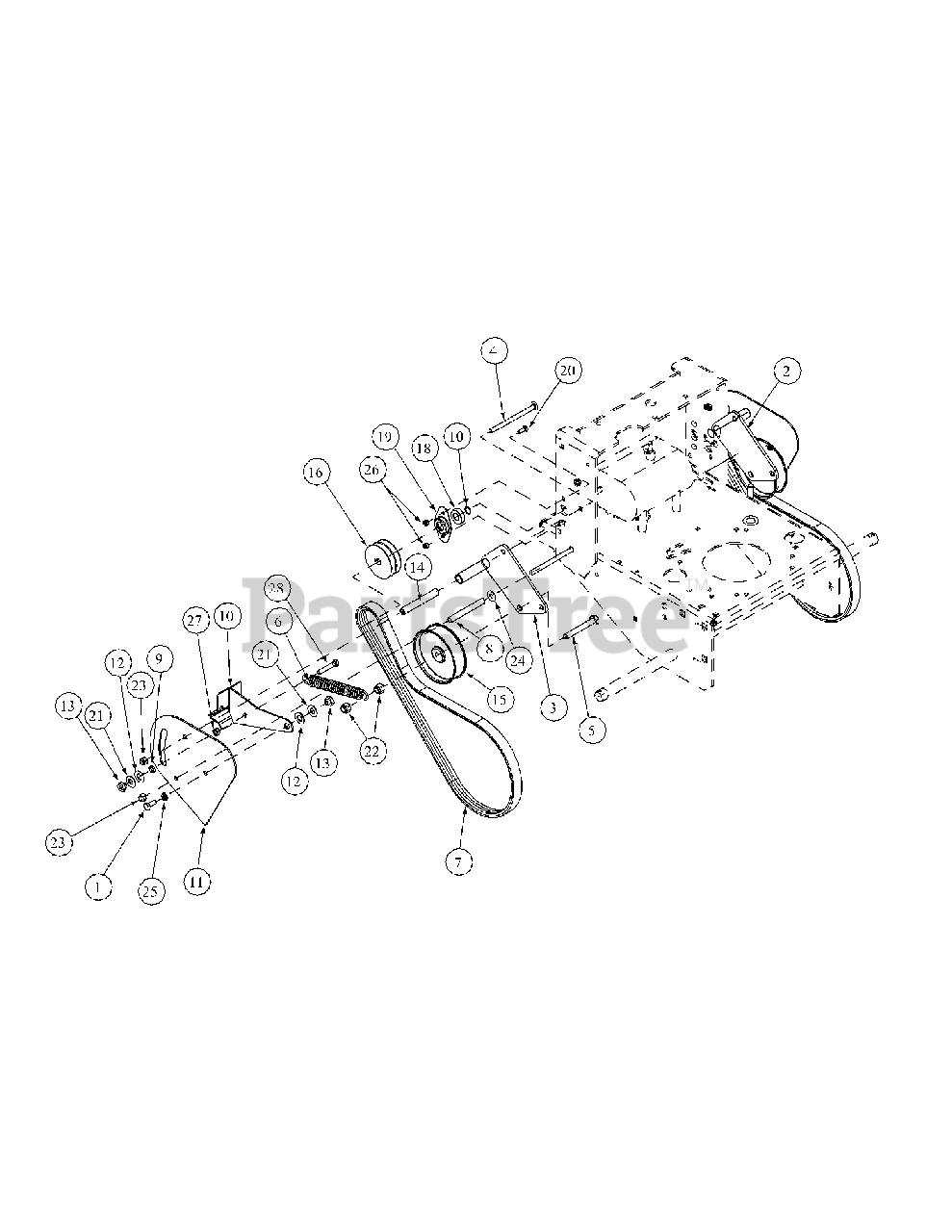

Vari-Touch Drive Assembly Parts Diagram

  • Title
1

MTD 01002554

Hex Cap Screw, 3/8-16, .875

$

$

Not available

2

MTD 01001012

Left Idler Bracket

Note: NLA

$

$

Not available

3

MTD 01001009-0637

Right Idler Bracket

$

$

Not available

4

MTD 01000642

Carriage Bolt, 3/8-16 x 5.50

$18.99

$

In Stock, only 3 left!

0

5

MTD 01000226

Hex Cap Screw, 1/2-13, 3.50

$

$

Not available

6

MTD 01000199

Extension Spring

$17.99

$

In Stock, only 4 left!

0

7

MTD 01000151

Belt, V

$64.99

$

In Stock, only 1 left!

0

8

MTD 01000130

Spacer Tube

$

$

Not available

9

MTD 01000117

Roller Tube

$

$

Not available

10

MTD 01001018

Spring Adjust

$

$

Not available

11

MTD 01001016

Belt Guard

$

$

Not available

12

MTD 01000101

Slide Washer
(Superseded to 936-0414)

$

$

Not available

13

MTD 01000100

Shoulder Nut

$

$

Not available

14

MTD 00036665

Idler Sleeve

$

$

Not available

15

MTD 00021976

Flat Idler Drive

$

$

Not available

16

MTD 00021969

Jackshaft Pulley

$

$

Not available

17

MTD 00021964

External Retain Ring

$

$

Not available

18

MTD 941-0155

Bearing

$23.99

$

In Stock, Qty 15

0

19

MTD 02000487

Bearing Housing
(Superseded to 741-04566)

$15.99

$

Usually ships in 3-6 days

0

20

MTD 00017584

Carriage Bolt, 1/4-20 x .750

$

$

Not available

21

MTD 00012577

Washer, 1/2 x 1

$5.49

$

In Stock, Qty 12

0

22

MTD 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

23

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

24

MTD 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

25

MTD 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

26

MTD 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

27

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

28

MTD 00002528

Hex Cap Screw, 3/8-16, 2.00

$6.99

$

In Stock, Qty 7

0
