1336G - MTD Pro Walk-Behind Mower (2000) Tank Assembly Parts Diagram

Pro Walk-Behind Mower

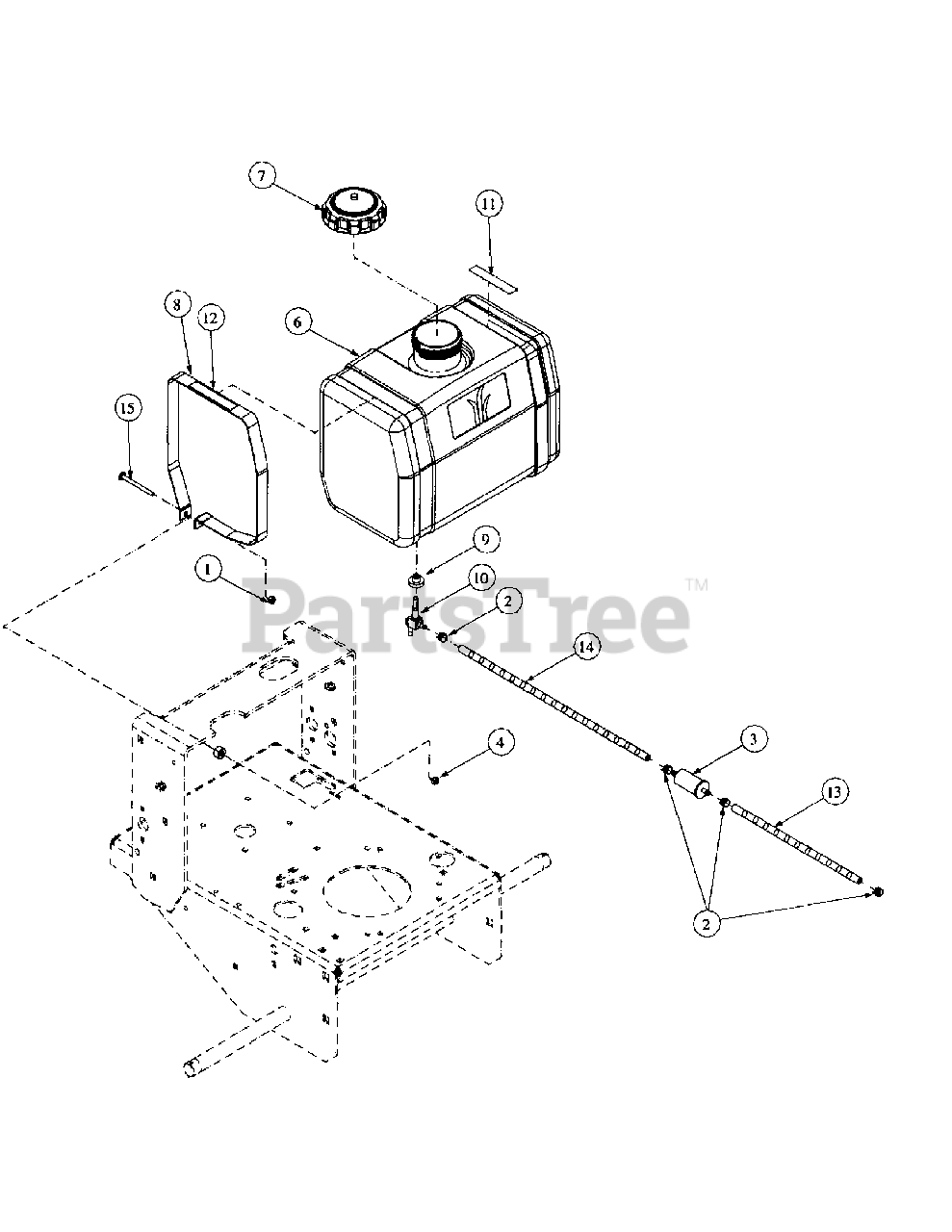

Tank Assembly Parts Diagram

  • Title

1

MTD 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

2

MTD 00012235

Uni-Clamp
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

3

MTD 00012292

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

4

MTD 00013291

Nut, 1/4-20

$2.99

$

In Stock, only 3 left!

0

5

MTD 00021407

Rubber Stop Pad

$6.49

$

Usually ships in 3-6 days

0

6

MTD 01000068

Fuel Tank

Note: NLA

$

$

Not available

7

MTD 951-3124E

Fuel Cap, 3.5

$36.99

$

In Stock, only 1 left!

0

8

MTD 01001023

Fuel Tank Strap

$56.99

$

Usually ships in 3-6 days

0

9

MTD 02002253

Grommet Fuel Tank

$4.99

$

In Stock, only 2 left!

0

10

MTD 00030784

Shut Off Fuel Tank

$

$

Not available

11

MTD 01001036

Label, Mower Warning Turn Off Engine

$

$

Not available

12

MTD 01001038

Label, Mower Instruction, Fuel Valve

$

$

Not available

13

MTD 01001208

Hose Fuel, 12"

$

$

Not available

14

MTD n/a

Hose Fuel, 18"

$

$

Currently unavailable

15

MTD 01002509

Carriage Bolt, 1/4-20 x 3.00

$3.99

$

Usually ships in 3-6 days

0
