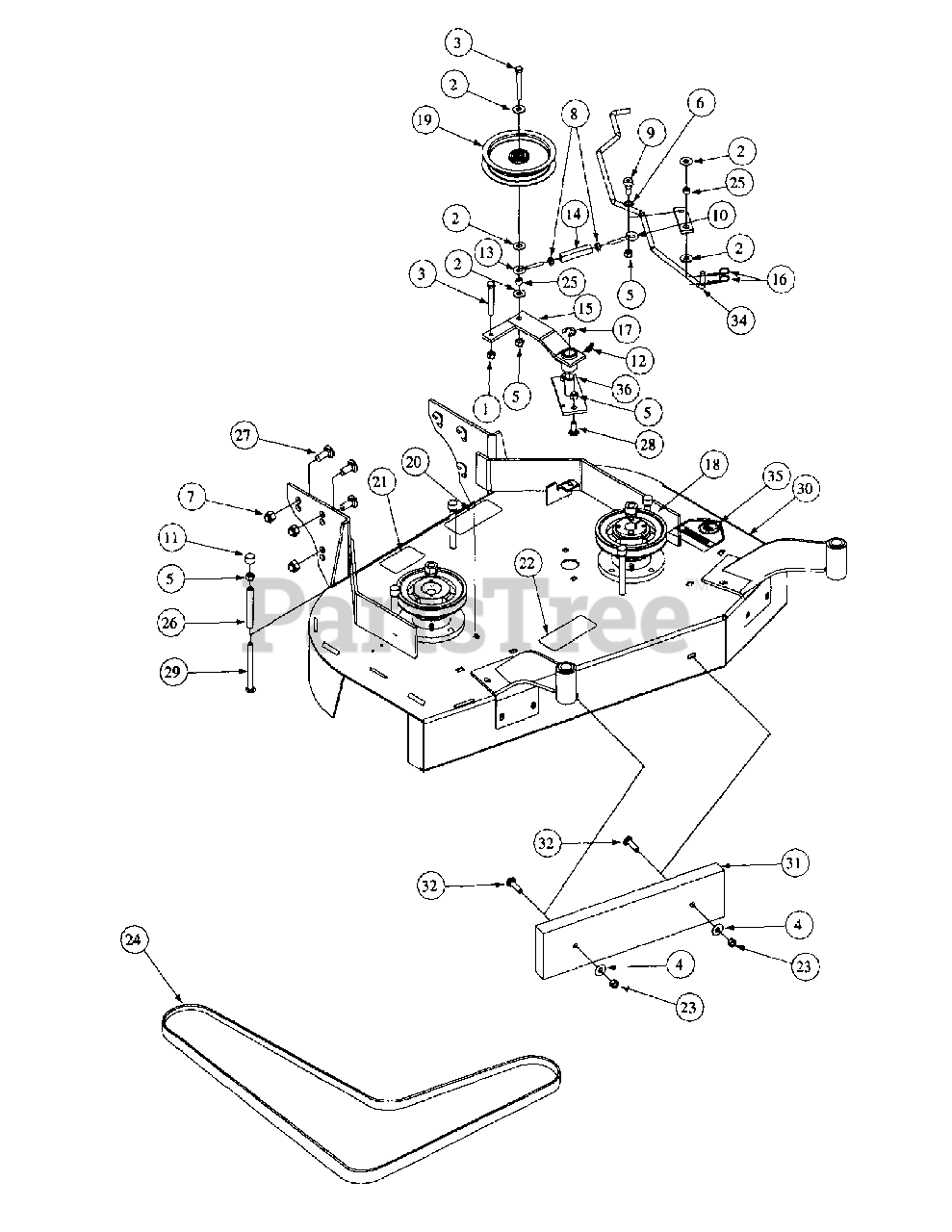

1336G - MTD Pro Walk-Behind Mower (2000) Deck Assembly Parts Diagram

Pro Walk-Behind Mower

Deck Assembly Parts Diagram

  • Title

1

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

MTD 00006168

Flat Washer, 3/8 Zinc
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

3

MTD 00011861

Hex Cap Screw, 3/8-16, 1
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

4

MTD 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

5

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

MTD 00012402

Shim Washer

$

$

Not available

7

MTD 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

8

MTD 00013433

Hex Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

9

MTD 00014439

Shoulder Bolt

$

$

Not available

10

MTD 00014459

Eye Bolt, Right Hand

$11.99

$

In Stock, only 3 left!

0

11

MTD 00018468

Cap, Black Vinyl

$

$

Not available

12

MTD 937-0280

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

13

MTD 00019271

Eye Bolt, Left Hand

$14.99

$

In Stock, only 3 left!

0

14

MTD 00019554

Turnbuckle

$32.99

$

Usually ships in 3-6 days

0

15

MTD 00021895

Idler Arm

$170.99

$

Usually ships in 3-6 days

0

16

MTD 00021956

Hair Pin, 3/8"-1/2"
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

17

MTD 00021961

E-Ring, Retainer

$11.99

$

Usually ships in 3-6 days

0

18

MTD 00021970

Pulley Deck

$112.99

$

Usually ships in 3-6 days

0

19

MTD 00021977

Idler Deck Take-up

$66.99

$

Usually ships in 3-6 days

0

20

MTD 00030633

Decal Rotating Blade

$

$

Not available

21

MTD 00030634

Decal Warning Safety

$

$

Not available

22

MTD 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

23

MTD 00034224

Lock Nut, 3/8-16

$

$

Not available

24

MTD 00050441

Belt Drive

$59.99

$

In Stock, only 3 left!

0

25

MTD 00062715

Turnbuckle, Sleeve

$18.99

$

In Stock, only 1 left!

0

26

MTD 01000160

Spacer, Belt Guide

$

$

Not available

27

MTD 01000517

Carriage Bolt, 1/2-13 x 1-1/4
(Superseded to 710-05375)

$6.49

$

Usually ships in 3-6 days

0

28

MTD 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 7

0

29

MTD 01000644

Carriage Bolt, 3/8-16 x 4.5

$

$

Not available

30

MTD 01006883P

Deck 36"

$

$

Not available

31

MTD 02002426

Bar Weight

Variations

MTD 02002426-0637

BAR- WEIGHT CAT - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

$168.99

$

Usually ships in 3-6 days

0

32

MTD 01002011

Carriage Bolt, 3/8-16 x 1-1/2

$

$

Not available

34

MTD 01002103

Rod Clutch Link

$

$

Not available

35

MTD 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

36

MTD 00063043

Idler Base

$55.99

$

Usually ships in 3-6 days

0
