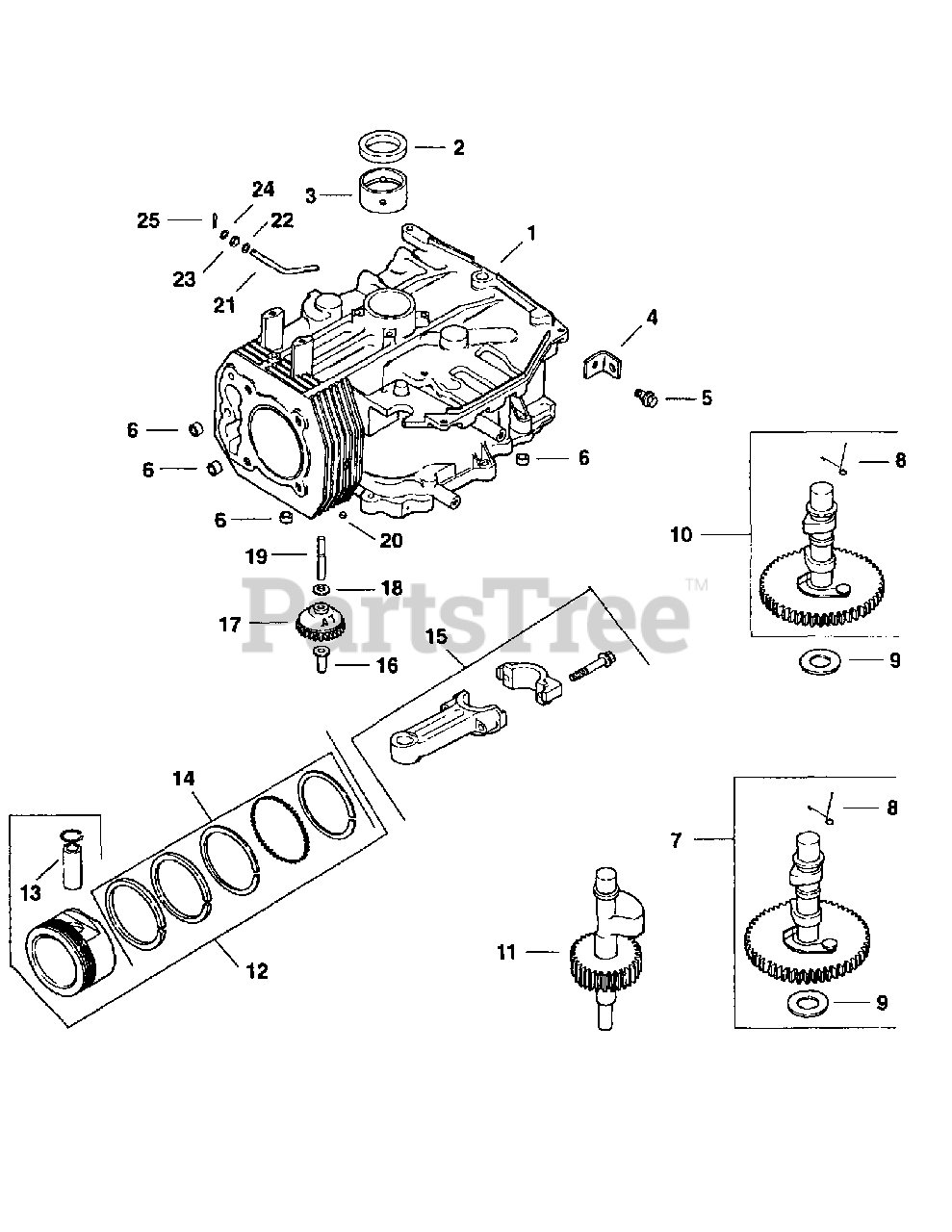

1336 - MTD Pro Walk-Behind Mower Kohler Engine Crankcase Parts Diagram

Pro Walk-Behind Mower

Kohler Engine Crankcase Parts Diagram

  • Title

1

MTD n/a

Crankcase

$

$

Currently unavailable

2

MTD KH-12-032-03

Seal, Crankshaft
(Superseded to KH-12-032-03-S)

$10.99

$

Usually ships in 3-6 days

0

3

MTD KH-12-030-01

Bearing, Crankshaft (Std.)

Note: NLA

$

$

Not available

3

MTD KH-12-030-02

Bearing, Crankshaft (.25)

Note: NLA

$

$

Not available

3

MTD KH-12-030-03

Bearing, Crankshaft (.50)

Note: NLA

$

$

Not available

4

MTD KH-12-445-02

Strap, Lifting

$

$

Not available

5

MTD KH-M-0839025

Screw, Lifting Strap M8 x 1.25 x 25

Note: NLA

$

$

Not available

6

MTD KH-24-380-16-S

Dowel, Locating

$4.49

$

In Stock, only 3 left!

0

7

MTD KH-12-755-49

Kit, Camshaft

$

$

Not available

8

MTD KH-12-089-31-S

Spring, Actuating (ACR)
(Superseded to KH-12-089-37-S)

$2.99

$

In Stock, only 1 left!

0

9

MTD KH-12-422-07-S

Shim, Camshaft (A.R.) (White)

$4.49

$

Usually ships in 2-5 days

0

9

MTD KH-12-422-08-S

Shim, Camshaft (A.R.) (Blue)

$2.49

$

In Stock, only 2 left!

0

9

MTD KH-12-422-09-S

Shim, Camshaft (A.R.) (Green)

$2.49

$

In Stock, only 1 left!

0

9

MTD KH-12-422-10-S

Shim, Camshaft (A.R.) (Yellow)

$2.49

$

In Stock, only 1 left!

0

9

MTD KH-12-422-11-S

Shim, Camshaft (A.R.) (Red)

$2.49

$

Usually ships in 2-5 days

0

9

MTD KH-12-422-12-S

Shim, Camshaft (A.R.) (Gray)

$2.99

$

Usually ships in 2-5 days

0

9

MTD KH-12-422-13-S

Shim, Camshaft (A.R.) (Black)

$2.99

$

Usually ships in 2-5 days

0

11

MTD KH-12-144-27

Shaft, Balance

$

$

Not available

12

MTD KH-12-874-01

Piston w/Ring Set (Std.)

$

$

Not available

12

MTD KH-12-874-02

Piston w/Ring Set (.25)

Note: NLA

$

$

Not available

12

MTD KH-12-874-03

Piston w/Ring Set (.50)

Note: NLA

$

$

Not available

13

MTD KH-12-018-02

Retainer, Piston Pin

$

$

Not available

14

MTD KH-12-108-01

Ring Set (Std.)

$

$

Not available

14

MTD KH-12-108-02

Ring Set (.25)
(Superseded to KH-24-108-24-S)

$

$

Not available

14

MTD KH-12-108-03

Ring Set (.50)

$

$

Not available

15

MTD KH-12-067-05

Connecting Rod (Std.)

$

$

Not available

15

MTD KH-12-067-06

Connecting Rod (.25)

$

$

Not available

16

MTD KH-12-380-01

Pin, Governor Regulating

$

$

Not available

17

MTD KH-12-043-05

Gear, Governor

$

$

Not available

18

MTD KH-M-631005

Washer, Governor Gear Thrust

$

$

Not available

19

MTD KH-12-144-02

Shaft, Governor Gear

$

$

Not available

20

MTD KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, only 2 left!

0

21

MTD KH-12-755-64

Governor Cross Shaft Kit

$

$

Not available

22

MTD KH-X-25-102-S

Washer, Plain 1/4"

$2.49

$

In Stock, Qty 5

0

23

MTD KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

24

MTD KH-M-631015

Washer, Governor Shaft
(Superseded to KH-M-631015-S)

$2.49

$

In Stock, Qty 7

0

25

MTD KH-12-154-05

Pin, Governor Hitch
(Superseded to KH-12-154-05-S)

$2.99

$

Usually ships in 3-6 days

0
