133432-0038-03 - Briggs & Stratton Horizontal Engine Cylinder, Head, Kits/Gaskets Sets - Valves Parts Diagram

Horizontal Engine

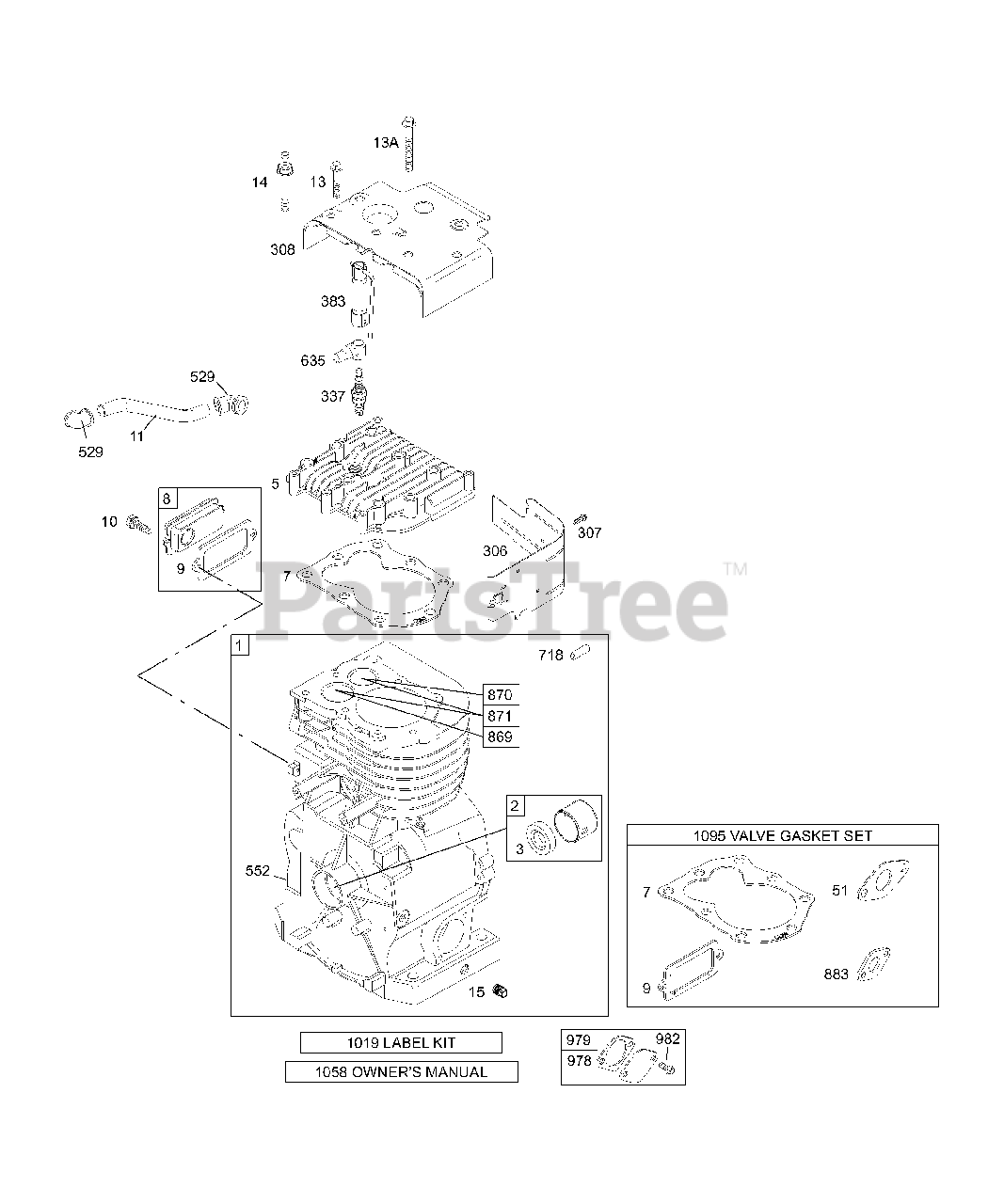

Cylinder, Head, Kits/Gaskets Sets - Valves Parts Diagram

  • Title

1

Briggs & Stratton 495133

Cylinder Assembly

$405.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Kit-Bushing/Seal
(Superseded to 796961)

Note: (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 691716

Head-Cylinder

$

$

Not available

7

Briggs & Stratton 272157S

Gasket-Cylinder Head

$6.49

$

In Stock, Qty 5

0

8

Briggs & Stratton 495774

Breather Assembly
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549S

Gasket-Breather

$3.99

$

In Stock, Qty 11

0

10

Briggs & Stratton 691666

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691246

Tube-Breather

$

$

Not available

13

Briggs & Stratton 691640

Screw

Note: (Cylinder Head)

$3.49

$

In Stock, Qty 12

0

13A

Briggs & Stratton 691659

Screw

Note: (Cylinder Head)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 690368

Stud

Note: (Cylinder Head)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 691663

Plug-Oil Drain

Note: (Square Head)(1/4" Diameter, Magnetic)

$10.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 691686

PLUG, Oil Drain

Note: (Square Head)(1/4" Diameter)

$5.49

$

In Stock, only 2 left!

0

51

Briggs & Stratton 692283

Gasket-Intake

$4.49

$

In Stock, only 4 left!

0

306

Briggs & Stratton 694514

Shield-Cylinder

$28.99

$

In Stock, only 1 left!

0

307

Briggs & Stratton 691660

Screw

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 8

0

308

Briggs & Stratton 690473

Cover-Cylinder Head

$11.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592S

Plug-Spark
(Superseded to 796112S)

Note: (Resistor)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$6.49

$

In Stock, only 4 left!

0

529

Briggs & Stratton 692187

Grommet

$4.49

$

In Stock, Qty 19

0

552

Briggs & Stratton 690508

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 8

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 691705

Seat-Valve

Note: (Intake)

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 691856

Seat-Valve

Note: (Exhaust) (Cobalite)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Valve Guide

Note: (Exhaust)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Valve Guide

Note: (Intake)

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 692237

Gasket-Exhaust

$5.49

$

In Stock, only 3 left!

0

978

Briggs & Stratton 273326S

Gasket-Oil Gard

$7.49

$

Usually ships in 2-12 days

0

979

Briggs & Stratton 691382

Cover-OIL GARD

$4.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 690351

SCREW

Note: (Oil GARD) (Oil GARD Cover)

$3.99

$

In Stock, only 2 left!

0

1019

Briggs & Stratton 495861

Kit-Label

$23.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 274267

Operator's Manual

$

$

Not available

1095

Briggs & Stratton 498531

Gasket Set-Valve

$22.99

$

Usually ships in 2-12 days

0
