1334 - Simplicity Pacer Series 34" Walk-Behind Mower Motion Control & Parking Brake Group Parts Diagram

Pacer Series 34" Walk-Behind Mower

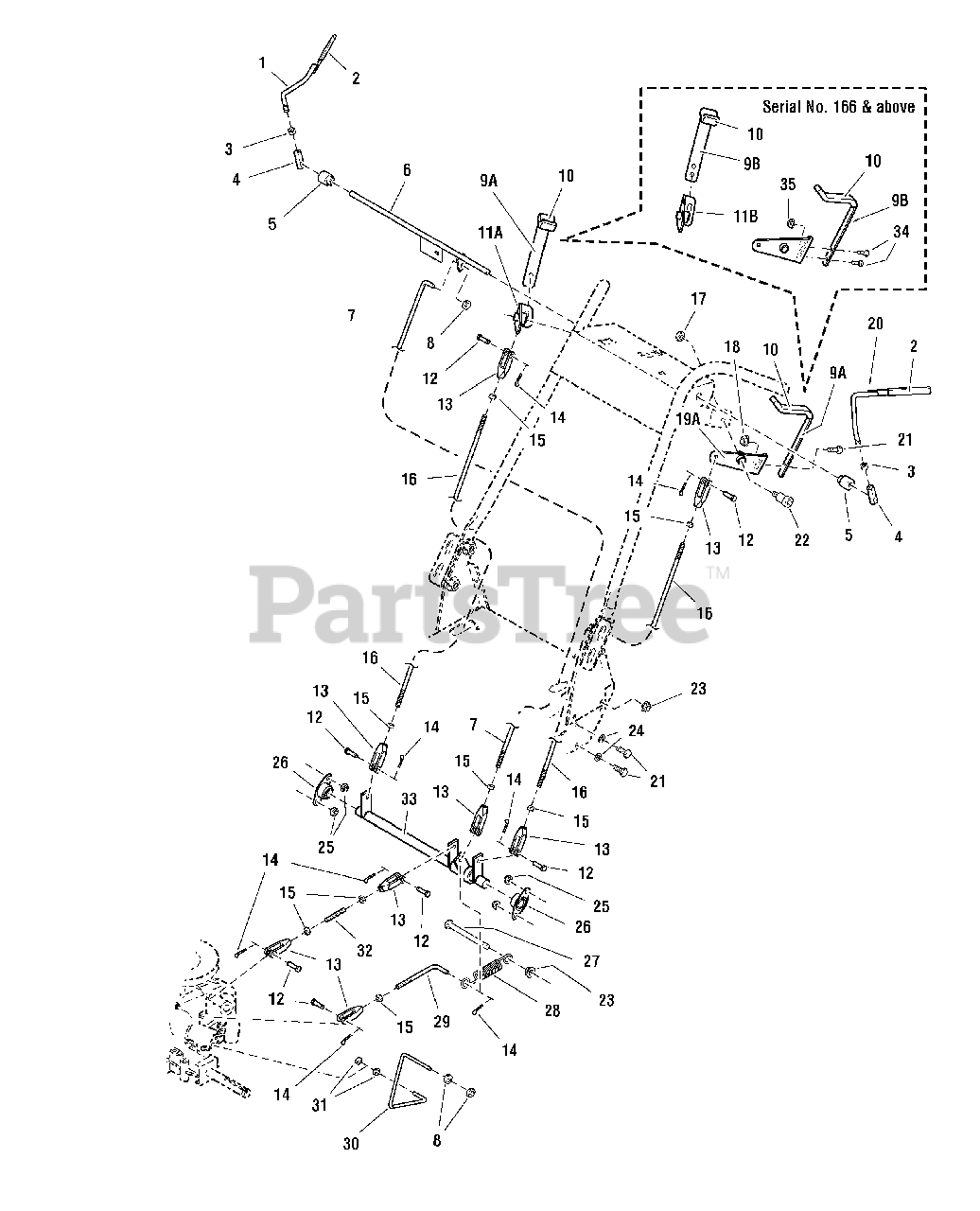

Motion Control & Parking Brake Group Parts Diagram

  • Title

1

Simplicity 5049176CSM

OPERATOR PRESENCE HANDLE - RH, Complete (includes Ref 2)

$29.99

$

Usually ships in 2-12 days

0

2

Simplicity 5021490SM

VINYL GRIP

$4.49

$

In Stock, Qty 8

0

3

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5043417SM

ADJUSTER LINKAGE

$24.99

$

Usually ships in 2-12 days

0

5

Simplicity 5045943SM

SHOULDER SPACER

$11.99

$

In Stock, only 1 left!

0

6

Simplicity 5047723CSM

SWITCH ROD

$

$

Not available

7

Simplicity 5048327SM

BRAKE ROD

$

$

Not available

8

Simplicity 5020047SM

COLLAR, Set, 5/16

$7.49

$

In Stock, only 1 left!

0

9A

Simplicity 5042614CSM

THUMB CONTROL LEVER, Complete (includes Ref No. 10) (S/N: 101-165)

$

$

Not available

9B

Simplicity 5048547CSM

THUMB CONTROL LEVER, Complete (includes Ref No. 10) (S/N: 166 & up)

$40.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025510SM

FOAM GRIP

$6.49

$

In Stock, Qty 12

0

11A

Simplicity 5042542CSM

PIVOT CONTROL - RH (S/N: 101-165)

$36.99

$

Usually ships in 2-12 days

0

11B

Simplicity 5048544CSM

PIVOT CONTROL - RH (S/N: 165 & up)

$

$

Not available

12

Simplicity 5025213X8SM

PIN, Clevis, 5/16 x 1

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 5020979SM

CLEVIS, Plastic, 5/16-24
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

14

Simplicity 703312

PIN, Cotter

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5025033SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 5047642SM

THUMB CONTROL ROD

$17.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025100SM

NUT, Hex, Side Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 5025139SM

NUT, Hex Serrated Flange, 5/16-18

$3.49

$

In Stock, Qty 12

0

19A

Simplicity 5042541CSM

PIVOT CONTROL - LH (S/N: 101-165)

$

$

Not available

19B

Simplicity 5048545CSM

PIVOT CONTROL - LH (S/N: 166 & up)

$

$

Not available

20

Simplicity 5049175CSM

OPERATOR PRESENCE HANDLE - LH, Complete (includes Ref 2)

$

$

Not available

21

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

22

Simplicity 5025223SM

SHOULDER BOLT, 1/2 x 1

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025128SM

NUT, Hex Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

24

Simplicity 703302

WASHER, 5/16

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 5025057SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 5021098SM

BEARING, Flange

$13.99

$

In Stock, Qty 5

0

27

Simplicity 5025013X32SM

CAPSCREW, Hex Head, 3/8-16 x 4

$3.99

$

In Stock, Qty 11

0

28

Simplicity 5021242SM

SPRING, Extension

$22.99

$

Usually ships in 2-12 days

0

29

Simplicity 5048328SM

BRAKE LINKAGE ROD

$16.99

$

Usually ships in 2-12 days

0

30

Simplicity 5047732SM

DUMP VALVE ROD

$24.99

$

Usually ships in 2-12 days

0

31

Simplicity 5022481SM

COLLAR, Set, 1/4

$6.99

$

Usually ships in 2-12 days

0

32

Simplicity 5047740SM

LINK STUD

$11.99

$

Usually ships in 2-12 days

0

33

Simplicity 5047697CSM

CONTROL SHAFT ASSEMBLY

$31.99

$

Usually ships in 2-12 days

0

34

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 703233

NUT, Hex Serrated Flange, 1/4-20

$4.49

$

In Stock, Qty 6
