1333 SWE (31AE993I100) - Cub Cadet 33" Snow Thrower (2000) Drive Belt Parts Diagram

33" Snow Thrower

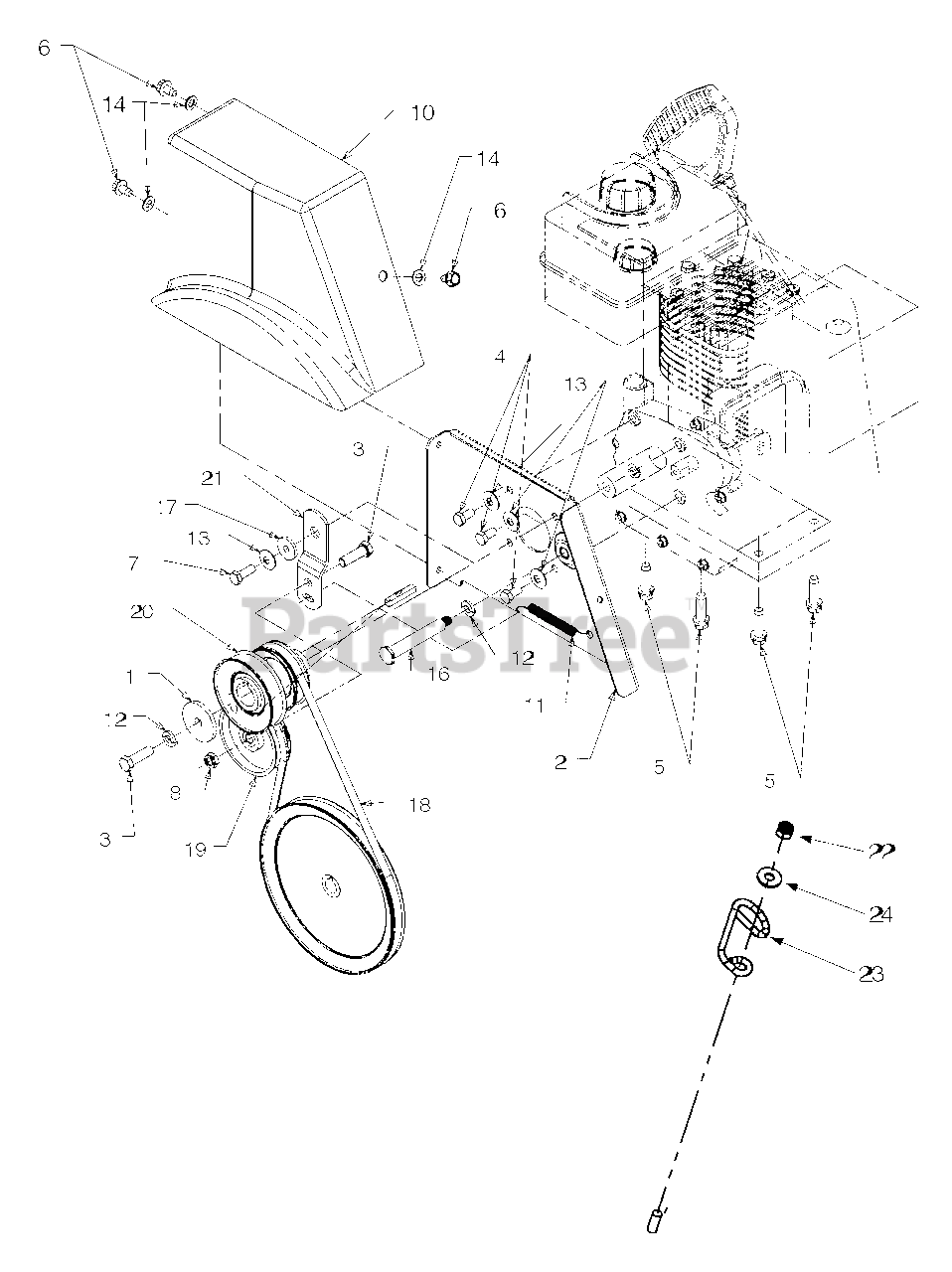

Drive Belt Parts Diagram

  • Title

1

Cub Cadet 07386

Wash:.390 ID x 1.75 O.D.

$

$

Not available

2

Cub Cadet 684-0123A

Brkt Asm:Cvr:Belt
(Superseded to 684-0123A-0637)

Variations

Cub Cadet 684-0123A-0637

BRACKET-BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0191

Hex Hd. Screw 3/8-24 x 1.25 (Gr. 8)

$4.99

$

In Stock, Qty 9

0

4

Cub Cadet 710-0237

Hex Hd. Screw 5/16-4 x .625 (Gr.5)

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0502A

Hex TT-Sems Screw 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0607

Hex TT-Tap Screw 5/16-18 Thd.

$6.99

$

In Stock, Qty 9

0

7

Cub Cadet 710-1245

Hex Lock Screw 5/16-24 x .875

$8.49

$

In Stock, only 4 left!

0

8

Cub Cadet 712-0116

Jam Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

9

Cub Cadet 714-0118

Key

$6.99

$

In Stock, only 4 left!

0

10

Cub Cadet 731-0321

Cvr:Belt
(Superseded to 931-2531)

$51.99

$

In Stock, only 1 left!

0

11

Cub Cadet 732-0303

Spring:Extension
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 11

0

12

Cub Cadet 736-0217

L-Wash .3/8

$4.49

$

In Stock, Qty 6

0

13

Cub Cadet 736-0242

Bell-wash. .340 I.D. x .872 O.D.

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0264

Washer:Flat

$6.99

$

In Stock, only 2 left!

0

16

Cub Cadet 738-0215A

Shoulder Screw

$9.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 754-0131

V-Belt
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 7

0

19

Cub Cadet 756-0240

Idler:Flat

$

$

Not available

20

Cub Cadet 756-0241B

Double Pulley

$99.99

$

In Stock, only 4 left!

0

21

Cub Cadet 784-5726

Idler:Brkt

$39.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-0324

Hex Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

23

Cub Cadet 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0173

Fl-Wash. .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0
