1333 E (31AE993I100) - Cub Cadet 33" Snow Thrower (1998) Drive Belt Parts Diagram

33" Snow Thrower

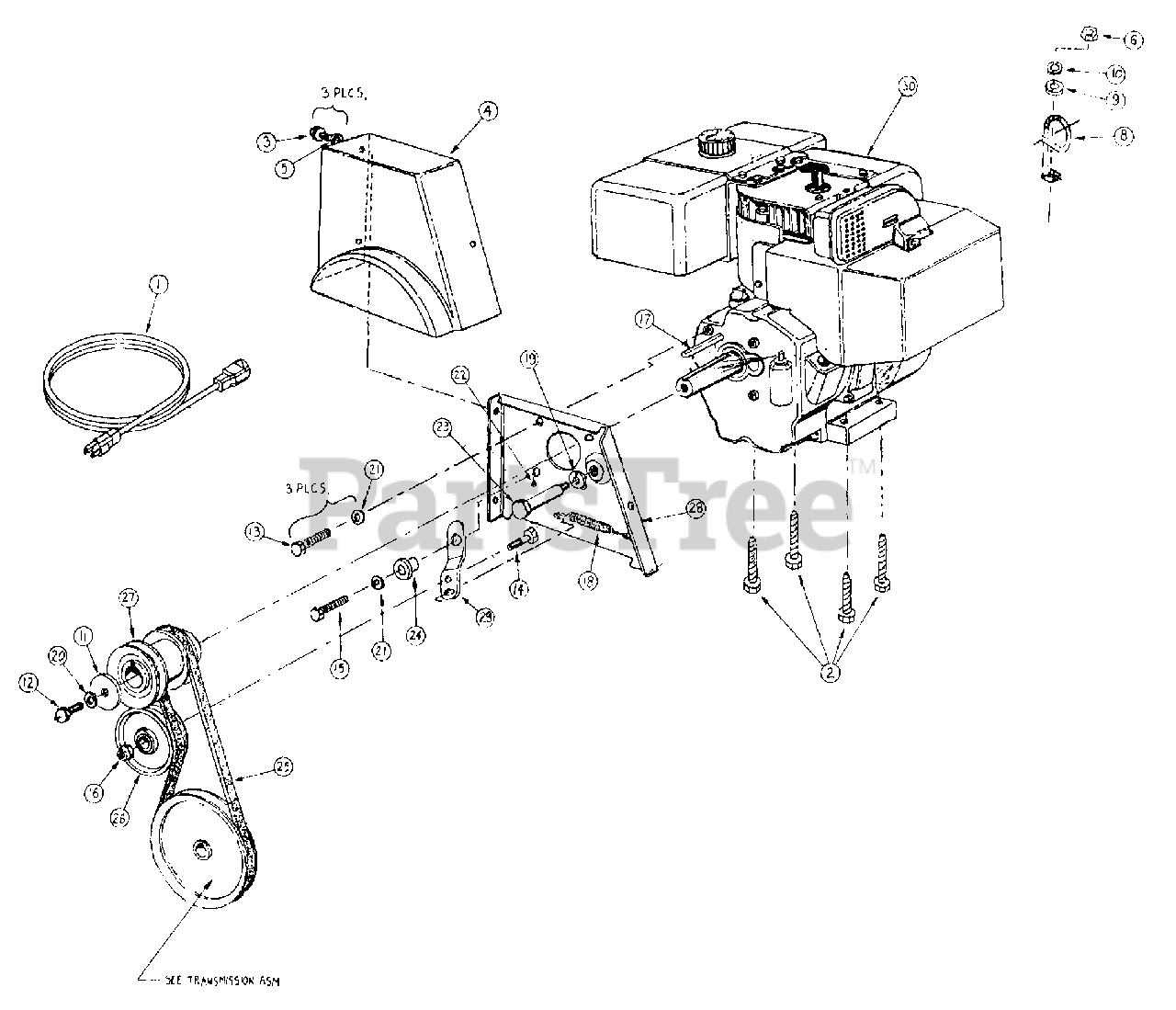

Drive Belt Parts Diagram

  • Title
1

Cub Cadet 629-0071

Extension Cord 10 Ft.
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

2

Cub Cadet 710-0502A

Hex L-wash Tt Scr 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

3

Cub Cadet 710-0607

Hwhd 5/16-18 x 1/2 Thd Roll Zn

$6.99

$

In Stock, Qty 11

0

4

Cub Cadet 731-0321-1

Belt Cover - Pierced

$

$

Currently unavailable

5

Cub Cadet 736-0264

Fl-wash .344 ID x .625 OD x .063

$6.99

$

In Stock, only 1 left!

0

6

Cub Cadet 712-3006

Nut 1/4-20 GR B Hex

$4.99

$

In Stock, Qty 19

0

8

Cub Cadet 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-0173

Fl-Wash .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

10

736 0329

Lock Washer 1/4

$

$

Not available

11

Cub Cadet 07386

Wash .39 ID x 1.75 OD x .175 T

$

$

Not available

12

Cub Cadet 710-0191

Scr Hex Cap 3/8-24 x 1. Gd 8

$4.99

$

In Stock, Qty 9

0

13

Cub Cadet 710-0237

Scr Hex Cap 5/16-24 x .62 Gd 5

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 710-0459

Scr Hex Cap 3/8-24 x 1.5 Gd 5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

15

Cub Cadet 710-1245

Hhcs 5/16-24 x 7/8 Gr 5

$8.49

$

In Stock, only 1 left!

0

16

Cub Cadet 712-0116

Hex Ins L-nut 3/8 - 24

$4.99

$

In Stock, Qty 6

0

17

Cub Cadet 714-0118

Square Key 1/4 x 1.5

$6.99

$

In Stock, only 4 left!

0

18

Cub Cadet 732-0303

Extension Spring .38 OD x 3.18 L
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

19

Cub Cadet 736-0169

L-wash 3/8

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0217

Lock Washer 3/8 Heavy

$4.49

$

In Stock, Qty 8

0

21

Cub Cadet 736-0242

Bell Wash .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 737-0157

Grease - Sunaplex 781 - 1/10

$

$

Currently unavailable

23

Cub Cadet 738-0215A

Shoulder Scr .498 Dia x 3.0 Lg

$9.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 748-0234

Shldr Spcr .50 Dia x .14 Shldr

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 754-0131

3v Belt 35.5 Lg
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 10

0

26

Cub Cadet 756-0240

3.0 OD Flat Idler With Flange

$

$

Not available

27

Cub Cadet 756-0241B

Dbl Engine Pulley 3.25 & 2.75

$99.99

$

In Stock, Qty 5

0

28

Cub Cadet 684-0123

Brkt Asm Cvr Belt 12 HP
(Superseded to 684-0123A-0637)

Variations

Cub Cadet 684-0123-0637

USE 684-0123A-0637 BRACKET-BE - POWDER BLACK (0637)

$

$

Not available

$

$

29

784 5726

Brkt Idlr Dr

$

$

Not available

30

Engine

$

$

Not available
