1332G - MTD Pro Walk-Behind Mower (2000) Spindle Assembly Parts Diagram

Pro Walk-Behind Mower

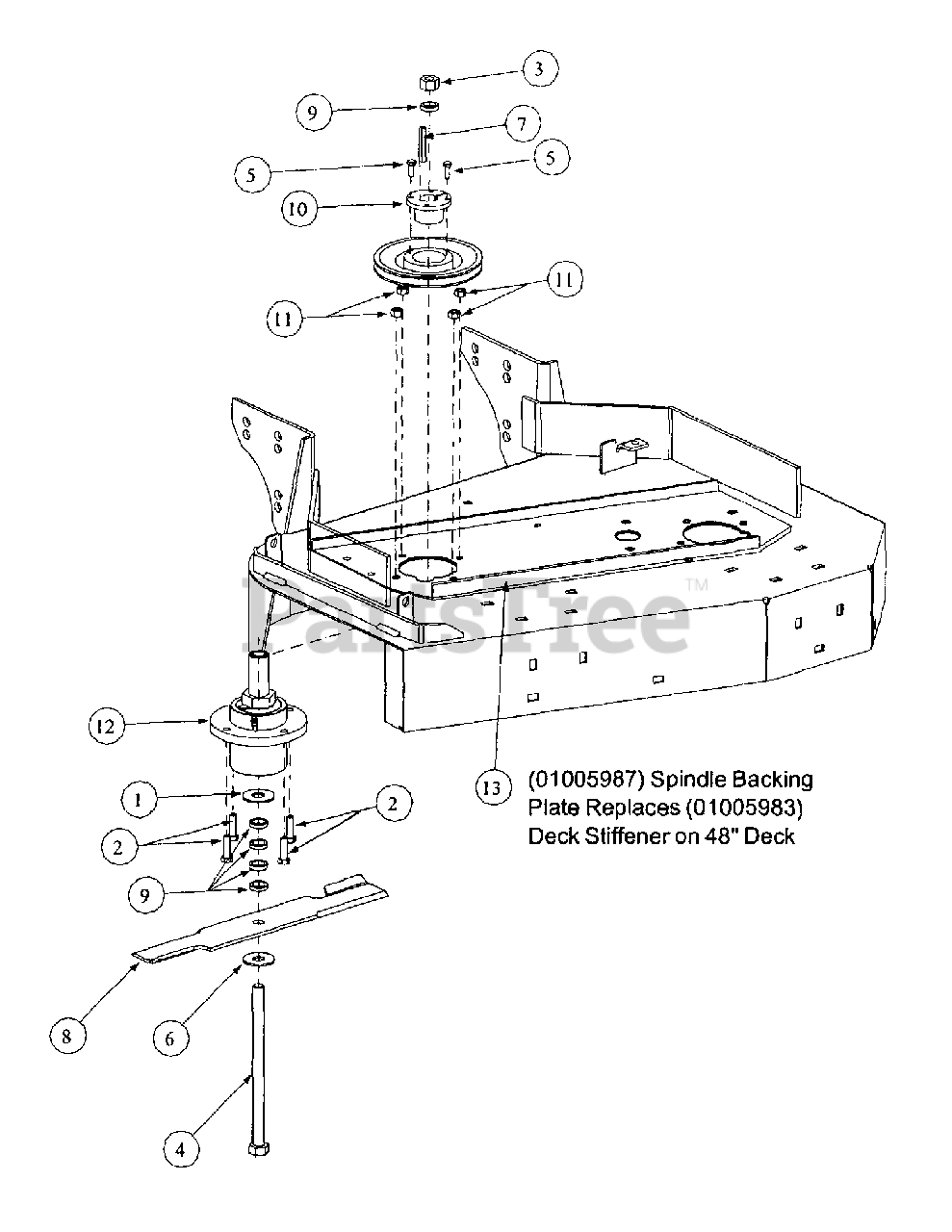

Spindle Assembly Parts Diagram

  • Title

1

MTD 00002766

Flat Washer, 1-1/2 x 5/8 x .05

$3.49

$

In Stock, only 4 left!

0

2

MTD 00011444

Hex Cap Screw, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

3

MTD 00011807

Hex Nut, 5/8-11

$

$

Not available

4

MTD 00013091

Hex Cap Screw, 5/8-11 x 9-1/2

$

$

Not available

5

MTD 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

6

MTD 00013432

Flat Washer, 5/8 Zinc

$8.49

$

In Stock, Qty 7

0

7

MTD 00021517

Key Stick, 1/4 x 1/4 x 2

$8.99

$

In Stock, only 1 left!

0

8

MTD 00021871

Rotary Blade, 16-1/2

$

$

Not available

9

MTD 00021924

Blade Spacer, 5/8 ID, 1/4 Thick

$

$

Not available

10

MTD 00021973

Bushing

$

$

Not available

11

MTD 00034224

Lock Nut, 3/8-16

$

$

Not available

12

MTD 00057412

Spindle Assembly

Note: NLA

$

$

Not available

13

MTD 01005046-0637

Deck Plate 32" Deck

$

$

Not available

13

MTD 01000150-0637

Deck Stiffener 48" Deck

$

$

Not available
