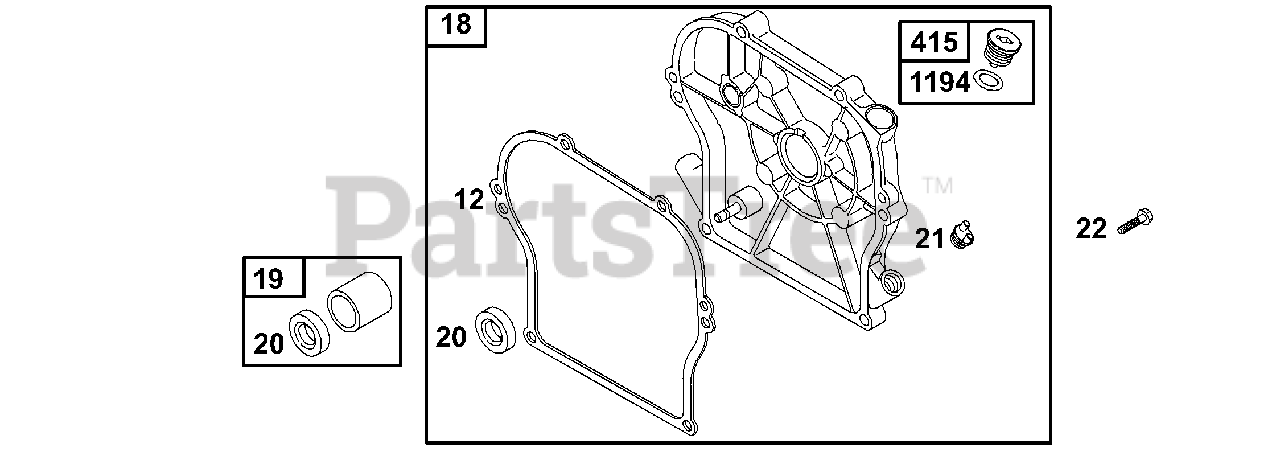

133292-0103-01 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Parts Diagram

Horizontal Engine

Crankcase Cover/Sump Parts Diagram

  • Title
12

Briggs & Stratton 270125

Gasket-Crankcase

Note: (.005" Thick)

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270126

Gasket-Crankcase

Note: (.009" Thick)

$8.49

$

In Stock, only 2 left!

0

12

Briggs & Stratton 692213

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$3.99

$

In Stock, only 4 left!

0

18

Briggs & Stratton 694375

Cover-Crankcase

$71.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 495660

Kit-Bushing/Seal

Note: (PTO Side) (PTO Side)

$

$

Not available

20

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

Note: (PTO Side)

$9.49

$

In Stock, Qty 11

0

20

Briggs & Stratton 691952

Seal-Oil

Note: (PTO Side) (PTO Side)

$9.99

$

In Stock, Qty 9

0

21

Briggs & Stratton 281658

Cap-Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691662

Screw
(Superseded to 692551)

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, only 2 left!

0

$10.99

$

Usually ships in 2-12 days

0

1194

Briggs & Stratton 691876

Seal-O Ring

Note: (Plug)

$5.49

$

In Stock, Qty 11

0
