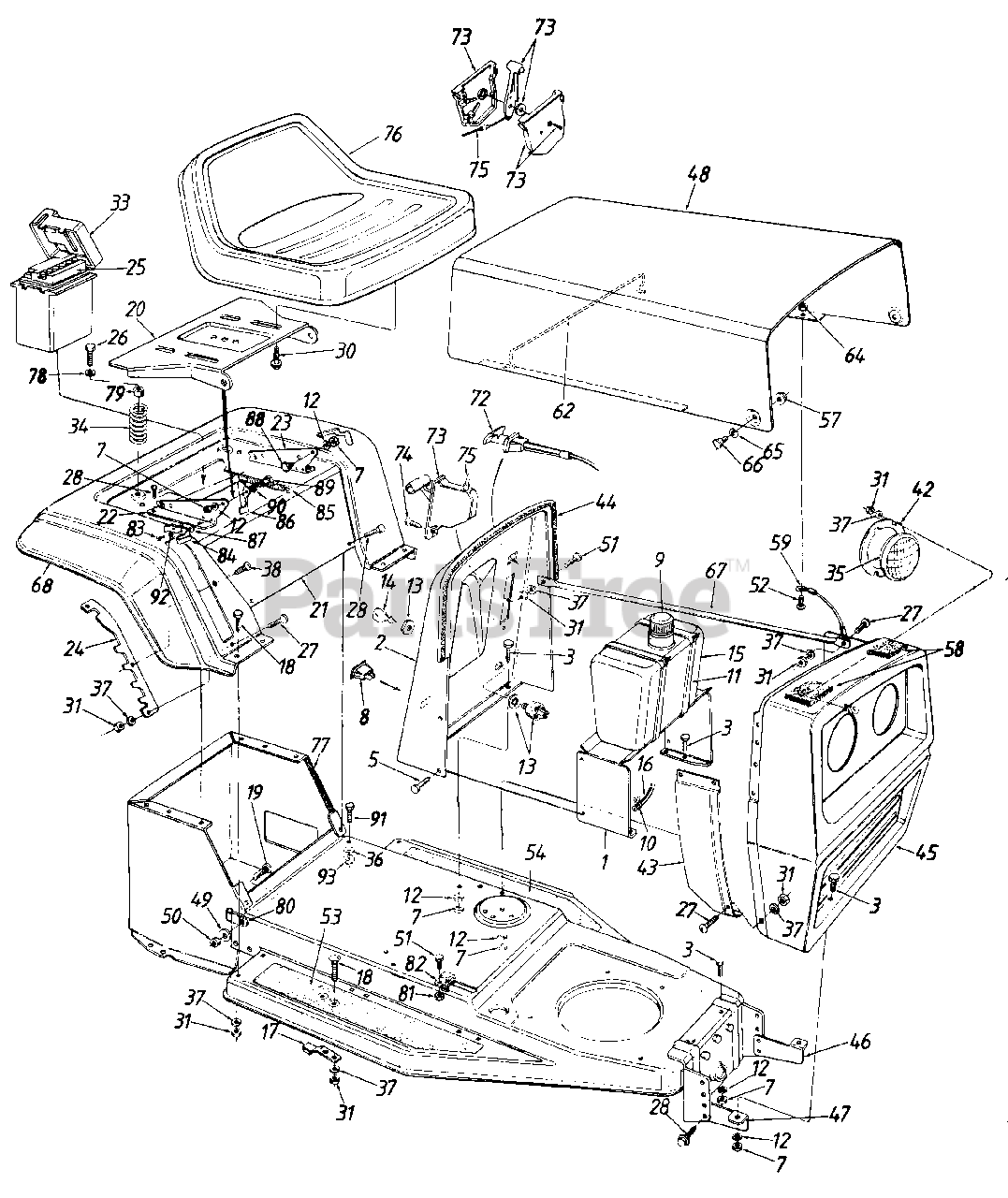

13327-9 - MTD Lawn Tractor (1989) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 16655

Dash Panel Support Brkt.

$

$

Not available

2

MTD 16656

Dash Panel

Variations

MTD 16656-0637

No Longer Available PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0776A

Hex AB-Tap Scr. 1/4 X .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

9

MTD 723-0333

Gas Gauge

$

$

Not available

10

MTD 726-0207

Hose Clamp

$

$

Not available

11

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

12

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

14

MTD 725-1123

Ignition Key

$

$

Not available

15

MTD 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

16

MTD 751-0173A

Gas Line

$

$

Currently unavailable

17

MTD 761-0157

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

18

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x .8"

$

$

Not available

20

MTD 15607D

Seat Pivot Brkt.
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

21

MTD 16660C

Rear Fender

$

$

Currently unavailable

22

MTD 17284

Seat Hinge Support Brkt. R.H.

$

$

Currently unavailable

23

MTD 17283

Seat Hinge Support Brkt. L.H.

$

$

Not available

24

MTD 17133A

Deck Lift Index Brkt.

$

$

Not available

25

MTD 725-0514A

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

26

MTD 710-0817

Hex Self-Tap Screw 5/6-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

27

MTD 710-0255

Truss Mach. Scr. 1/4-20 X .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0726

Hex AB-Tap Scr. 5/16 X .751 Lg.

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

33

MTD 731-0871A

Battery Box w/Cover
(Superseded to 731-0871B)

$

$

Not available

34

MTD 732-0548

Compression Spring

$

$

Not available

35

MTD 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

36

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

38

MTD 710-0351

Hex Wash. Hd. Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

42

MTD 09960

Headlight Retainer

$

$

Not available

43

MTD 14748A

Side Panel R.H.

$

$

Currently unavailable

MTD 14749A

Side Panel L.H.

Note: (Not Shown)

$

$

Currently unavailable

44

MTD 731-0511-31

Trim Strip 31" Lg.

$41.99

$

Usually ships in 3-6 days

0

45

MTD 14781

Grille

Variations

MTD 14781-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14781-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 14781-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

46

MTD 17143A

Grille Mtg. Brkt. L.H.

$

$

Not available

47

MTD 17144A

Grille Mtg. Brkt. R.H.

$

$

Not available

48

MTD 16681

Hood

Variations

MTD 16681-0499

No Longer Available HOOD-86 CL - CUB BEIGE (0499)

$

$

Not available

MTD 16681-0629

No Longer Available HOOD-86 CL - SILVER FLAKE (0629)

$

$

Not available

MTD 16681-0638

No Longer Available HOOD-86 CL - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

49

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

50

MTD 712-0241

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

51

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

52

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

53

MTD 723-0308A

Foot Pad R.H.

$

$

Not available

54

MTD 723-0309A

Foot Pad L.H.
(Superseded to 723-0309B)

$

$

Not available

57

MTD 712-0380

Lock Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

58

MTD 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

59

MTD 723-0302

Hood Stop

$12.99

$

Usually ships in 3-6 days

0

62

MTD 732-0414A

Hood Spring

$

$

Not available

64

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

65

MTD 736-0413

Spr. Wash. .39" I.D. x .62 O.D.

$6.99

$

In Stock, only 2 left!

0

66

MTD 738-0724

Shld. Bolt
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

67

MTD 749-0722

Grille Support

$

$

Not available

68

MTD 731-0511-81

Trim Strip 81" Lg.

$105.99

$

Usually ships in 3-6 days

0

72

MTD 746-0617A

Choke Control

$

$

Not available

73

MTD 831-0823A

Throttle Control Box

$32.99

$

In Stock, Qty 20+

0

74

MTD 710-0779A

Truss AB-Tap Scr. #10 x .5"

$4.49

$

In Stock, Qty 12

0

75

MTD 746-0638A

Throttle Wire

Note: (13357)

$

$

Currently unavailable

MTD 746-0501A

Throttle Wire
(Superseded to 746-0501)

Note: (13327)

$17.99

$

In Stock, only 1 left!

0

76

MTD 757-0345

Seat Assembly
(Superseded to 957-0378)

$

$

Not available

77

MTD 731-0511-5

Trim Strip 5" Lg.

$13.99

$

Usually ships in 3-6 days

0

78

MTD 736-0159

Flat Wash. .344" I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

79

MTD 722-0160

Bushing

$

$

Not available

80

MTD 726-0267

Clamp

$

$

Currently unavailable

81

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

82

MTD 726-0175

Clamp

$

$

Not available

83

MTD 710-0227

Hex Tap Scr. #8 x 5" Lg.

$4.49

$

In Stock, Qty 20+

0

84

MTD 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

85

MTD 732-0581

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

86

MTD 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

87

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

88

MTD 738-0155

Shld. Bolt .437" Dia. x .162 Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

89

MTD 738-0296

Shld. Bolt .437 Dia. x .268 Lg.

$4.49

$

In Stock, Qty 20+

0

90

MTD 736-0141

Spr. Wash. .445" I.D. x .75 O.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

91

MTD 710-0157

Hex Bolt 5/16-24 x 75" Lg.

$4.49

$

In Stock, Qty 18

0

92

MTD 736-0426

Fiber Washer

$

$

Not available

93

MTD 712-3057

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0
