133212-0121-01 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

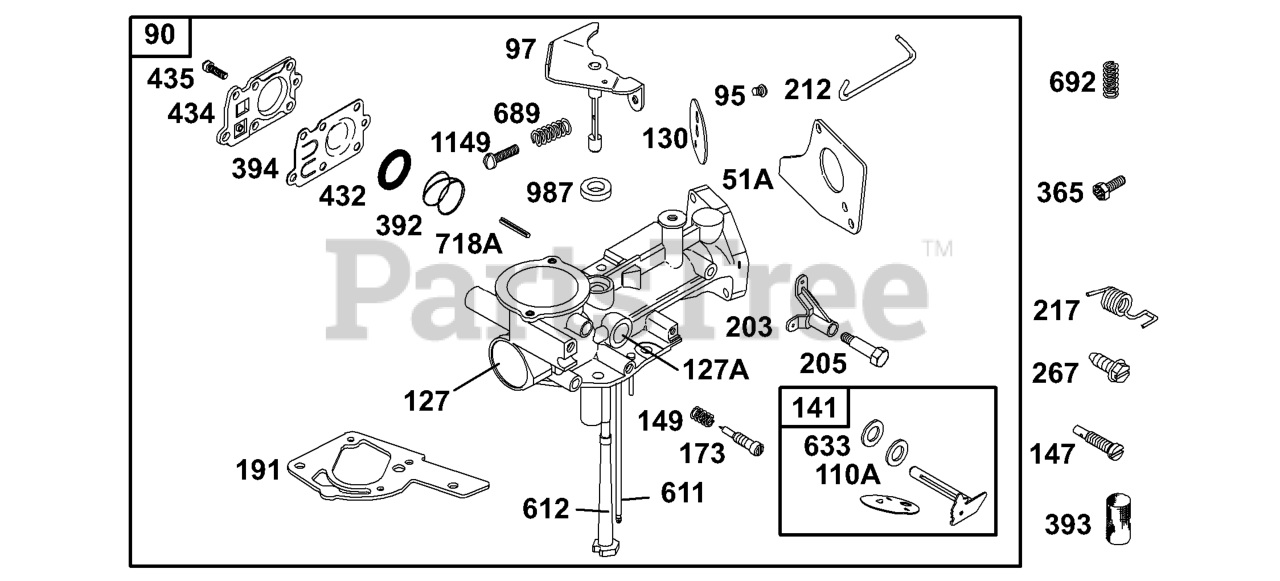

Carburetor Group Parts Diagram

  • Title

51A

Briggs & Stratton 273113

Gasket-Intake
(Superseded to 273113S)

$4.49

$

In Stock, Qty 17

0

90

Briggs & Stratton 498298

CARBURETOR

$149.99

$

In Stock, Qty 19

0

95

Briggs & Stratton 691437

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 3 left!

0

97

Briggs & Stratton 692325

Shaft-Throttle

$16.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 691869

Washer

Note: (Choke Shaft) (Choke Shaft)

$3.99

$

In Stock, only 3 left!

0

110A

Briggs & Stratton 690401

Washer

Note: (Choke Shaft) (Brass)

$3.99

$

In Stock, only 1 left!

0

127

Briggs & Stratton 691718

Plug-Welch

$13.99

$

In Stock, only 4 left!

0

127A

Briggs & Stratton 691742

PLUG, Welch

$4.99

$

In Stock, only 2 left!

0

130

Briggs & Stratton 691743

Valve-Throttle

$7.49

$

In Stock, only 1 left!

0

141

Briggs & Stratton 491177

Kit-Choke Shaft

Note: Used Before Code Date 94090100

$

$

Not available

141

Briggs & Stratton 497230

Kit-Choke Shaft

Note: Used After Code Date 94083100

$15.99

$

In Stock, only 4 left!

0

147

Briggs & Stratton 692725

Jet-Pilot

Note: (High Altitude)

$21.99

$

Usually ships in 2-12 days

0

149

Briggs & Stratton 691592

Spring-Needle Valve

$3.99

$

In Stock, only 4 left!

0

173

Briggs & Stratton 691777

Valve-Idle Mixture

$17.99

$

In Stock, only 2 left!

0

191

Briggs & Stratton 692241

Gasket-Fuel Tank

$4.49

$

In Stock, Qty 20+

0

203

Briggs & Stratton 691906

Crank-Bell

Note: (Standard)(Nylon)

$7.99

$

In Stock, only 1 left!

0

205

Briggs & Stratton 691776

Screw

Note: (Bell Crank)

$

$

Not available

212

Briggs & Stratton 691812

Link-Throttle

$8.99

$

In Stock, only 1 left!

0

217

Briggs & Stratton 691815

Spring-Choke Return

$

$

Not available

267

Briggs & Stratton 691082

Screw

Note: (Casing Clamp)

$4.99

$

In Stock, only 1 left!

0

365

Briggs & Stratton 690953

Screw

Note: (Carburetor/Throttle Body)

$5.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 691823

Spring-Pump Diaphragm

$4.99

$

In Stock, only 2 left!

0

393

Briggs & Stratton 691213

Screen-Carburetor

$8.49

$

In Stock, only 4 left!

0

394

Briggs & Stratton 272538

Diaphragm-Carburetor
(Superseded to 272538S)

Note: (Pump)

$3.99

$

In Stock, Qty 20+

0

432

Briggs & Stratton 690766

Cap-Spring

$4.99

$

In Stock, only 3 left!

0

434

Briggs & Stratton 691713

Cover-Diaphragm

$10.99

$

In Stock, only 1 left!

0

435

Briggs & Stratton 691619

Screw

Note: (Diaphragm Cover)

$6.49

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 691770

Pipe-Fuel

$6.49

$

In Stock, Qty 12

0

612

Briggs & Stratton 391813

Tube-Pick Up

Note: (Uses Spring Clip)

$

$

Not available

633

Briggs & Stratton 691869

Seal-Choke/Throttle Shaft

$3.99

$

In Stock, only 3 left!

0

689

Briggs & Stratton 691783

Spring-Friction

Note: (Idle Screw)

$7.99

$

In Stock, Qty 11

0

987

Briggs & Stratton 695273

Seal-Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

1149

Briggs & Stratton 691624

Screw

Note: (Throttle Shaft)

$3.99

$

Usually ships in 2-12 days

0
