1332 PE (1696045) - John Deere 32" Snow Thrower (2011) Engine & Frame Group Parts Diagram

32" Snow Thrower

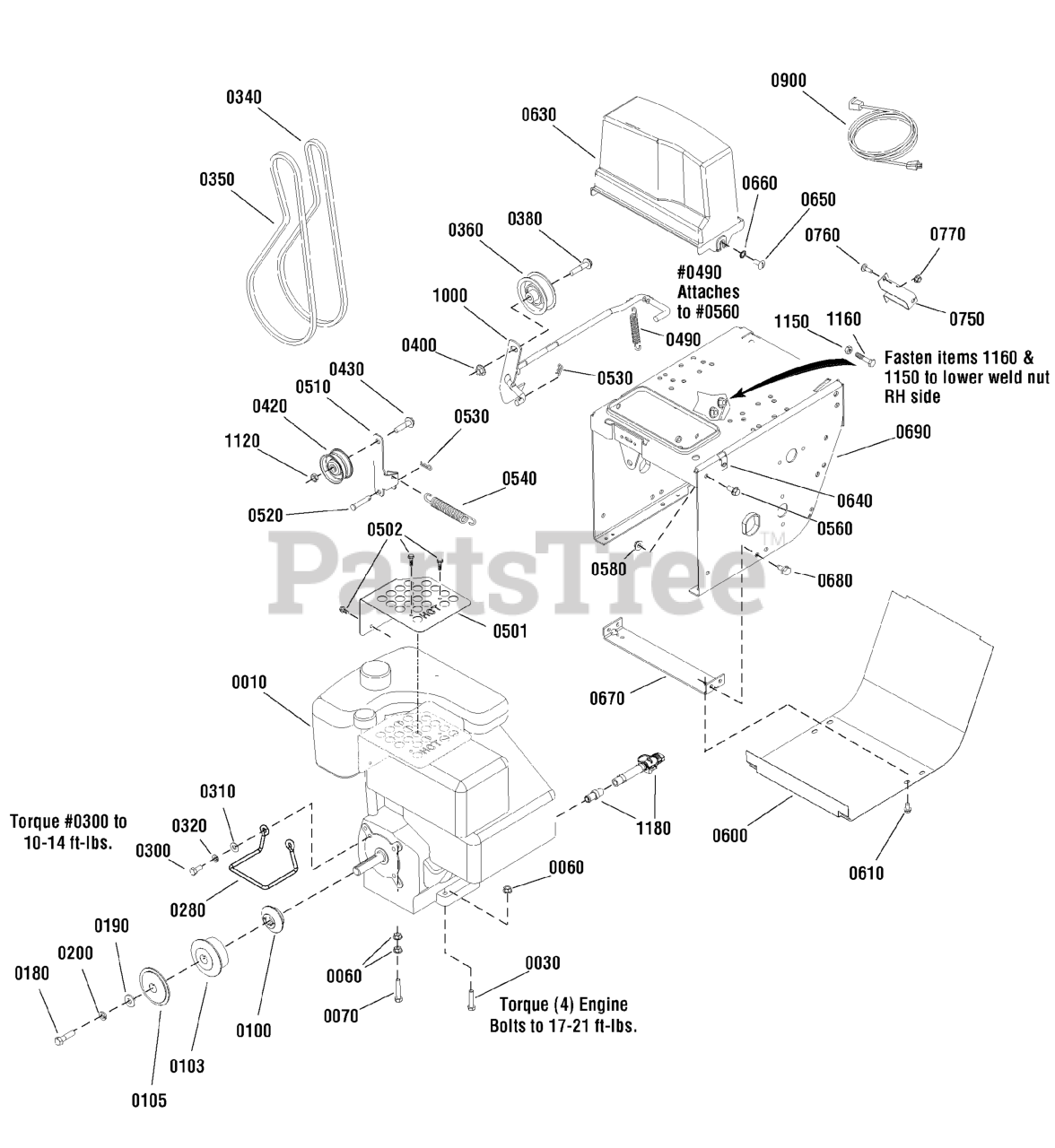

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 21M314-0126-F1

* ENGINE, 16.5TP, 9A DOM

Note: (Model # 21M314-0126-F1)

$

$

Currently unavailable

0030

Murray 1921221SM

CAPSCREW, Hex Head, 5/16-18 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

0060

Murray 2831277SM

NUT, Hex Flange, Whiz-Lock, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

0070

Murray 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0100

Murray 1726865SM

PULLEY, Engine, Inside

$42.99

$

Usually ships in 2-12 days

0

0103

Murray 1726866SM

PULLEY, Engine, Middle

$52.99

$

Usually ships in 2-12 days

0

0105

Murray 1726867SM

PULLEY, Engine, Outside

$39.99

$

Usually ships in 2-12 days

0

0180

Murray 1922128SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

0190

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0200

Murray 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

0280

Murray 1727785SM

STOP, Belt

$19.99

$

Usually ships in 2-12 days

0

0300

Murray 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0310

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

0320

Murray 1917356SM

LOCKWASHER, Spring, 5/16, Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0340

Murray 1666655SM

V-BELT, HA, 41.30

$29.99

$

In Stock, Qty 7

0

0350

Murray 1672732SM

V-BELT, 3L, 31

$20.99

$

In Stock, Qty 15

0

0360

Murray 1726348SM

PULLEY, Idler, 2-3/4

$24.99

$

In Stock, only 4 left!

0

0380

Murray 2860709SM

SCREW, Hex Flange, 3/8-16 x 1-3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

0400

Murray 1928352SM

NUT, Hex Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0420

Murray 1668477SM

PULLEY, Idler, 2-1/4" OD, 3/8 ID

$23.99

$

In Stock, Qty 20+

0

0430

Murray 1960647SM

SCREW, Hex Head, 3/8-16 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

0490

Murray 2159106SM

SPRING, Extension, 4-1/4
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

0501

Murray 797095

GUARD, Muffler

$45.99

$

Usually ships in 2-12 days

0

0502

Murray 699234

SCREW, Hex Head, Muffler Guard

$3.99

$

In Stock, only 2 left!

0

0510

Murray 1703046BMYP

ARM, Idler

$18.99

$

Usually ships in 2-12 days

0

0520

Murray 1665994SM

PIN, Flat Head, Drilled, 1-3/4
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

0530

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0540

Murray 1727149SM

SPRING, Extension, 5-7/8
(Superseded to 703146)

$

$

Not available

0560

Murray 1930591SM

SCREW, Hex Flange, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

0580

Murray 1927557SM

NUT, Hex Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0600

Murray 1726870FYP

COVER, Bottom

$80.99

$

Usually ships in 2-12 days

0

0610

Murray 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0630

Murray 1725287SM

COVER, Belt, Black
(Superseded to 706414)

$

$

Not available

0640

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

0650

Murray 1918249SM

SCREW, 5/16-18 X 3/4, Slotted Truss Head, Blk

$4.99

$

Usually ships in 2-12 days

0

0660

Murray 2820426SM

WASHER, Lock, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

0670

Murray 1727004BMYP

SUPPORT, Tie Bar

$14.99

$

Usually ships in 2-12 days

0

0680

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0690

Murray 1726568FYP

FRAME

$199.99

$

Usually ships in 2-12 days

0

0750

Murray 1720404BMYP

SUPPORT, Clutch, Cable

$12.99

$

Usually ships in 2-12 days

0

0760

Murray 1931317SM

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0770

Murray 1960685SM

NUT, Hex, Conical Washer, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0900

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

1000

Murray 1729646BMYP

CLUTCH, Rod/Brake Arm

$117.99

$

Usually ships in 2-12 days

0

1120

Murray 1928731SM

NUT, Hex, Toplock Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

1150

Murray 1920161SM

NUT, Hex Jam, 5/16-18, NC-2B

$4.49

$

In Stock, only 2 left!

0

1160

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

1180

Murray 798980

OIL DRAIN ASSEMBLY

$

$

Not available
