1332 PE (1695624) - John Deere 32" Snow Thrower (2009) Chute & Rotation Group Parts Diagram

32" Snow Thrower

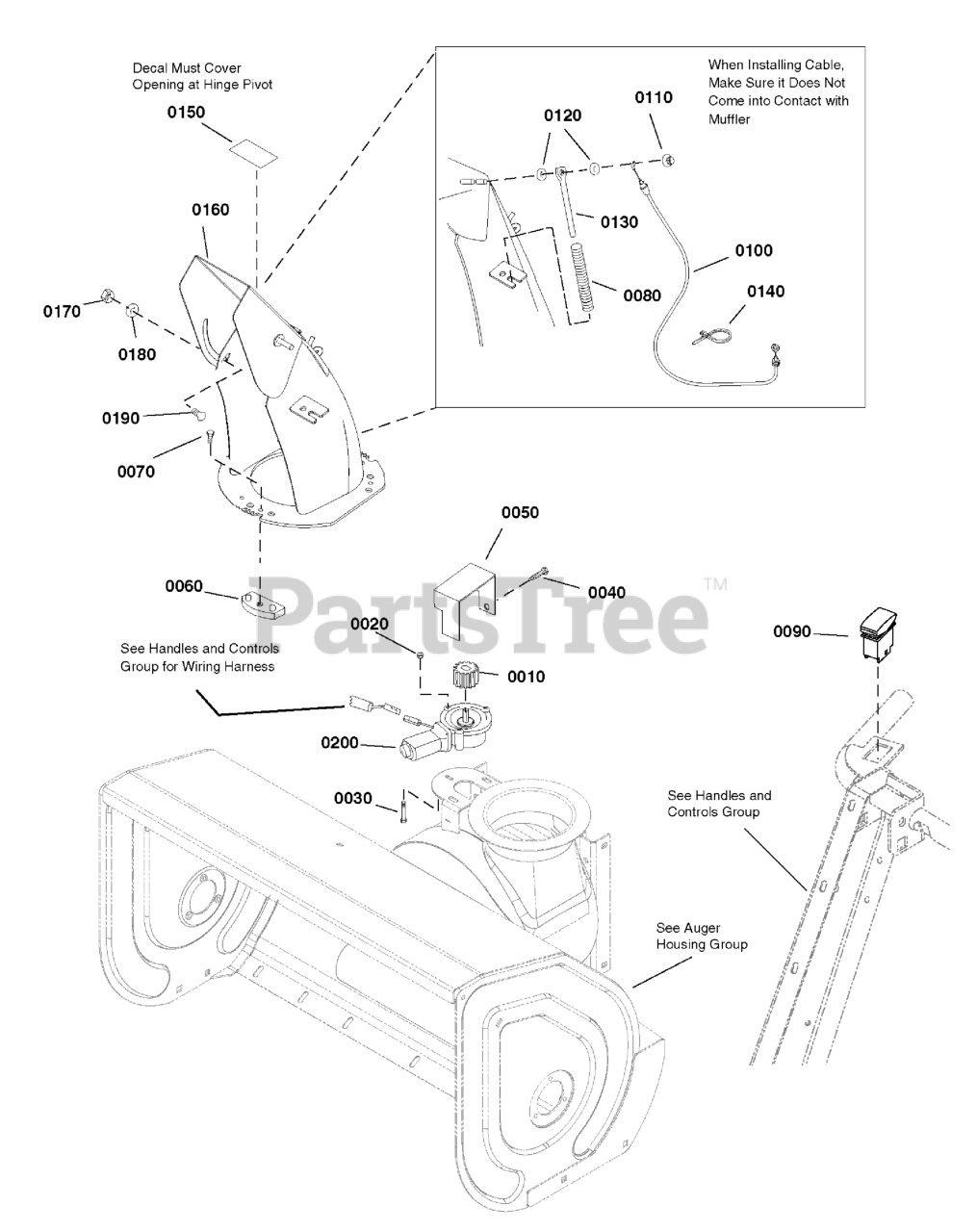

Chute & Rotation Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION, 1-1/4

$17.99

$

In Stock, only 4 left!

0

0020

Murray 1960745SM

NUT, Hex Flange, 10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0030

Murray 2860604SM

SCREW, Hex Washer Head, Slot, #10C x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 1927428SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1733934ASM

COVER, Gear

$

$

Not available

0060

Murray 1666613SM

HOLD DOWN, Chute, Black Nylon

$3.49

$

In Stock, Qty 20+

0

0070

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

0080

Murray 1734647SM

SPRING, Compression
(Superseded to 703135)

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 1728969SM

SWITCH, Chute Control

$54.99

$

In Stock, only 1 left!

0

0100

Murray 1732971SM

CABLE, Deflector Control
(Superseded to 1750623YP)

$49.99

$

In Stock, Qty 6

0

0110

Murray 1932718SM

NUT, Push 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

0120

Murray 1666697SM

SPACER, 5/16 ID x 1/2 OD x 1/4

$6.49

$

In Stock, only 2 left!

0

0130

Murray 1734708ASM

ROD, Spring Guide, 5-7/8

$13.99

$

Usually ships in 2-12 days

0

0140

Murray 2825094SM

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0150

Murray 1734738SM

DECAL, Hinge, Frontier Green, 7/8 x 4

$10.99

$

Usually ships in 2-12 days

0

0160

Murray 1734400FYP

CHUTE & DEFLECTOR ASSEMBLY

$231.99

$

Usually ships in 2-12 days

0

0170

Murray 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0180

Murray 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 2 left!

0

0190

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0200

Murray 1728965SM

MOTOR, Spout Rotator

$176.99

$

In Stock, Qty 8

0
