1332 - MTD Pro Walk-Behind Mower Kohler Engine Head, Valve & Breather Style A Parts Diagram

Pro Walk-Behind Mower

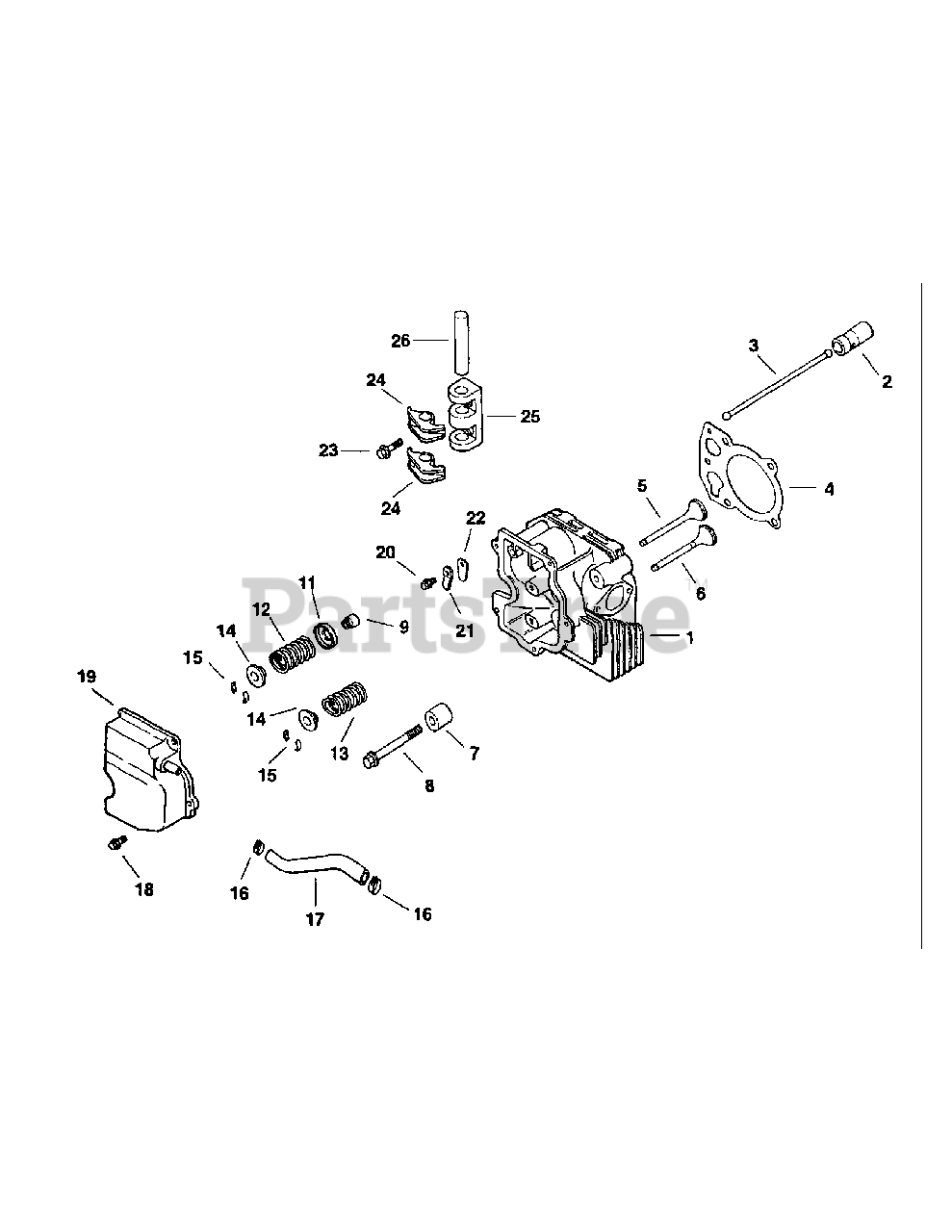

Kohler Engine Head, Valve & Breather Style A Parts Diagram

  • Title
1

MTD KH-12-755-81

Head, Cylinder

$

$

Not available

2

MTD KH-25-351-10-S

Lifter, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

3

MTD KH-12-411-04-S

Rod, Push

$4.49

$

In Stock, only 1 left!

0

4

MTD KH-12-041-08-S

Gasket, Cylinder Head

$20.99

$

Usually ships in 2-5 days

0

5

MTD KH-12-017-01

Valve, Intake (Std.)

$

$

Not available

5

MTD KH-12-017-02

Valve, intake (.25 o.s.)

$

$

Not available

6

MTD KH-12-016-01

Valve, Exhaust (Std.)

$

$

Not available

6

MTD KH-12-016-02

Valve, Exhaust (.25 o.s.)

$

$

Not available

7

MTD KH-12-112-04

Spacer, Head Bolt Exhaust Port

Note: NLA

$

$

Not available

8

MTD KH-20-086-02-S

Screw, Hex Flange

$3.99

$

In Stock, Qty 17

0

9

MTD KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

11

MTD KH-235011-S

Spring, Retainer

$6.49

$

In Stock, only 2 left!

0

12

MTD KH-12-089-34-S

Spring, Intake Valve

$10.99

$

In Stock, only 2 left!

0

13

MTD KH-12-089-15

Spring, Exhaust Valve

$

$

Not available

14

MTD KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

15

MTD KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 2 left!

0

16

MTD KH-25-237-31-S

Clamp, Hose

$4.99

$

In Stock, only 2 left!

0

17

MTD KH-12-326-03

Hose, Breather

$

$

Not available

18

MTD KH-M-645020-S

Screw, Hex Flange
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

19

MTD KH-12-755-102-S

Cover, Valve w/Nipple

$86.99

$

Usually ships in 2-5 days

0

20

MTD KH-M-0545010

Screw, Hex Flange

$

$

Not available

21

MTD KH-66-018-04-S

Retainer, Breather Reed

$4.99

$

In Stock, Qty 6

0

22

MTD KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

23

MTD KH-M-642025-S

Screw, Hex Flange

$2.49

$

In Stock, only 1 left!

0

24

MTD KH-12-186-01

Arm, Rocker

Note: NLA

$

$

Not available

25

MTD KH-12-126-05

Bridge, Rocker Arm

$

$

Not available

26

MTD KH-12-144-03

Shaft, Rocker Arm

Note: NLA

$

$

Not available
