1332 - MTD Pro Walk-Behind Mower Handle Assembly Parts Diagram

Pro Walk-Behind Mower

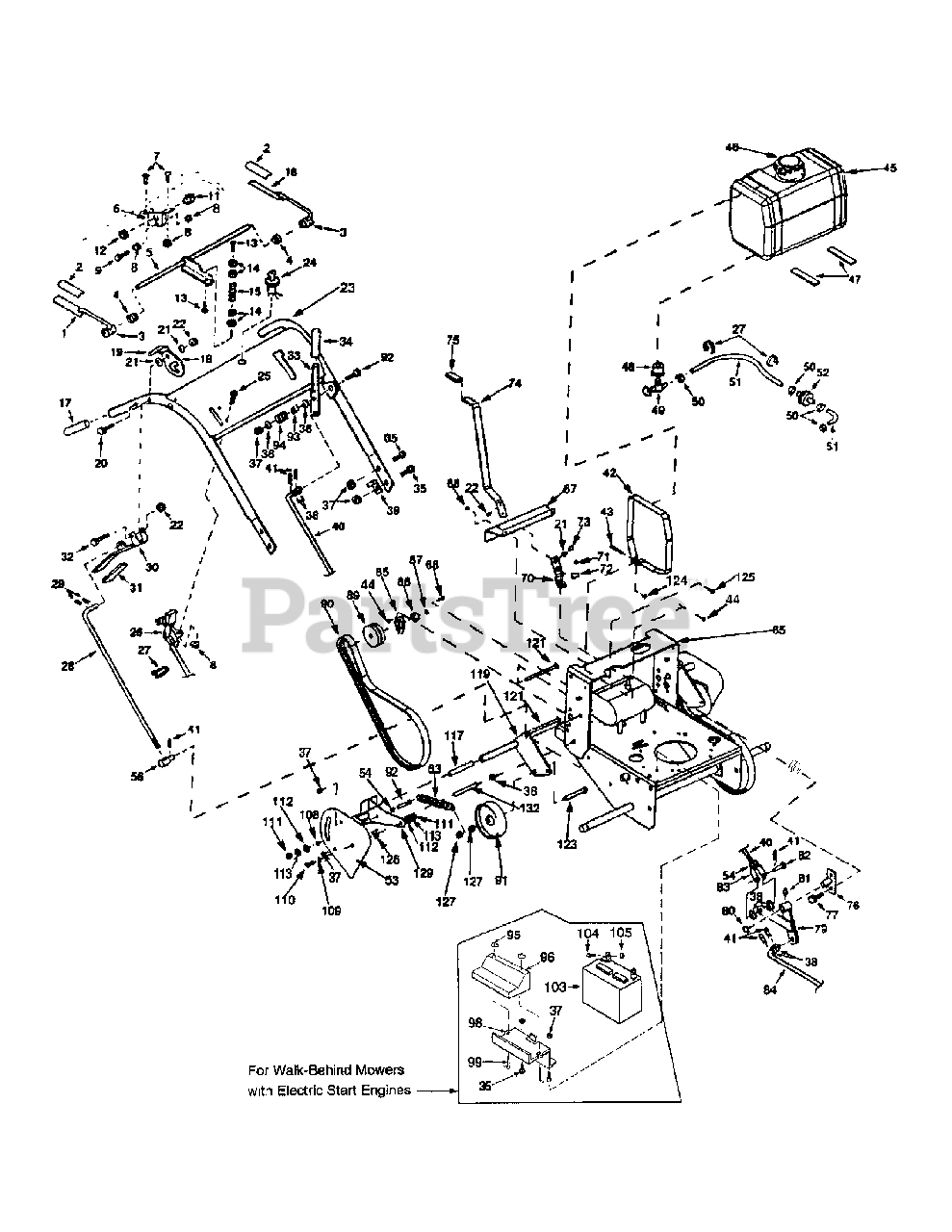

Handle Assembly Parts Diagram

  • Title

1

MTD 00089089

Right Handle, Operator Presence

Note: NLA

$

$

Not available

2

MTD 00030899

Grip, 3-1/2" Yellow

$

$

Not available

3

MTD 00034961

Set Screw, 1/4-20 x 3/8 Square Hd.

$

$

Not available

4

MTD 00087108

Bushing, Nylon

Note: NLA

$

$

Not available

5

MTD 00082439

Shaft Assembly

$

$

Not available

6

MTD 00087127

Switch Mount

$

$

Not available

7

MTD 00030906

Machine Screw, #10-32 x 5/8 Truss Hd.

$6.99

$

Usually ships in 3-6 days

0

8

MTD 00014608

Hex Nut, #10-32 Nylock
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

9

MTD 00019854

Cap Screw, #10-32 x 1-1/2 Socket Hd.

Note: NLA

$

$

Not available

11

MTD 00015903

Switch, Operator Presence

$44.99

$

In Stock, only 1 left!

0

12

MTD 00090995

Hex Nut, Machined

$

$

Not available

13

MTD 00018902

Machine Screw, #5-40 x 1/2 Round Hd.

Note: NLA

$

$

Not available

14

MTD 00014623

Hex Nut, #5-40

$

$

Not available

15

MTD 00096275

Return Spring

$

$

Not available

16

MTD 00089011

Left Handle, Operator Presence

Note: NLA

$

$

Not available

17

MTD 00030378

Grip, 4-1/2" Black

$

$

Not available

18

MTD 00021910

Lever, Neutral Latch, R.H.

$

$

Not available

18

MTD 00021858

Lever, Neutral Latch, L.H.

Note: NLA

$

$

Not available

19

MTD 00011211

Grip, 1-1/4" Black

$8.99

$

In Stock, only 2 left!

0

20

MTD 00013198

Cap Screw, 5/16-18 x 2 Hex Hd.
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

21

MTD 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

22

MTD 00012165

Hex Nut, 5/16-18 Nylock

$4.99

$

In Stock, only 1 left!

0

23

MTD 01001008

Handle Assembly

Note: NLA

$

$

Not available

24

MTD 00010943P

Ignition Switch

$

$

Not available

24

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 8

0

24

MTD 00032097

Hex Nut, 5/8-32 with Cap
(Superseded to 00032097P)

$

$

Not available

25

MTD 00013669

Machine Screw, #10-32 x 1/2 Hex Washer Hd.

$2.99

$

Usually ships in 3-6 days

0

26

MTD 00019550P

Engine Throttle, 13 HP Kohler

$

$

Not available

26

MTD 00019550P

Engine Throttle, 14 HP Kawasaki

$

$

Not available

26

MTD 01003422

Engine Throttle, 16 HP B & S

$

$

Not available

26

MTD 00019550P

Engine Throttle, 17.0 HP Engine

$

$

Not available

27

MTD 725-0157

Cable Ties, Black

$3.99

$

In Stock, only 2 left!

0

28

MTD 00021927

Control Rod, Steering/Brake

$33.99

$

Usually ships in 3-6 days

0

29

MTD 00012204

Cotter Pin, 3/32 x 3/4

$

$

Not available

30

MTD 00021937

Steering/Brake Lever

Note: NLA

$

$

Not available

31

MTD 00011215

Grip, 4-1/2" Black

Note: NLA

$

$

Not available

32

MTD 00012747

Cap Screw, 5/16-18 x 2-1/4 Hex Hd.

$

$

Currently unavailable

33

MTD 01003209-0637

Lever, Blade Clutch

$

$

Not available

34

MTD 00022223

Grip, 5" Black

$

$

Not available

35

MTD 01000643

Cap Screw, 3/8-16 x 1-1/4 Hex Hd.

$5.49

$

In Stock, Qty 7

0

36

MTD 00006168

Flat Washer, 3/8 Large
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

37

MTD 712-04065

Hex Nut, 3/8-16 Nylock

$3.99

$

In Stock, Qty 20+

0

38

MTD 00012158

Flat Washer, 3/8 Small

$4.49

$

In Stock, Qty 9

0

39

MTD 00031081

Support Clamp, 1/2"

$6.49

$

Usually ships in 3-6 days

0

40

MTD 00021926

Upper Rod, Blade Clutch

$

$

Not available

41

MTD 00021956

Hairpin, 3/8" - 1/2"
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

42

MTD 01001023

Tank Strap

$56.99

$

Usually ships in 3-6 days

0

43

MTD 00031675

Machine Screw, 1/4-20 x 2-1/2 Phillips Hd.

$

$

Currently unavailable

44

MTD 00012152

Hex Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

45

MTD 01000122

Gas Tank, 5 Gallon

$168.99

$

Usually ships in 3-6 days

0

46

MTD 951-3124E

Cap, Gas Tank

$36.99

$

In Stock, only 3 left!

0

47

MTD 00021407

Rubber Pad

$6.49

$

Usually ships in 3-6 days

0

47

MTD 00021407

Rubber Pad

$6.49

$

Usually ships in 3-6 days

0

48

MTD 02002253

Rubber Bushing

$4.99

$

In Stock, only 2 left!

0

49

MTD 00030784

Fuel Valve

$

$

Not available

50

MTD 00012235

Uni-Clamp
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

51

MTD 02001911-5

Hose, 1/4 Fuel Line

$

$

Not available

52

MTD 00012292

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

53

MTD 01001016

Belt Guard

$

$

Not available

54

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

56

MTD 00021943

Swivel Joint

$20.99

$

In Stock, only 1 left!

0

63

MTD 01021965

Spring, Idler Tension

$

$

Currently unavailable

65

MTD 01001020

Engine Deck, 32" Mower
(Superseded to 01000121-0637)

$

$

Not available

67

MTD 01000092-0637

Shift Panel

$

$

Not available

68

MTD 00017584

Carriage Bolt, 1/4-20 x 3/4

$

$

Not available

70

MTD 01000093

Shift Arm

$59.99

$

Usually ships in 3-6 days

0

71

MTD 00011454

Hex Nut, 3/8-24 Nylock

$

$

Not available

72

MTD 00030355

Washer, Belleville, 1.12 x .38 x .053

$

$

Not available

73

MTD 00013092

Cap Screw, 5/16-18 x 3/4 Hex Hd.
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

74

MTD 01001014

Shift Handle

$

$

Not available

75

MTD 00030884

Grip, 3-1/2" Yellow

$8.99

$

Usually ships in 3-6 days

0

76

MTD 00021906

Bellcrank Pivot

$164.99

$

Usually ships in 3-6 days

0

77

MTD 00031602

Carriage Bolt, 1/4-20 x 1’’

$3.49

$

Usually ships in 3-6 days

0

79

MTD 00021902

Clutch Bellcrank
(Superseded to 01009455)

$85.99

$

Usually ships in 3-6 days

0

80

MTD 00021962

E-Ring, 5/8"

$

$

Not available

81

MTD 737-04345

Grease Fitting, 1/4-28 Straight

$4.99

$

In Stock, Qty 6

0

82

MTD 00009678

Clevis Pin, 3/8 x 1-3/16
(Superseded to 711-05735)

$12.99

$

Usually ships in 3-6 days

0

83

MTD 00021955

Yoke, 3/8-16 Female

$42.99

$

In Stock, only 1 left!

0

84

MTD 00021884

Rod, Blade Clutch

$

$

Not available

85

MTD 02000487

Bearing Housing
(Superseded to 741-04566)

$15.99

$

Usually ships in 3-6 days

0

86

MTD 941-0155

Bearing

$23.99

$

In Stock, Qty 18

0

87

MTD 00021964

Retaining Ring, External

$

$

Not available

89

MTD 00021969

Pulley, Jackshaft

$

$

Not available

90

MTD 01000151

Drive Belt

$64.99

$

In Stock, only 1 left!

0

91

MTD 00021976

Drive Idler

$

$

Not available

92

MTD 00002528

Cap Screw, 3/8-16 x 2 Hex Hd.

$6.99

$

In Stock, Qty 7

0

93

MTD 00076730

Spring Sleeve

$5.99

$

Usually ships in 3-6 days

0

94

MTD 00021797

Spring

$9.49

$

Usually ships in 3-6 days

0

95

MTD 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

96

MTD 01000204

Battery Cover

$11.99

$

Usually ships in 3-6 days

0

98

MTD 01002664

Gray Battery Tray

$

$

Not available

99

MTD 911-0222A

Battery Hold Down Rod

$11.99

$

In Stock, only 1 left!

0

103

MTD 925-1707D

Battery, 12 Volt

$

$

Not available

104

MTD 00013131

Cap Screw, 1.4-20 x 3/4 Hex Hd.

$6.49

$

In Stock, only 1 left!

0

105

MTD 00012152

Hex Nut, 1/4-20 Nylock

$4.49

$

In Stock, only 1 left!

0

108

MTD 01000117

Roller Tube

$

$

Not available

109

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

110

MTD 00006144

Hex Head Cap Screw 3/8 - 16 x 1"

$6.99

$

Usually ships in 3-6 days

0

111

MTD 01000100

Shoulder Nut

$

$

Not available

112

MTD 01000101

Washer, Slide
(Superseded to 936-0414)

$

$

Not available

113

MTD 00012577

Washer, Spec 1/2

$5.49

$

In Stock, Qty 12

0

117

MTD 00036665

Sleeve Idler

$

$

Not available

119

MTD 01001009-0637

Idler Bracket, R.H.

$

$

Not available

119

MTD 01001012

Idler Bracket, L.H.

Note: NLA

$

$

Not available

121

MTD 01000642

Carriage Bolt, 3/8-16 x 5-1/2

$18.99

$

In Stock, only 3 left!

0

123

MTD 01000226

Hex Cap Screw, 1/2-13 x 3-1/2

$

$

Not available

124

MTD 00013291

Hex Nut, 1/4-20

$2.99

$

In Stock, only 3 left!

0

125

MTD 00017584

Carriage Bolt, 1/4-20 x 3/4

$

$

Not available

127

MTD 00012428

Nylock Nut, 1/2 - 13

$6.99

$

In Stock, only 2 left!

0

128

MTD n/a

(Purchase Locally)

$

$

Currently unavailable

129

MTD 01001018

Spring Tension Adj.

$

$

Not available

132

MTD 01000130

Tube Spacer

$

$

Not available
