1332 - MTD Pro Walk-Behind Mower Engine Deck Parts Diagram

Pro Walk-Behind Mower

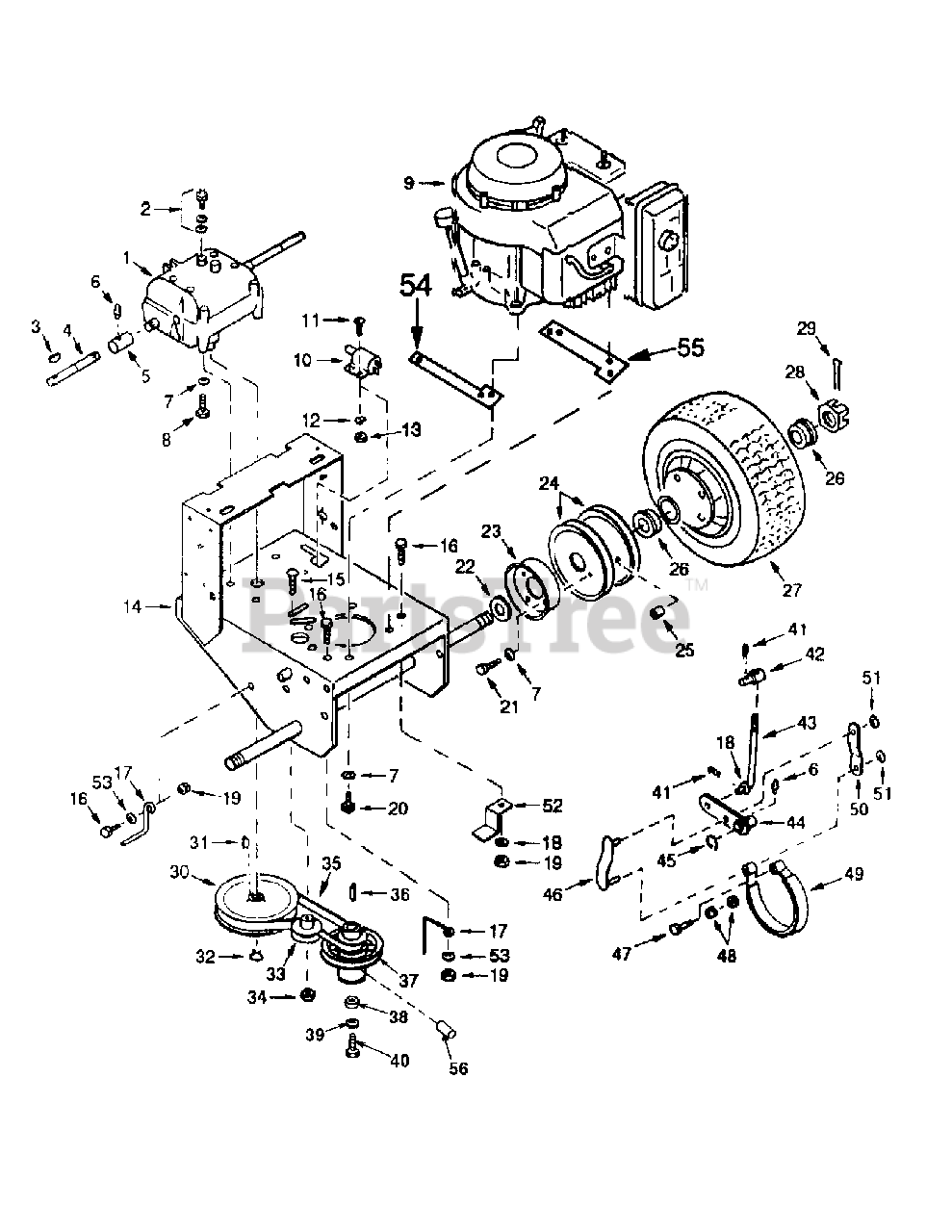

Engine Deck Parts Diagram

  • Title

1

MTD 01000152P

Transmission

$1084.99

$

Usually ships in 3-6 days

0

2

MTD 00018329

Neutral Safety Switch

$107.99

$

Usually ships in 3-6 days

0

3

MTD 914-0868

Woodruff Key

$3.99

$

In Stock, only 4 left!

0

4

MTD 00030352

Jackshaft

$

$

Not available

5

MTD 00030353

Coupler

$51.99

$

Usually ships in 3-6 days

0

6

MTD 737-04345

Grease Fitting, 1/4-28 Straight

$4.99

$

In Stock, Qty 6

0

7

MTD 00012168

Lock Washer, 5/16

$

$

Not available

7

MTD 00030872

Lock Washer, 3/8 Internal

Note: (Used at Engine Ground Cable Cap Screw.)

$

$

Not available

8

MTD 00013406

Cap Screw, 5/16-18 x 3/4 Hex Hd.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

9

MTD 00035048

Engine, Kawasaki, 14.0 HP

Note: NLA

$

$

Not available

9

MTD 00019443

Engine, Kawasaki, 17.0 HP, Electric Start

Note: NLA

$

$

Currently unavailable

9

MTD 00035022

Engine, Kohler, 14.0 HP

Note: NLA

$

$

Currently unavailable

9

MTD 01000947

Briggs & Stratton

Note: NLA

$

$

Not available

10

MTD 00018324

Blade Safety Switch

$

$

Not available

10

MTD 00012242

Blade Safety Switch, Electric Start Engine
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

11

MTD 00013669

Machine Screw, #10-32 x 1/2 Rd. Hd.

$2.99

$

Usually ships in 3-6 days

0

12

MTD 00014608

Hex nut, 10-32 Nylock
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

13

MTD n/a

(Purchase Locally)

$

$

Currently unavailable

14

MTD 01001026

Engine Deck, 32" Mower

$

$

Not available

14

MTD 01001020

Engine Deck, 36" & 48" Mowers
(Superseded to 01000121-0637)

$

$

Not available

15

MTD 00014270

Carriage Bolt, 3/8-16 x 2
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

16

MTD 01000641

Carriage Bolt, 5/16-18 x 1 Hex Hd.

$3.49

$

Usually ships in 3-6 days

0

17

MTD 01005114

Belt Guide

$13.99

$

Usually ships in 3-6 days

0

18

MTD 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

19

MTD 00012165

Hex Nut, 5/16-18 Nylock

$4.99

$

In Stock, only 1 left!

0

20

MTD 00014542

Cap Screw, M8-1.25TH x 25MM Hex Hd.

Note: NLA

$

$

Not available

21

MTD 00012382

Cap Screw, 5/16-18 x 1-1/2 Hex Hd.

$

$

Not available

22

MTD 00010869

Flat Washer, 1"

$

$

Not available

23

MTD 00021980

Brake Drum

$45.99

$

Usually ships in 3-6 days

0

24

MTD 00021979

Drive Pulley

$48.99

$

In Stock, only 4 left!

0

25

MTD 00021941

Spacer

$

$

Not available

26

MTD 941-3002

Wheel Bearing

$35.99

$

In Stock, Qty 15

0

27

MTD 00030757

Tire and Wheel Ass'y., 32" Mower

$

$

Not available

27

MTD 00021983

Tire and Wheel Ass'y., 36", 48" & 52" Mowers

$221.99

$

Usually ships in 3-6 days

0

28

MTD 00021984

Axel Nut, 1-14 Slotted Hex Hd.

$

$

Not available

29

MTD 00012380

Cotter Pin, 5/32 x 1-1/2

$

$

Not available

30

MTD 01000073

Drive Pulley

$

$

Not available

31

MTD n/a

(Purchase Locally)

$

$

Currently unavailable

32

MTD 00021964

Retaining Ring, External

$

$

Not available

33

MTD 02004558

Idler, Take-Up

$22.99

$

In Stock, only 2 left!

0

34

MTD 712-04065

Hex Nut, 3/8-16 Nylock

$3.99

$

In Stock, Qty 20+

0

35

MTD 01000194

Drive Belt
(Superseded to 01000194P)

$54.99

$

In Stock, only 1 left!

0

36

MTD 00021517

Key, 1/4 x 1/4 x 2-1/2

$8.99

$

In Stock, only 1 left!

0

37

MTD 01000164

Pulley, Traction Drive

$

$

Not available

38

MTD 00013675

Clutch Plated Washer

$9.49

$

Usually ships in 3-6 days

0

39

MTD 00012195

7/16 Lock Washer

$

$

Not available

39

MTD 00012062

M10 Lock Washer

$

$

Not available

40

MTD 01001082

7/16 Bolt

$6.99

$

Usually ships in 3-6 days

0

40

MTD 01000905

M10 x 50mm

Note: NLA

$

$

Not available

41

MTD 00021956

Hairpin, 3/8-7/16
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

42

MTD 00021943

Swivel Joint

$20.99

$

In Stock, only 1 left!

0

43

MTD 00021930

Brake Rod

$

$

Not available

44

MTD 00021900

Brake Lever

$

$

Not available

45

MTD 00021962

E-Ring, 5/8

$

$

Not available

46

MTD 00021933

Brake Link w/Pins

$54.99

$

Usually ships in 3-6 days

0

47

MTD 00002528

Cap Screw, 3/8-16 x 2 Hex Hd.

$6.99

$

In Stock, Qty 7

0

48

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

49

MTD 761-04077

Brake Band

$92.99

$

Usually ships in 3-6 days

0

50

MTD 00067444

Brake Link

$

$

Not available

51

MTD 00021960

Retainer, 3/8 Push-On

$5.99

$

Usually ships in 3-6 days

0

52

MTD 01003146-0637

Belt Guide

$

$

Not available

53

MTD 00083192

Flat Washer, 3/8, Thick
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

54

MTD 00030439

Engine Spacer, Right Hand

$

$

Not available

55

MTD 00030441

Engine Spacer, Left Hand

$

$

Not available

56

MTD 00012492

Engine Pulley Spacer

$

$

Not available

57

MTD 737-3004

Grease Fitting, 90° 1/4-28

$11.99

$

In Stock, Qty 6

0

58

MTD 00006168

Washer, Flat 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

59

MTD 00031081

Support Clamp 1/2

$6.49

$

Usually ships in 3-6 days

0
