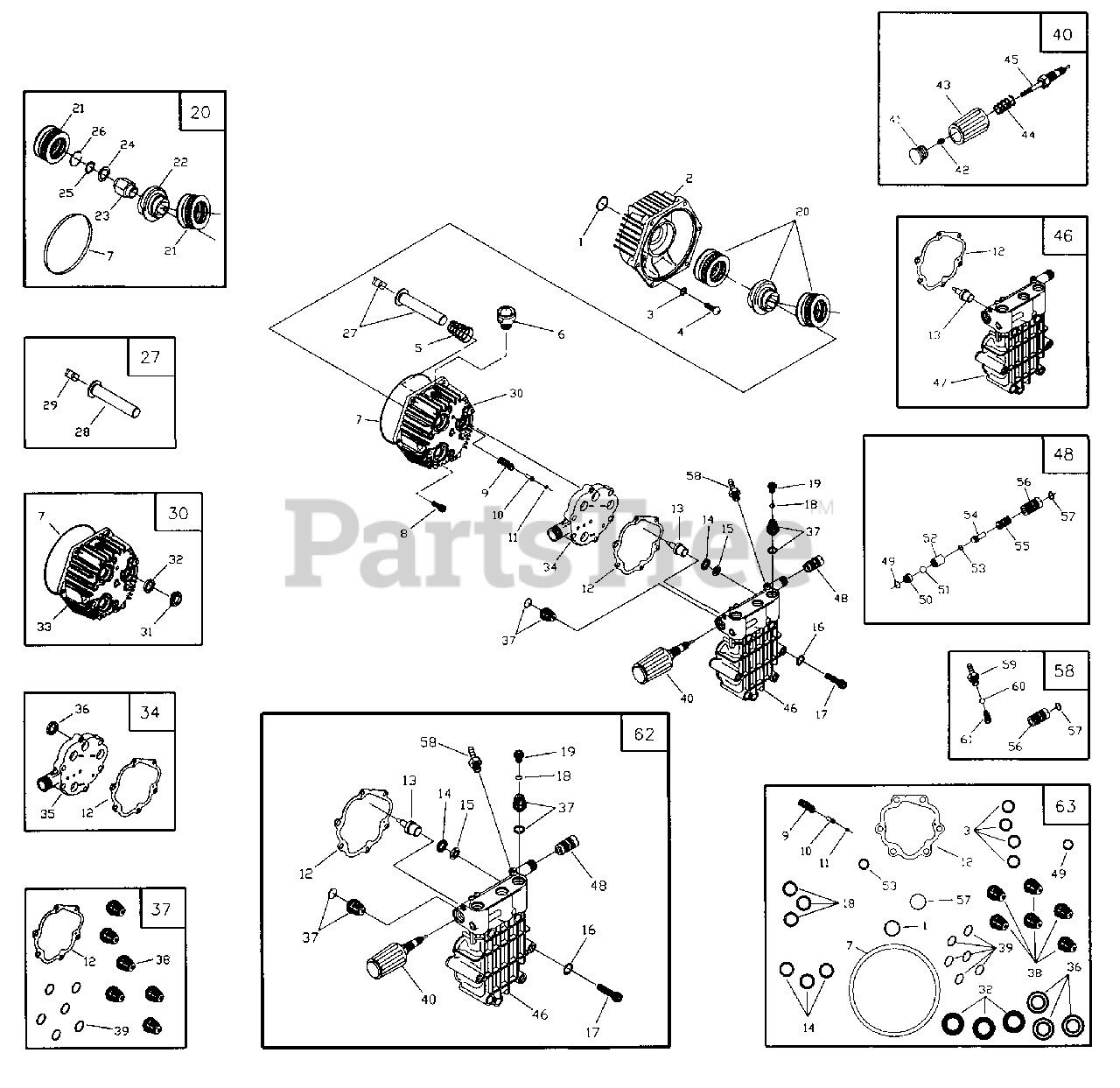

1331-0 - Generac 2,250 PSI Pressure Washer Pump Parts Diagram

2,250 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton B2218

O-RING, 1.625 I.D. x .103
(Superseded to B2218GS)

$3.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton B2260

ADAPTER, Engine
(Superseded to B2260GS)

$34.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B2217

O-RING, 0.239 ID x 0.070
(Superseded to B2217GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B2261B

SCREW, Button Hd 5/16 - 24 x 3/4" Lg
(Superseded to B2261BGS)

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 96400

SPRING, Piston Return
(Superseded to 96400GS)

$

$

Not available

6

Briggs & Stratton 99735

ASSEMBLY, Oil Breather
(Superseded to 99735GS)

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 93790

O-RING, 114 x 119 x 2.6
(Superseded to 93790GS)

$6.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 40945

SHCS, M6 x 1.0 x 20mm Lg
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 93652

SPRING, Thermal By-Pass
(Superseded to 93652GS)

$6.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 95416

PISTON, Thermal By-Pass
(Superseded to 95416GS)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93876

O-RING, 2.9 x 6.5 x 1.78
(Superseded to 690312)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton A2069

GASKET, Head
(Superseded to A2069GS)

$4.99

$

In Stock, Qty 10

0

13

Briggs & Stratton 93644

ACTUATOR, Thermal By-Pass
(Superseded to 93644GS)

$24.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 96053

SEAL, High Pressure
(Superseded to 96053GS)

$

$

Not available

15

Briggs & Stratton 96015

RING, Bearing
(Superseded to 96015GS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B2665

WASHER, Steel Special
(Superseded to B2665GS)

$3.49

$

In Stock, only 4 left!

0

17

Briggs & Stratton A2013

BOLT, Head M8 x 1.25 x 70mm Lg
(Superseded to A2013GS)

$5.99

$

In Stock, Qty 5

0

18

Briggs & Stratton 97840

O-RING, Cap 15.6 x 19.16 x 1.78
(Superseded to 97840GS)

$5.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 97841

CAP, Outlet Port
(Superseded to 97841GS)

$

$

Not available

20

Briggs & Stratton B4263

KIT, Axial Cam 3/4" - 6.0 Lift
(Superseded to B4263GS)

Note: (Service Kit Includes Items 21 - 26)

$186.99

$

Usually ships in 2-12 days

0

21

BEARING SET, Thrust 15.5

$

$

Not available

22

CAM, Axial 6.0 Lift

$

$

Not available

23

ADAPTER, Engine

$

$

Not available

24

WASHER, Thrust

$

$

Not available

25

RETAINER, Push - On

$

$

Not available

26

C-RING, Cam Retainer

$

$

Not available

27

Briggs & Stratton B3478

KIT, Piston/Shoe
(Superseded to B3478GS)

Note: (Service Kit Includes Items 28 & 29)

$37.99

$

Usually ships in 2-12 days

0

28

ASSY., Ceramic Piston & Cap

$

$

Not available

29

SHOE, Piston Pivot

$

$

Not available

30

Briggs & Stratton B3508

KIT, Crankcase
(Superseded to B3508GS)

Note: (Service Kit Includes Items 31 - 33)

$

$

Not available

31

SPACER, Pilot

$

$

Not available

32

SEAL, Oil Piston

$

$

Not available

33

CRANKCASE, Pump

$

$

Not available

34

Briggs & Stratton B3509

KIT, Spacer Plate
(Superseded to B3509GS)

Note: (Service Kit Includes Items 35 & 36)

$95.99

$

Usually ships in 2-12 days

0

35

SPACER, Inlet Plate

$

$

Not available

36

SEAL, High Pressure Dbl. Lip

$

$

Not available

37

Briggs & Stratton B3513

Kit, Check Valve
(Superseded to B3513GS)

Note: (Service Kit Includes Items 38 & 39)

$

$

Not available

38

ASSY., Check Valve

$

$

Not available

39

O-RING, Check Valve 12.4 x 15.56 x 1.78

$

$

Not available

40

Briggs & Stratton B3479

KIT, Unloader Spindle
(Superseded to B3479GS)

Note: (Service Kit Includes Items 41 - 45)

$50.99

$

Usually ships in 2-12 days

0

41

CAP, Plastic

$

$

Not available

42

SET SCREW, M6 x 8 Lg

$

$

Not available

43

HANDLE, Unloader

$

$

Not available

44

SPRING, Unloader

$

$

Not available

45

ASSY., Spindle

$

$

Not available

46

Briggs & Stratton B3507

KIT, Head

Note: (Service Kit Includes Item 47)

$

$

Currently unavailable

47

ASSY., Pump Head (Med. Frame)

$

$

Not available

48

Briggs & Stratton B3510

KIT, High Pressure Outlet
(Superseded to B3510GS)

Note: (Service Kit Includes Items 49 - 57)

$39.99

$

In Stock, only 1 left!

0

49

O-RING, Spindle 6 x 10 x 1.78

$

$

Not available

50

SEAT, Ball Unloader

$

$

Not available

51

BALL, Stainless Steel 9/32 Dia.

$

$

Not available

52

SEAT, Trapped Line Pressure

$

$

Not available

53

O-RING, 3.68 x 7.24 x 1.78

$

$

Not available

54

VALVE, Shuttle Piston

$

$

Not available

55

SPRING, Piston Trapped Pressure

$

$

Not available

56

VENTURI, Chemical

$

$

Not available

57

O-RING, Venturi 10.82 x 14.38 x 1.78

$

$

Not available

58

Briggs & Stratton B3829

ASSY., Chemical Injector
(Superseded to B3829GS)

Note: (Service Kit Includes Items 59 - 61)

$

$

Not available

59

BARB HOSE, Brass with Nylon Insert

$

$

Not available

60

BALL, 5.5 dia. Chemical Injector

$

$

Not available

61

SPRING, Chemical Injector

$

$

Not available

62

Briggs & Stratton B3480

KIT, Complete Head

Note: (Service Kit Includes Items 12-19, 37, 40, 46, 48 & 58)

$

$

Currently unavailable

63

Briggs & Stratton B3514

KIT, O-Ring/Seals
(Superseded to B3514GS)

Note: (Service Kit Includes Items 1, 3, 7, 9 - 12, 14, 18, 32, 36, 38, 39, 49, 53 & 57)

$141.99

$

Usually ships in 2-12 days

0
