1330 SBE XP (961930019-03) - Husqvarna 30" Snow Blower (2007-11) Handles Parts Diagram

30" Snow Blower

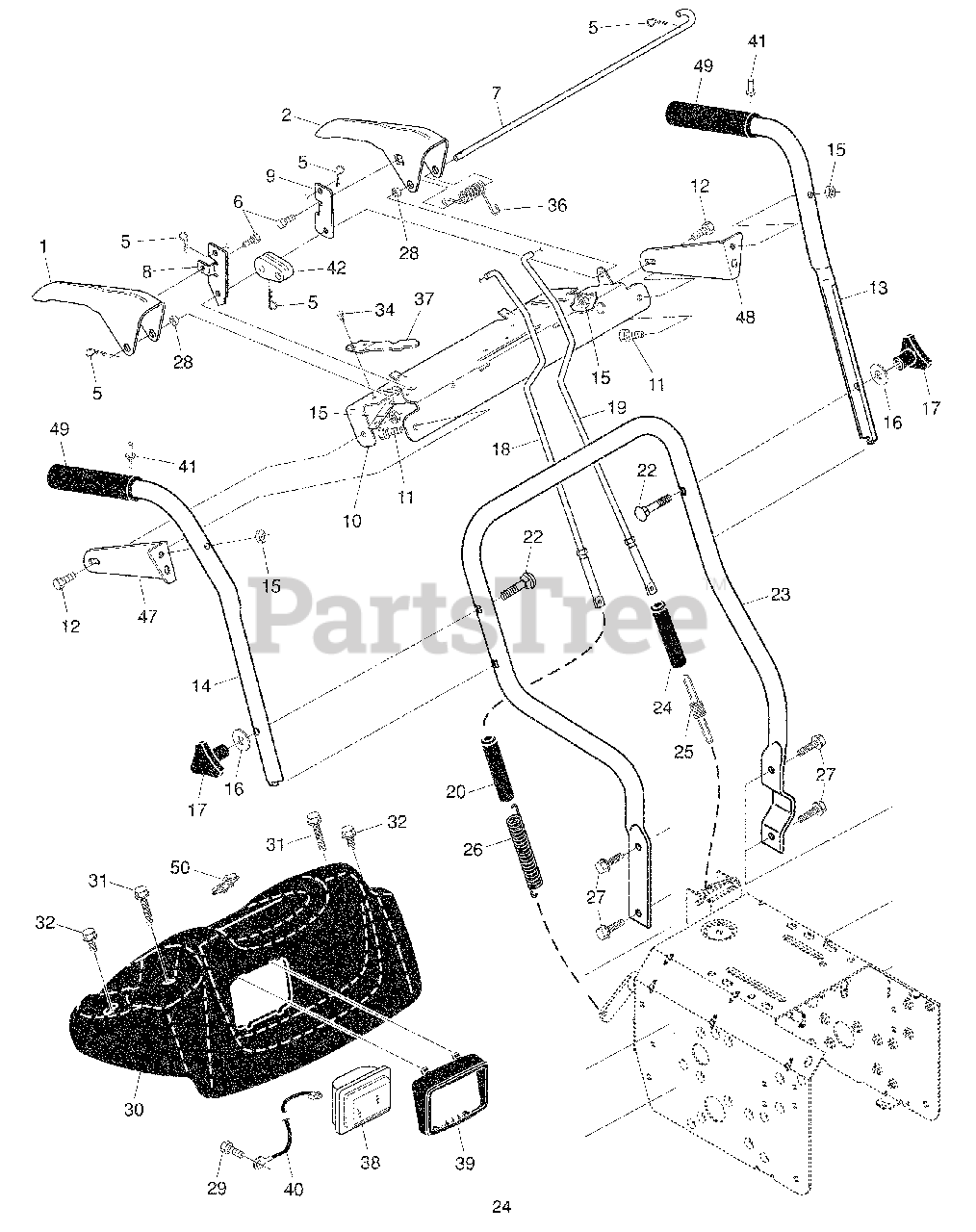

Handles Parts Diagram

  • Title

1

Husqvarna 532415542

Lever, Auger Control, RH
(Superseded to 580687702)

$22.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532415541

Lever, Traction Drive Control, LH
(Superseded to 580687802)

$28.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532169675

Retainer, Hairpin

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 817060408

Screw, Hex Head

$5.99

$

In Stock, only 2 left!

0

8

Husqvarna 532199576

Arm, Impeller Rod
(Superseded to 532429098)

$

$

Not available

9

Husqvarna 532415546

Arm, Traction Rod

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532415539

Panel, Control
(Superseded to 585198802)

$27.99

$

Usually ships in 3-10 days

0

11

Husqvarna 874780524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 539976935)

$

$

Not available

12

Husqvarna 874780512

Screw, Hex Head 5/16-18 x 1-3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532415236

Handle Tube, LH
(Superseded to 532414517)

$54.99

$

In Stock, only 1 left!

0

14

Husqvarna 532415237

Handle Tube, RH
(Superseded to 532414516)

$60.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532751153

Nut, Lock 5/16-18

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 819131316

Washer, Flat 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532178899

Knob, Handle

$8.99

$

In Stock, only 2 left!

0

18

Husqvarna 532193447

Rod, Auger Control

$40.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532180485

Rod, Traction Control

$27.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532180447

Sleeve, Auger Control Spring

$6.99

$

In Stock, only 2 left!

0

22

Husqvarna 872120618

Bolt, Carriage 3/8-16 x 2-1/4

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532184087

Handle Tube, Lower

$

$

Not available

24

Husqvarna 532192091

Sleeve, Traction Drive Spring

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532180926

Spring, Traction Drive

$7.49

$

In Stock, only 4 left!

0

26

Husqvarna 532178669

Spring, Auger Control

$9.49

$

In Stock, only 4 left!

0

27

Husqvarna 817000616

Screw, Hex Head 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

28

Husqvarna 532412680

Spacer

$

$

Not available

29

Husqvarna 532408059

Screw, Grounding

$

$

Not available

30

Husqvarna 532405879

Console, Panel

$28.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532175262

Screw, Hex Head, Tapping #10-24 x 1-1/4

$7.49

$

In Stock, only 1 left!

0

32

Husqvarna 532184471

Screw, Hex Head, Tapping #10-24 x 1/2

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 817060410

Screw, Hi-Lo Thread, Semi-Gimlett Point 1/4-20 x 5/8

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532178831

Spring, Torsion
(Superseded to 532443215)

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 532416288

Spring, Interlock
(Superseded to 532412675)

$

$

Not available

38

Husqvarna 532178666

Headlight, Halogen

Note: (Includes Bulb)

$250.99

$

Usually ships in 3-10 days

0

Husqvarna 532401620

Bulb, Halogen

$80.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532178668

Bezel, Headlight

$7.49

$

In Stock, Qty 5

0

40

Husqvarna 532405699

Harness, Headlight

Note: (Halogen)

$42.99

$

In Stock, only 1 left!

0

41

Husqvarna 532178775

Pop Rivet

$7.99

$

In Stock, only 1 left!

0

42

Husqvarna 532414572

Cam, Interlock
(Superseded to 532445291)

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532196943

Mounting Bracket, Handle, RH
(Superseded to 532429149)

$4.99

$

In Stock, only 1 left!

0

48

Husqvarna 532196944

Mounting Bracket, Handle, LH
(Superseded to 532429148)

$

$

Not available

49

Husqvarna 532414515

Grip, Handle, Heated

$91.99

$

In Stock, only 1 left!

0

50

Husqvarna 532405781

Switch, Heated Handle Grips

$18.99

$

Usually ships in 3-10 days

0
