1330 SBE XP (961930019-03) - Husqvarna 30" Snow Blower (2007-11) Drive Parts Diagram

30" Snow Blower

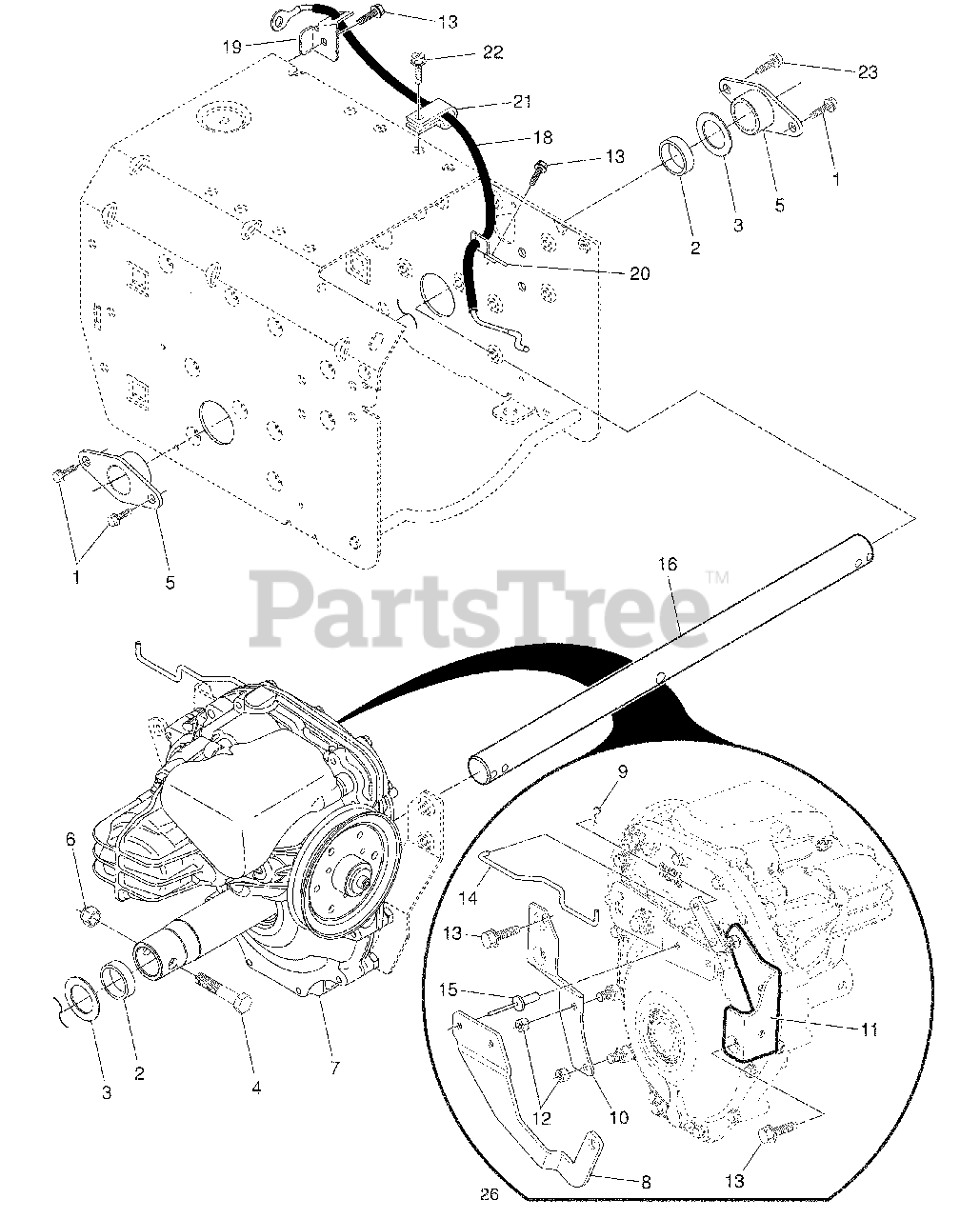

Drive Parts Diagram

  • Title
1

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532187794

Spacer, Axle

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532174697

Washer, Thrust
(Superseded to 532007396)

$

$

Not available

4

Husqvarna 874780632

Screw, Cap, Hex Head 3/8-16 x 2
(Superseded to 583614701)

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532179830

Bearing, Axle

$24.99

$

In Stock, only 2 left!

0

6

Husqvarna 873930600

Nut, Hex, Centerlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532187776

Transmission Assembly

$1092.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532187787

Speed Control Arm, Hydro

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532700279

Retainer Clip

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532188101

Torque Strap
(Superseded to 532414771)

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532407858

Bracket, Anti-Rotate
(Superseded to 532436754)

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 873800400

Nut, Hex, Nylock 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 532150078

Screw, Hex Washer Head 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532193256

Rod, Bypass Valve

$10.99

$

Usually ships in 3-10 days

0

15

$2.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532404308

Shaft, Axle

$79.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532198466

Cable, Drive Control

$

$

Not available

19

Husqvarna 532192000

Bracket, Cable, Rear

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532191993

Bracket, Cable, Front

$

$

Not available

21

Husqvarna 532087930

Clip, Cable

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 817391208

Screw, Slotted Hex Head 1/8 x 1/2

$

$

Not available

$10.99

$

Usually ships in 3-10 days

0
