1330 SBE XP (961930019-03) - Husqvarna 30" Snow Blower (2007-11) Chassis / Engine / Pulleys Parts Diagram

30" Snow Blower

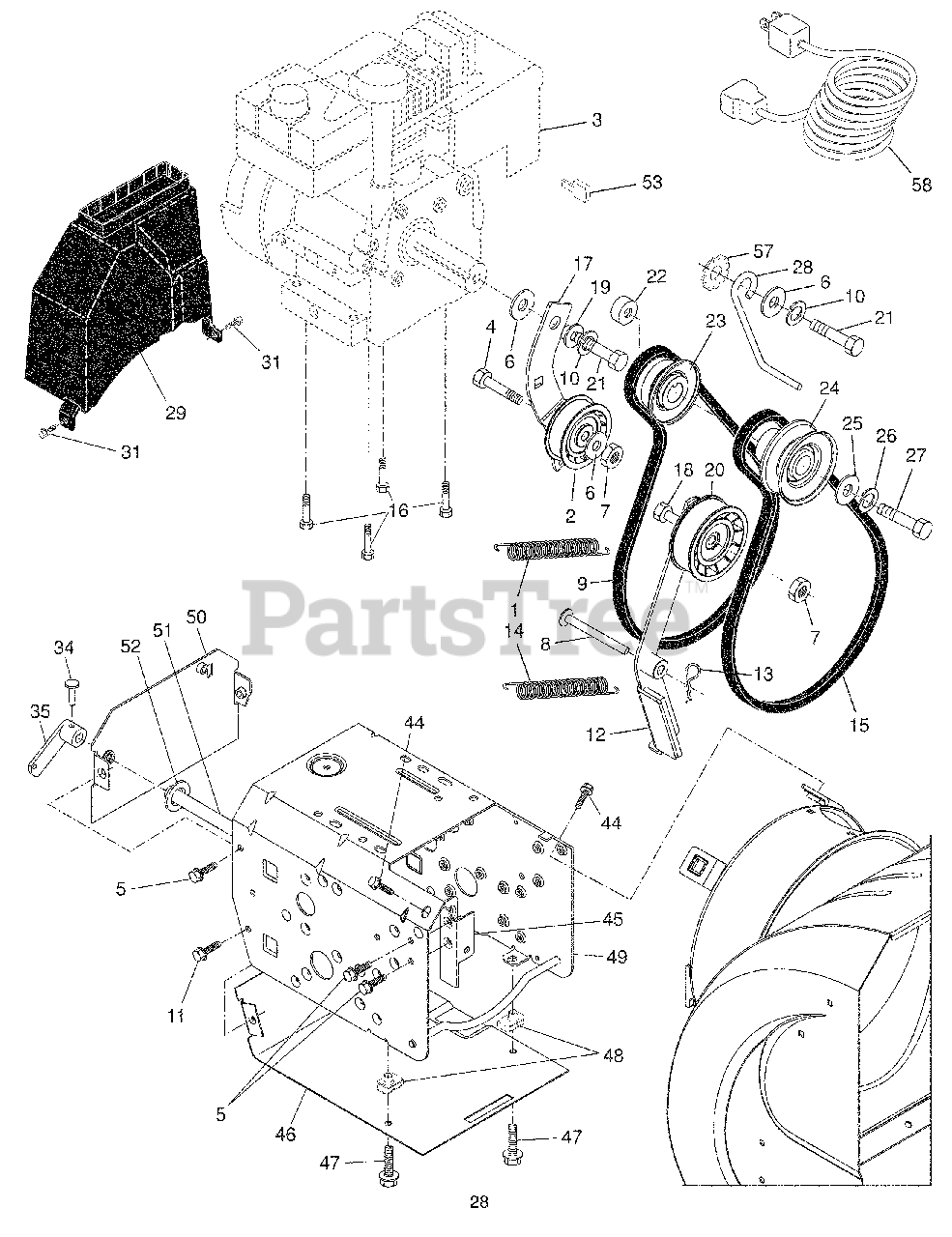

Chassis / Engine / Pulleys Parts Diagram

  • Title

1

Husqvarna 532192873

Spring, Traction Idler

$4.99

$

In Stock, only 4 left!

0

2

Husqvarna 532180522

Pulley, Idler (2-1/4)

$31.99

$

Usually ships in 3-10 days

0

3

Engine, Tecumseh, Model Number OH358SA (For engine service and replacement parts, call, Tecumseh Products at 1-800-558-5402)

$

$

Not available

4

Husqvarna 874780520

Screw, Hex Head 5/16-18 x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532150078

Screw, Hex Washer Head 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532059289

Washer, Flat

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 532166785

Nut, Jam, Lock 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

8

Husqvarna 532175330

Pin, Idler Pivot

$5.99

$

In Stock, Qty 18

0

9

Husqvarna 532405029

V-Belt, Traction Drive

$34.99

$

In Stock, only 1 left!

0

10

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

11

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532410420

Idler Arm / Brake Pad Assembly
(Superseded to 532422111)

$15.99

$

In Stock, only 1 left!

0

13

Husqvarna 532085179

Retainer, Hairpin

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532178828

Spring, Brake

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 532403842

V-Belt, Impeller Drive

$48.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532150406

Screw, Hex Head 3/8-16 x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532187786

Arm, Idler
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

18

Husqvarna 874780524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 539976935)

$

$

Not available

19

Husqvarna 532175331

Bushing, Idler Pivot
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532180523

Pulley, Idler (2-3/4)

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874610516

Screw, Hex Head 5/16-18 x 1

$4.99

$

In Stock, only 3 left!

0

22

Husqvarna 532409475

Spacer, Engine Pulley

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532180478

Pulley, Engine, Traction Drive
(Superseded to 595926601)

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532178813

Pulley, Engine, Impeller Drive
(Superseded to 532426492)

$

$

Not available

25

Husqvarna 532400026

Washer, Flat 3/8

$9.49

$

In Stock, only 3 left!

0

26

Husqvarna 532850263

Washer, Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

27

Husqvarna 532851084

Screw, Hex Head 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532193607

Guide, Belt

$14.99

$

In Stock, only 1 left!

0

29

Husqvarna 532409161

Belt Cover Assembly

$

$

Not available

31

Husqvarna 817490408

Screw, Hex Head 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532198580

Clevis Pin

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532405484

Arm, Auger Control

$9.99

$

Usually ships in 3-10 days

0

44

Husqvarna 817000616

Screw, Hex Head

$7.49

$

In Stock, only 3 left!

0

45

Husqvarna 532407849

Bracket, Pivot, Idler

$

$

Not available

46

Husqvarna 532403732

Pan, Frame Bottom
(Superseded to 532410877)

$31.99

$

In Stock, only 2 left!

0

47

Husqvarna 532184471

Screw, Hex Head 5/16-18 x 3/4

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 873930500

Locknut, Hex

$7.49

$

In Stock, only 1 left!

0

49

Husqvarna 532415307

Frame Assembly

$47.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532407868

Plate, Frame End

$17.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532406109

Shaft, Auger Control
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

52

Husqvarna 532057079

Washer, Hardened

$6.49

$

In Stock, Qty 10

0

53

Husqvarna 532035062

Key, Safety
(Superseded to 531300340)

$

$

Not available

57

Husqvarna 811050500

Washer, Lock, External Tooth 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 2 left!

0

58

Husqvarna 532198563

Power Cord

$24.99

$

In Stock, only 2 left!

0
