1330 SBE XP (961930019-00) - Husqvarna 30" Snow Blower (2006-08) Control Panel / Discharge Chute Parts Diagram

30" Snow Blower

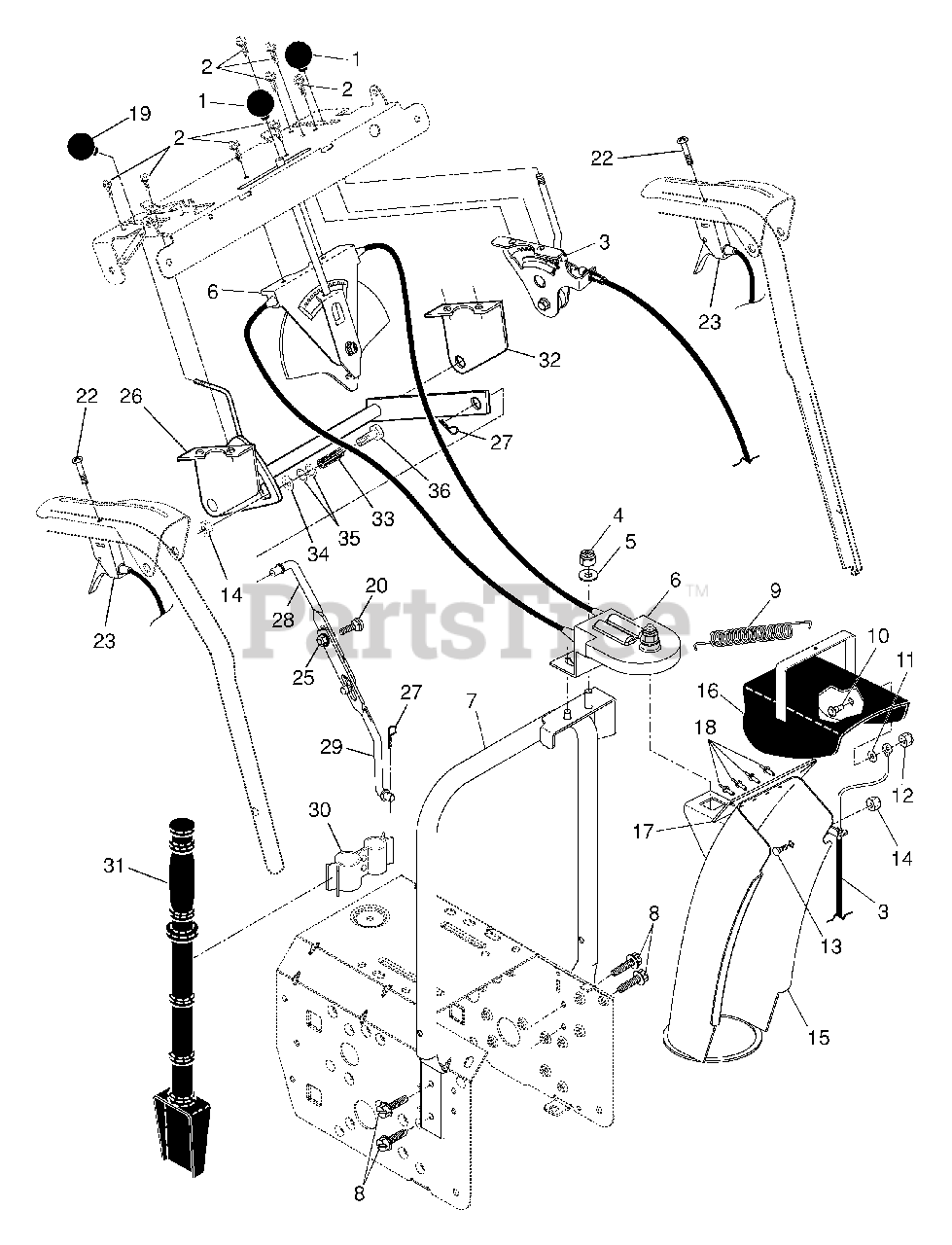

Control Panel / Discharge Chute Parts Diagram

  • Title

1

Husqvarna 532183334

Knob, Lever
(Superseded to 532414280)

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817501010

Screw #10-24 x 5/8

$

$

Not available

3

Husqvarna 532198475

Control Assembly, Deflector
(Superseded to 587030801)

$80.99

$

In Stock, only 1 left!

0

4

Husqvarna 873800600

Nut, Lock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 819131316

Washer, Flat 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532404974

Control Assembly, Chute Rotater
(Superseded to 532428272)

$182.99

$

In Stock, only 2 left!

0

7

Husqvarna 532407643

Support, Pivot
(Superseded to 532443617)

$

$

Not available

8

Husqvarna 532150078

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532184505

Spring, Deflector

$7.99

$

In Stock, Qty 8

0

10

Husqvarna 532179829

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

11

Husqvarna 532179246

Washer, Friction, Nylon

$7.49

$

In Stock, Qty 6

0

12

Husqvarna 532191730

Nut, Lock 1/4-20

$7.49

$

In Stock, Qty 5

0

13

Husqvarna 872250505

Bolt, Carriage 5/16-18
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532751153

Nut, Hex

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 532407650

Chute Assembly
(Superseded to 588077802)

$120.99

$

In Stock, only 1 left!

0

16

Husqvarna 532184113

Deflector Assembly
(Superseded to 588077802)

$120.99

$

In Stock, only 1 left!

0

17

Husqvarna 532179145

Seal, Deflector
(Superseded to 532420325)

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532128415

Rivet, Blind

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532183333

Knob, Speed Control Lever
(Superseded to 532414281)

$22.99

$

In Stock, only 1 left!

0

20

Husqvarna 872270506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 874041024

Screw #10-24 x 1-1/2

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192449

Control Assembly, Power Steering
(Superseded to 532421249)

$44.99

$

In Stock, Qty 7

0

25

Husqvarna 532198541

Nut, Hex, Flangelock 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532192001

Lever Assembly, Speed Control

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532169675

Retainer, Hairpin

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 532187782

Rod, Upper, Speed Control

$24.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532187784

Rod, Lower, Speed Control

$14.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532192710

Clamp, Mounting, Clean-Out Tool

$10.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532192199

Tool, Clean-Out

$34.99

$

In Stock, only 3 left!

0

32

Husqvarna 532192002

Bracket, Shift
(Superseded to 532443344)

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532192195

Spring

$4.99

$

In Stock, only 1 left!

0

34

Husqvarna 532155415

Washer

$5.99

$

In Stock, only 1 left!

0

35

Husqvarna 532179246

Washer, Friction

$7.49

$

In Stock, Qty 6

0

36

Husqvarna 874760552

Capscrew

$

$

Not available
