1330 SBE OV (961930023-00) - Husqvarna 30" Snow Blower (2008-01) Chassis / Engine / Pulleys Parts Diagram

30" Snow Blower

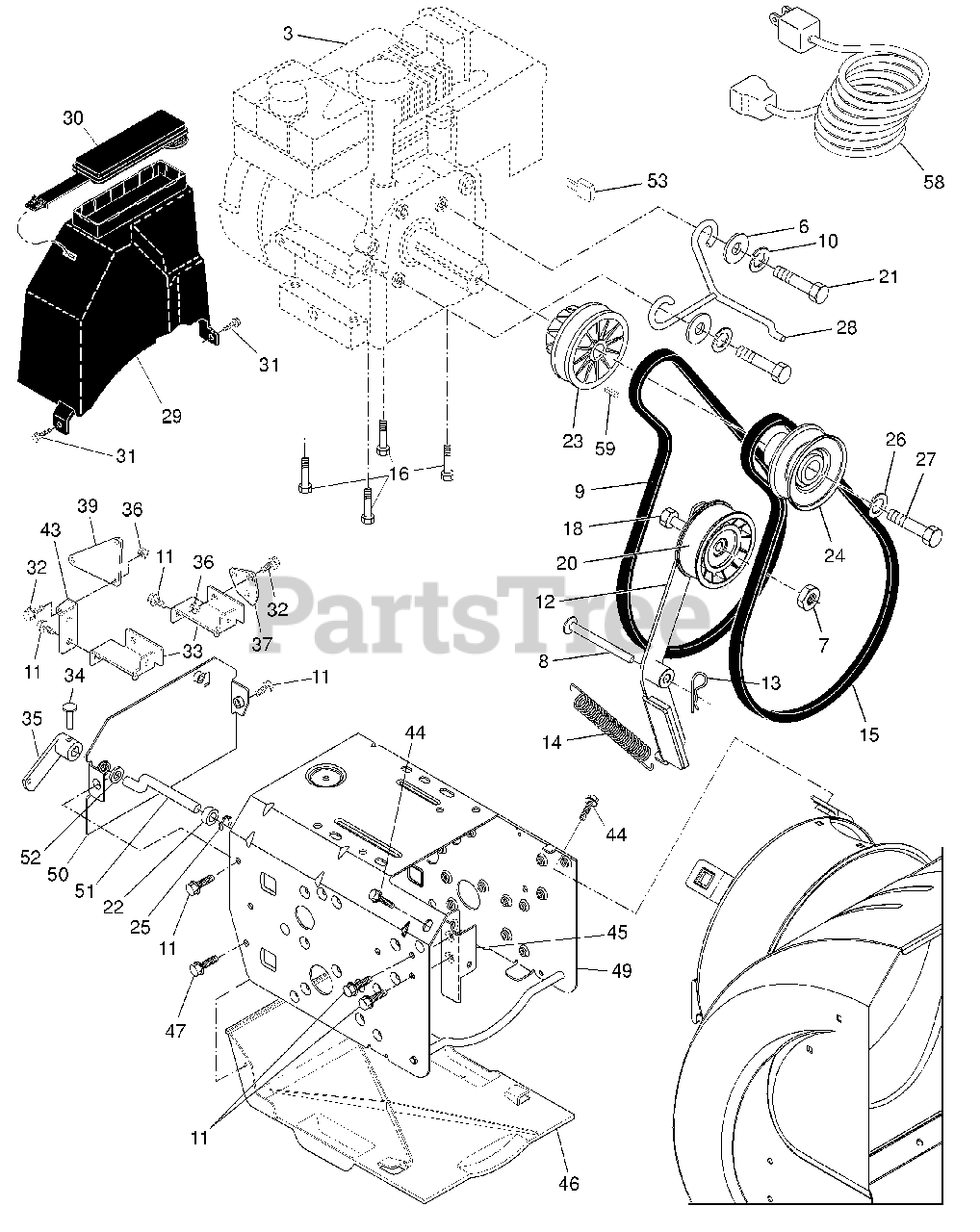

Chassis / Engine / Pulleys Parts Diagram

  • Title

3

Engine, Tecumseh, Model Number OH358SA

Note: (For engine service and replacement parts, call Tecumseh Products at 1-800-558-5402)

$

$

Not available

6

Husqvarna 532155415

Washer, Flat

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 532166785

Nut, Jam, Lock 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

8

Husqvarna 532175330

Pin, Idler Pivot

$5.99

$

In Stock, Qty 18

0

9

Husqvarna 532411931

Belt, Traction Variator

$66.99

$

Usually ships in 3-10 days

0

10

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

11

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532410420

Idler Arm / Brake Pad Assembly
(Superseded to 532422111)

$15.99

$

In Stock, only 1 left!

0

13

Husqvarna 532085179

Retainer, Hairpin

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532178828

Spring, Brake

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 532403842

V-Belt, Impeller Drive

$48.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532150406

Screw, Hex Head 3/8-16 x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 874780524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 539976935)

$

$

Not available

20

Husqvarna 532180523

Pulley, Idler

Note: (2-3/4)

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874610516

Screw, Hex Head 5/16-18 x 1

$4.99

$

In Stock, only 3 left!

0

22

Husqvarna 532179062

Roller, Actuator

$7.99

$

In Stock, only 2 left!

0

23

Husqvarna 532411212

Pulley, Engine, Variator

$

$

Not available

24

Husqvarna 532411192

Pulley, Engine, Impeller Drive

$23.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532192147

Ring, Crescent

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 532850263

Washer, Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

27

Husqvarna 532191760

Screw, Hex Head 3/8-24 x 1-3/8

$6.49

$

In Stock, only 1 left!

0

28

Husqvarna 532411594

Guide, Belt

$18.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532192213

Belt Cover Assembly
(Superseded to 532443030)

Note: (Includes Toolbox Cover)

$40.99

$

In Stock, only 1 left!

0

30

Husqvarna 532178830

Cover, Toolbox

$

$

Not available

29

Husqvarna 532409161

Belt Cover Assembly

$

$

Not available

31

Husqvarna 817490408

Screw, Hex Head 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532402881

Bolt, Shoulder

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532411211

Bracket, Cable, Rear

$

$

Not available

34

Husqvarna 532198580

Clevis Pin

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532405484

Arm, Auger Control

$9.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532191730

Nut, Hex

$7.49

$

In Stock, Qty 5

0

37

Husqvarna 532415435

Plate, Clutch

$2.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532411210

Plate, Speed, Pivot

$

$

Not available

43

Husqvarna 532414462

Bracket, Speed, Pivot

$

$

Not available

44

Husqvarna 817000616

Screw, Hex Head

$7.49

$

In Stock, only 3 left!

0

45

Husqvarna 532184074

Bracket, Pivot, Idler
(Superseded to 532422762)

$91.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532410877

Pan, Frame Bottom

$31.99

$

In Stock, only 2 left!

0

47

Husqvarna 532184471

Screw, Hex Head 5/16-18 x 3/4

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532417895

Frame Assembly
(Superseded to 532411874)

$

$

Not available

50

Husqvarna 532417690

Plate, Frame End

$13.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532191997

Shaft, Auger Control

$

$

Not available

52

Husqvarna 532057079

Washer, Hardened

$6.49

$

In Stock, Qty 10

0

53

Husqvarna 532189282

Key, Safety

$7.49

$

In Stock, only 1 left!

0

58

Husqvarna 532198563

Power Cord

$24.99

$

In Stock, only 2 left!

0

59

Husqvarna 532198651

Key, Square, Variator Pulley

$

$

Not available
